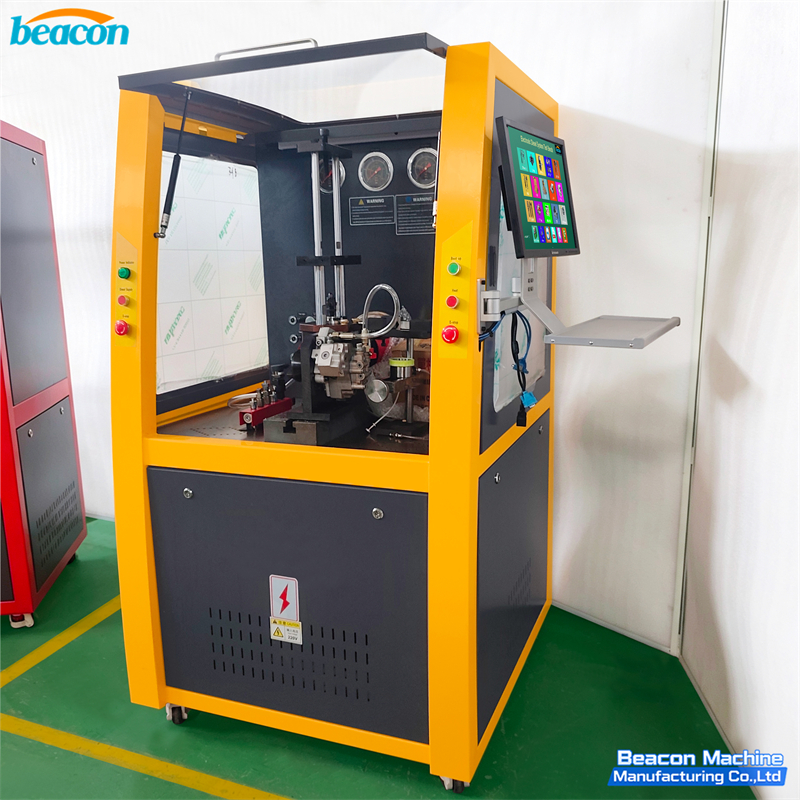

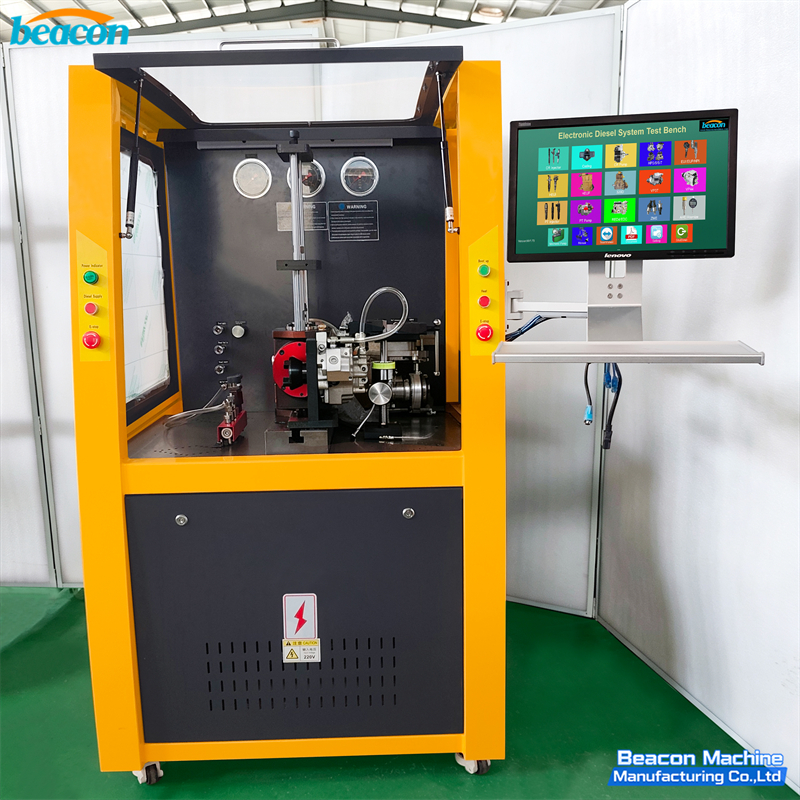

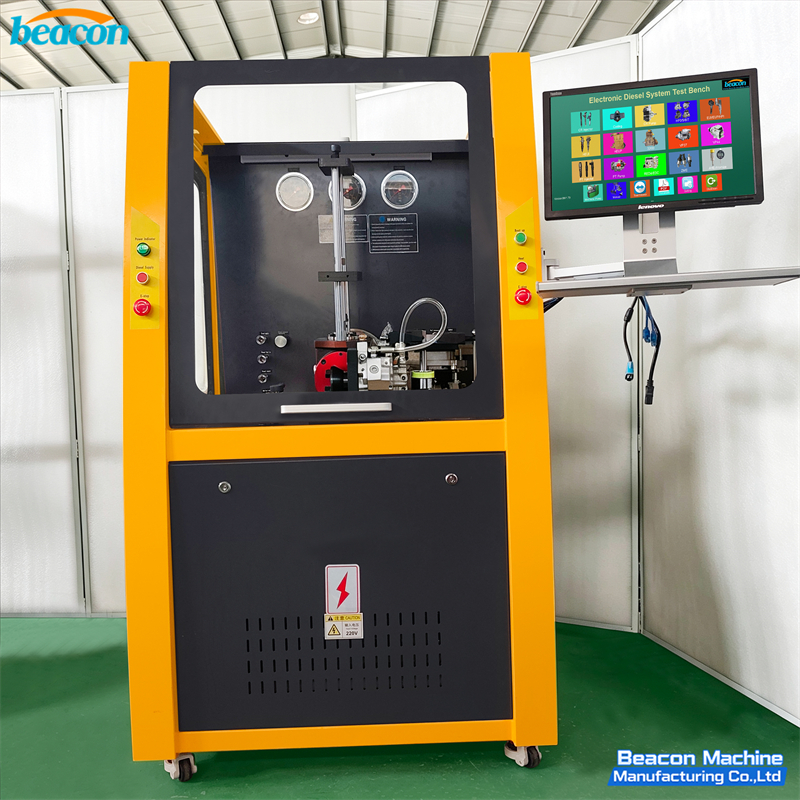

CR1017-PLUS EUI EUP HEUI Test Bench for Mercedes-Benz Actros MP

Product Overview

CR1017-PLUS is an integrated common rail injector and pump test bench for workshop testing of CR solenoid and piezo injectors, CR pumps, Denso HP0/HP5/HP6/HP7 pumps, EUI EUP electronic unit injectors, HEUI hydraulic electronic unit injectors including CAT C7 C9 3126B, HEUP CAT 320D, VP37 VP44 RED4 distribution pumps, PT injectors and pumps, HPI Q60 X15 Cummins, CP4 pumps, and Delphi E3 double pulse injector coding. Standard configuration 7.5KW 380V three phase motor with 45-litre tank and rail pressure range 0-2400 bar.

Features

• Tests CR injectors (7725 part numbers)

• Tests CR pumps with 1821 part numbers database

• Tests Denso HP0 pump with 83 part numbers

• Tests EUI EUP with TU-C/TU-D/TU-E cam box (667 part numbers)

• Tests HEUI dual-circuit with CAT C7 C9 3126B standard adapters

• Tests HEUP CAT 320D pump (9 part numbers)

• Tests PT injector and PT pump, Bosch 4-pin injector, Denso HP5 HP6 HP7

• Tests HPI Q60 X15 Cummins and CP4 pump

• Tests rail pressure sensor, DRV/HPV, solenoid valve

• Tests 2/4/6/8 injectors at the same time

• BIP function and Delphi E3 double pulse control

• Injector coding 4204 part numbers for Bosch Denso Siemens Delphi

• AHE injector dynamic stroke

• ZME test measurement unit

• 15-language software

• Network auto-upgrade

• Printable test report with custom logo

Specification

• Power Supply: 220VAC/380VAC

• Phase: Single Phase/Three Phases

• Power: 7.5KW

• Output Power (CRI): 4KW

• Main Tank Capacity: 45 litres

• Rail Pressure Test Range: 0-2400 bar

• Pump Speed: 0-4000 r/min

• Machine Dimensions: 115*105*192 cm

• Weight: 520 kg (standard), 620 kg with cam box

Package

• 1 x CR1017-PLUS Main Unit

• 1 x ZME Test Measurement Unit

• 1 x Standard Injector Fixture Set

• 1 x High Pressure Pipe Set

• 1 x Software Installation Package

• 1 x User Manual (English)

Advantage

• All-in-one tester for CR injector CR pump EUI EUP HEUI HEUP 320D VP37 VP44 PT

• 7725 CR + 1821 CR + 4204 coding databases

• Standard EUI EUP cam box and HEUI CAT C7 C9 3126B adapters

• 7.5KW motor with 0-2400 bar rail pressure and 45-litre tank

• 15-language software with network auto-upgrade

• Supports simultaneous 2/4/6/8 injector testing

1. Comprehensive Test Coverage - One integrated bench handles CR injectors (Bosch/Denso/Siemens/Delphi), CR pumps (Bosch CP1/CP3/CP4/HP0/HP5), EUI/EUP electronic unit injectors/pumps (Caterpillar 320D, Detroit DD15/DD13), HEUI hydraulically actuated electronic unit injectors (Caterpillar C7/C9/3126B, Navistar DT466/DT530), HEUP CAT 320D pumps, and PT injectors/pumps.

2. Coding Capability - Built-in coding database covers 7725 CR injector part numbers + 1821 CR pump part numbers + 4204 IMA coding references, supports coding for Bosch CR injectors and DENSO G4 injectors without external server.

3. Industrial-Grade Hardware - 7.5KW main motor delivers 0-2400 bar rail pressure, 45-litre fuel tank, pump speed 0-4000 rpm, supports 2/4/6/8 simultaneous injector testing, optional cam box expands EUI/EUP coverage.

4. Standard HEUI Adapter Kit - Includes dedicated adapters for Caterpillar HEUI C7/C9/3126B, plug-and-play without modifications, standard cam box for EUI EUP TU-C/TU-D/TU-E applications.

5. Multilingual Software with Auto-Upgrade - 15-language interface (English/Spanish/Russian/Arabic/Portuguese/French/German/etc), network auto-upgrade capability keeps database current, no manual firmware updates required.

6. Worldwide Compatibility - Compatible with 220VAC single-phase and 380VAC three-phase power supplies, suitable for diesel workshops in Europe/South America/Russia/Middle East/Africa, backed by remote diagnostic support and detailed instruction manual.
