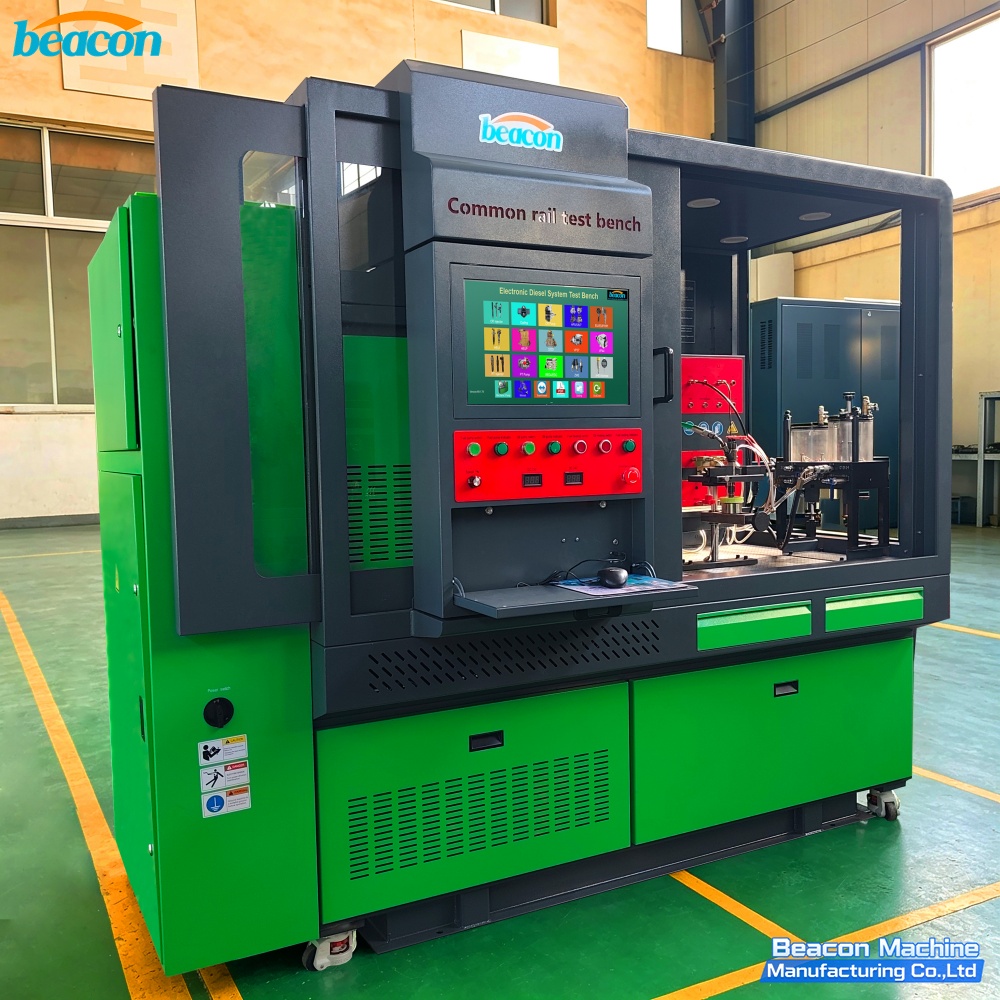

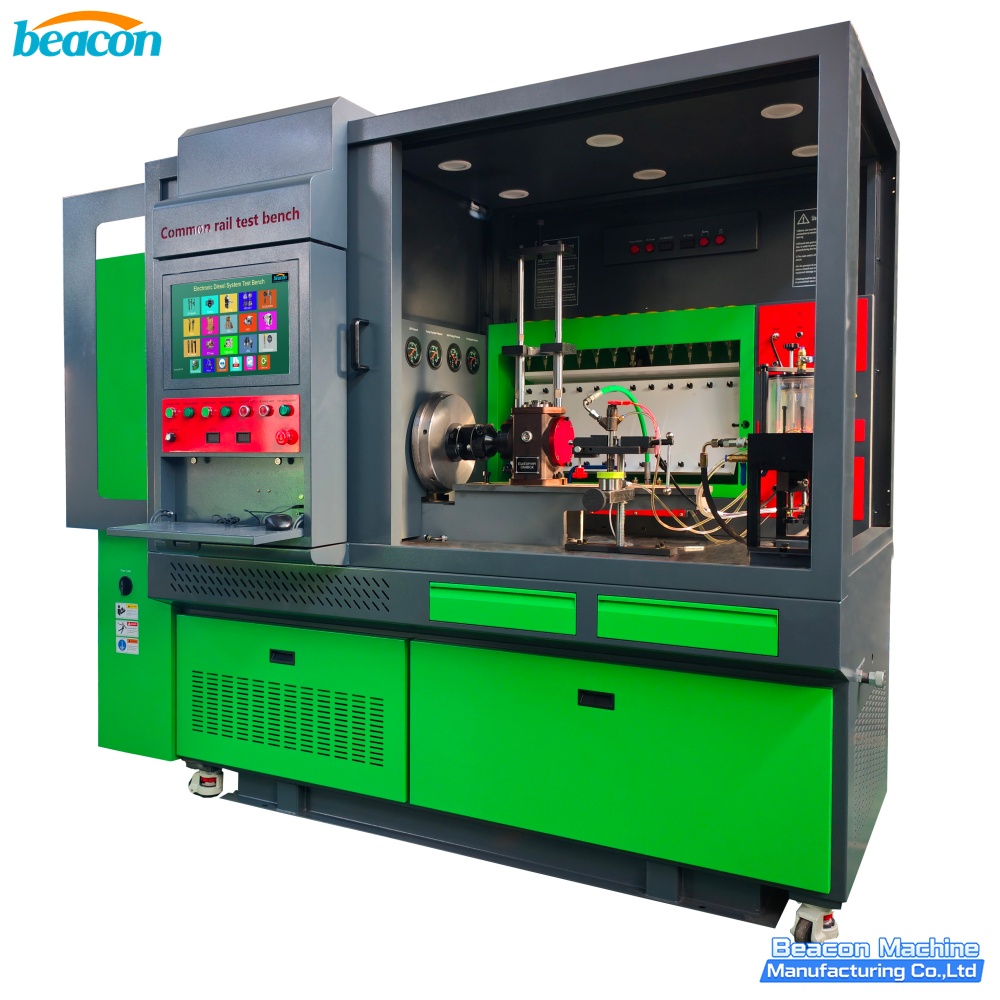

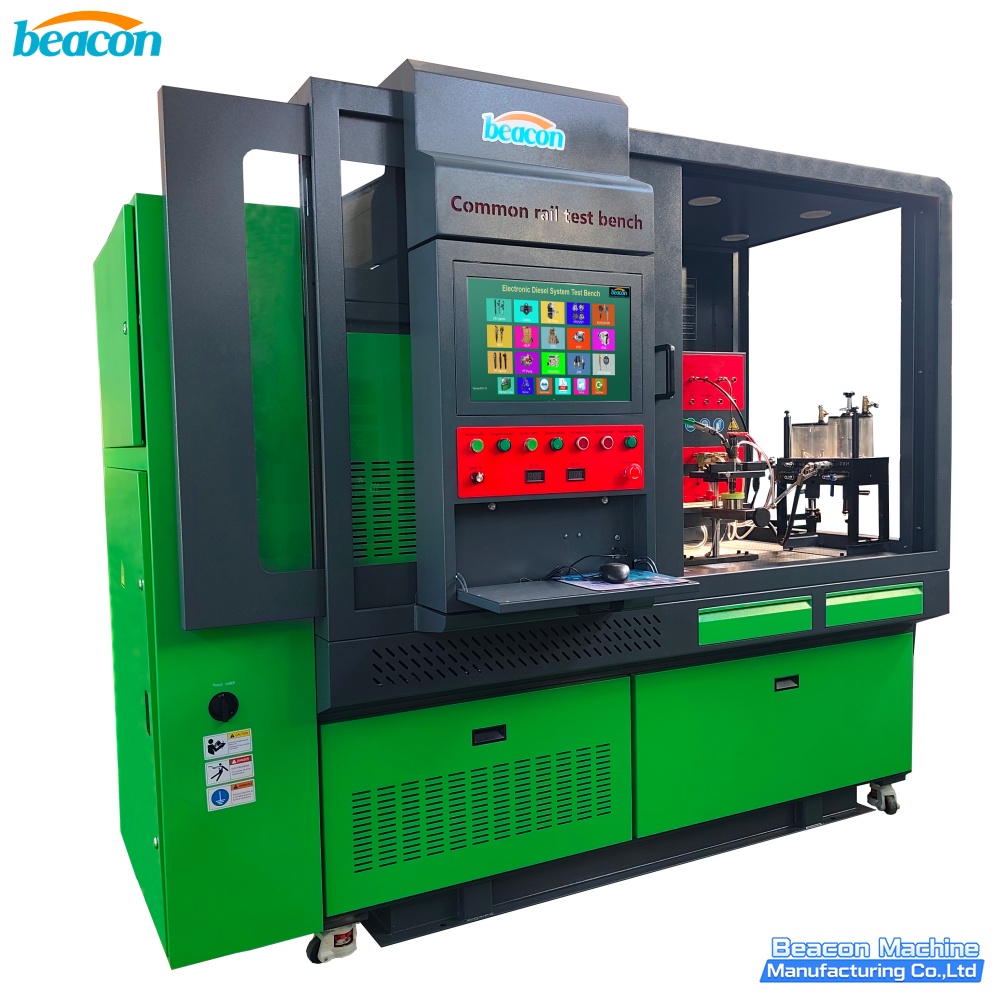

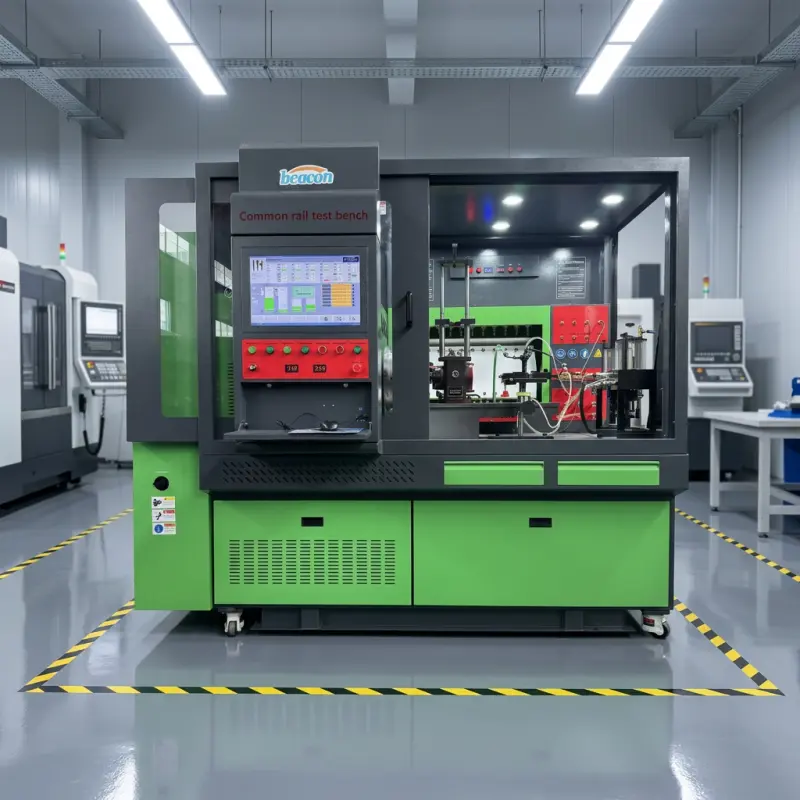

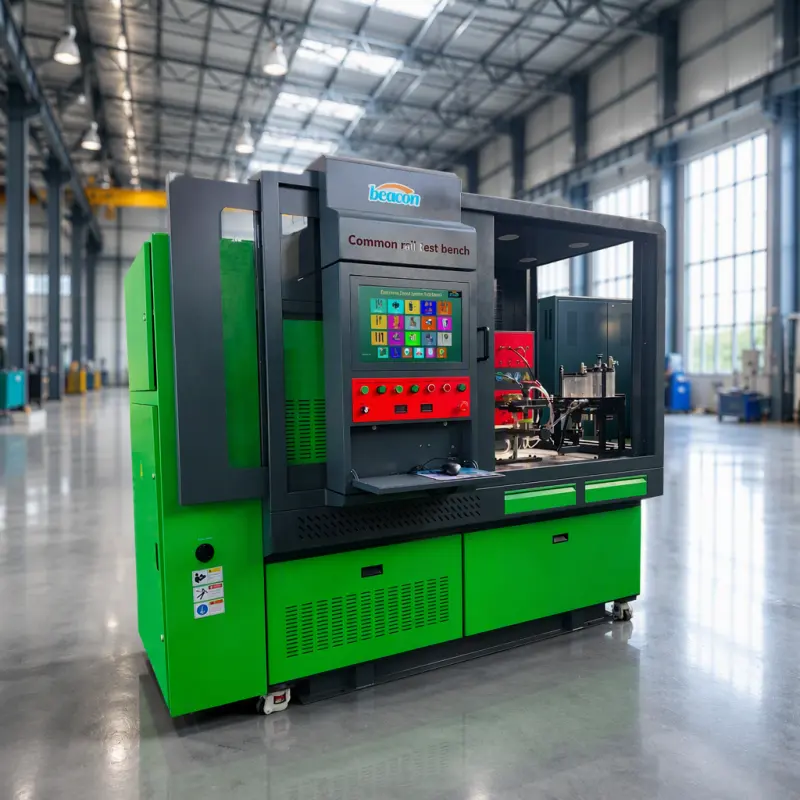

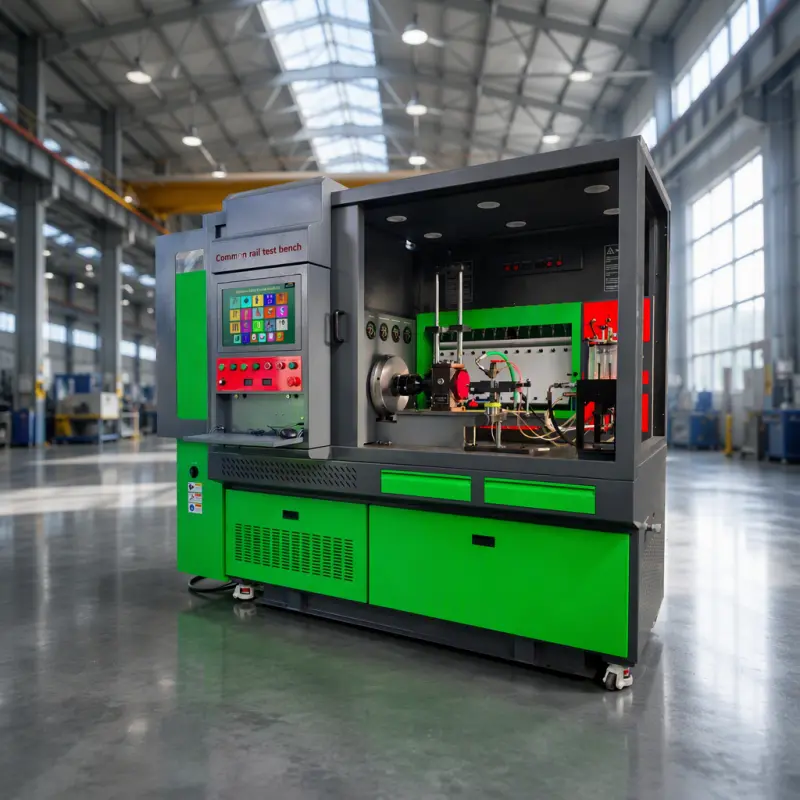

CR919PLUS Multifunctional Common Rail Test Bench

The BEACON multifunctional common rail test bench is designed as an all-in-one diagnostic and test platform for modern diesel injection systems used in trucks, construction machinery, agricultural equipment, marine vessels, and heavy-duty commercial vehicles worldwide.

Standard Coverage and Optional Modules
The test bench integrates multiple testing modules covering common rail injectors, piezoelectric injectors, common rail high-pressure pumps, Denso HP series pumps, HEUI injectors for Caterpillar engines, EUI and EUP units with cam box, plus IQA coding function. Optional modules include Denso V3/V4/V5 pumps, VP37/VP44/RED4, Cummins PT injectors, HPI X15, Detroit DD15 high-pressure pumps, and Bosch CP4/CP5 euro VI pumps.

1. Common Rail Injector Test

Tests solenoid and piezoelectric common rail injectors with more than 8,000 pre-loaded test data records covering Bosch (2,493 entries), Denso (4,287 entries), Siemens (171 entries), Delphi (449 entries), Caterpillar (17 entries), Cummins (54 entries), and MTU (19 entries). Compatible with all major global injector brands.

2. Piezoelectric Injector Test

Tests the latest generation piezoelectric injectors with full charge-discharge cycle measurement, response time, and injection quantity at multiple rail pressure points.

3. Common Rail Pump Test

Tests Bosch CP1, CP3, CP4 and other high-pressure common rail pumps with adjustable speed range and pressure control. Suitable for heavy-duty truck applications from Mercedes-Benz, MAN, Scania, Volvo, Iveco, DAF, and other commercial vehicle brands.

4. Denso HP0 Pump Test (Standard)

Standard configuration includes Denso HP0 high-pressure pump testing. Optional upgrades available for HP3, HP4, HP5, HP6, and HP7 pumps with dedicated adapters.

5. HEUI Injector Test - Caterpillar C7 / C9 / 3126B / 3116 (Standard)

Tests Caterpillar HEUI injectors and actuating pumps including C7, C9, 3126B, and 3116 series. Compatible with Caterpillar excavator and heavy equipment fuel systems.

6. EUI / EUP Test with Cam Box

Tests Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP) using the cam box. Supports Delphi E3 dual solenoid EUI (optional), and heavy-duty EUI/EUP systems used in Caterpillar, Cummins, Detroit Diesel, Volvo, and Scania.

7. Optional Test Modules

Optional modules available include VP37, VP44, RED4 (VW/Audi), Denso V3/V4/V5 pumps, Cummins PT injector and PT pump test, Bosch CP4/CP5 euro VI, HPI X15 Q60 Cummins, and Detroit DD15 high-pressure pump test.

Test Data and Coding

The integrated software includes pre-loaded test data for over 8,000 injector models, with regular database updates. The Bosch Denso Siemens Delphi coding function enables IQA value writing and adjustment for remanufactured injectors. The multilingual control system supports 15 languages including English, Spanish, Russian, Chinese, French, Italian, German, Korean, Polish, Portuguese, Turkish, Bosnian, Arabic, Croatian, and Finnish.

Application Coverage

This test bench is used worldwide in automotive repair shops, fuel injection service centers, OEM production lines, technical training schools, and military maintenance facilities. Compatible with engines for Mercedes-Benz Actros, Volvo FH16, Scania R730, MAN TGX, CAT engines, Cummins ISX15, Detroit DD15, Peterbilt 379, and many other commercial vehicles and construction machinery.

Technical Specifications

Host power 15KW / 18.5KW / 22KW optional, spindle speed 0-3000 r/min, input voltage 220V / 380V, high-pressure oil supply 0-250 MPa (up to 280 MPa), fuel tank capacity 40L, automatic temperature control 40 degrees Celsius, machine weight 1250 KG, dimensions 205 x 130 x 192 cm.

Warranty and Delivery

One-year warranty with lifetime technical support. Non-human damage within one year is covered by free accessory replacement. Delivery time 3-4 weeks. Plywood case packaging included.

1. Comprehensive Test Coverage - One bench handles Common Rail injector, Piezo injector, CR pump, Denso HP0, HEUI CAT C7 C9 3126B, EUI EUP cam box, and CAT 320D pump testing.

2. Pre-loaded 8000+ Test Data - Integrated database with Bosch Denso Siemens Delphi Caterpillar Cummins MTU injector reference data, regularly updated.

3. IQA Coding Function - Supports Bosch Denso Siemens Delphi IQA value adjustment and writing for remanufactured injectors.

4. CR919PLUS Standard CAT 320D - Upgraded configuration includes CAT 320D high-pressure common rail pump testing as standard, not optional.

5. Multilingual Software Interface - 15 languages including English Spanish Russian Chinese French German Italian Korean Polish Portuguese Turkish Bosnian Arabic Croatian Finnish.

6. Global Application Coverage - Used worldwide in automotive repair shops fuel injection service centers OEM production lines and technical training schools for Mercedes Volvo Scania MAN CAT Cummins Detroit vehicles.
