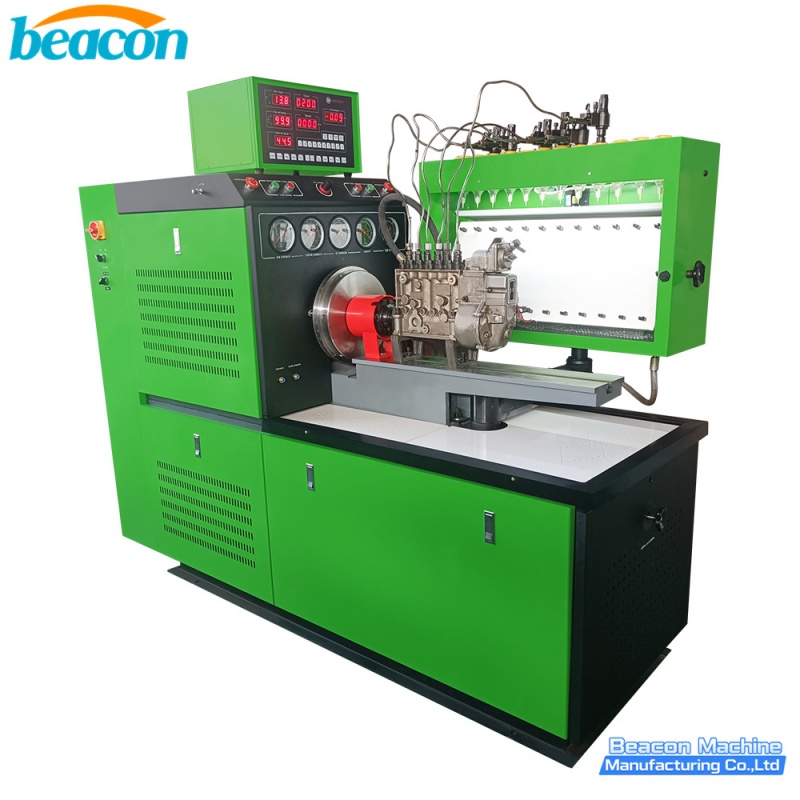

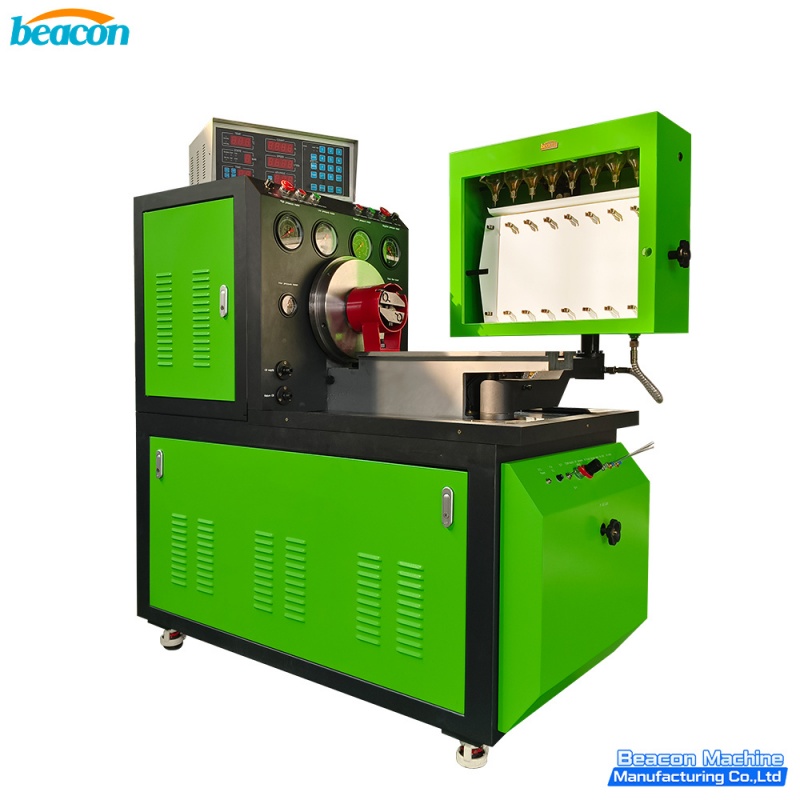

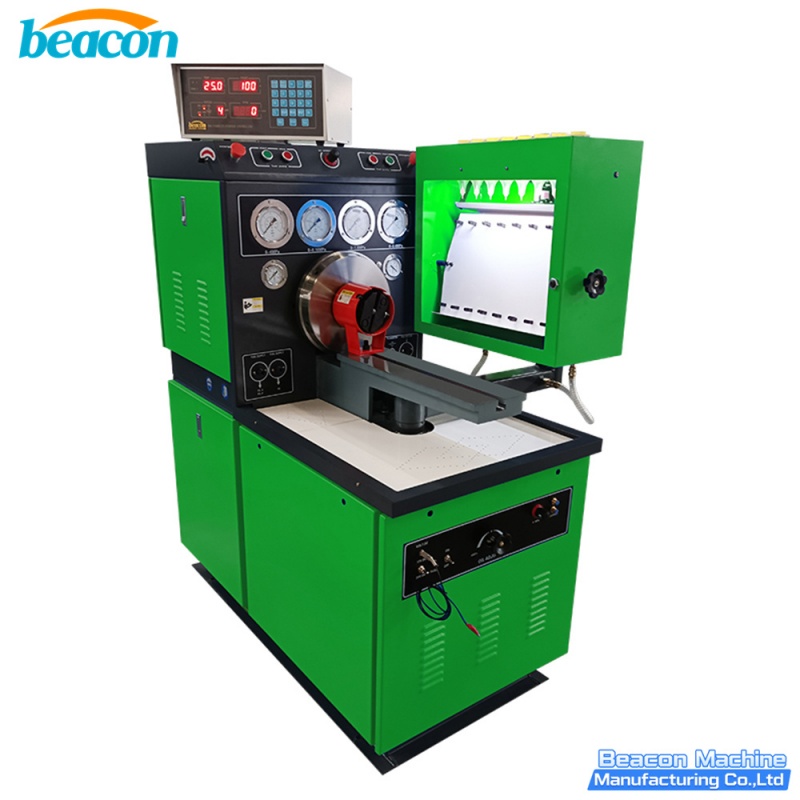

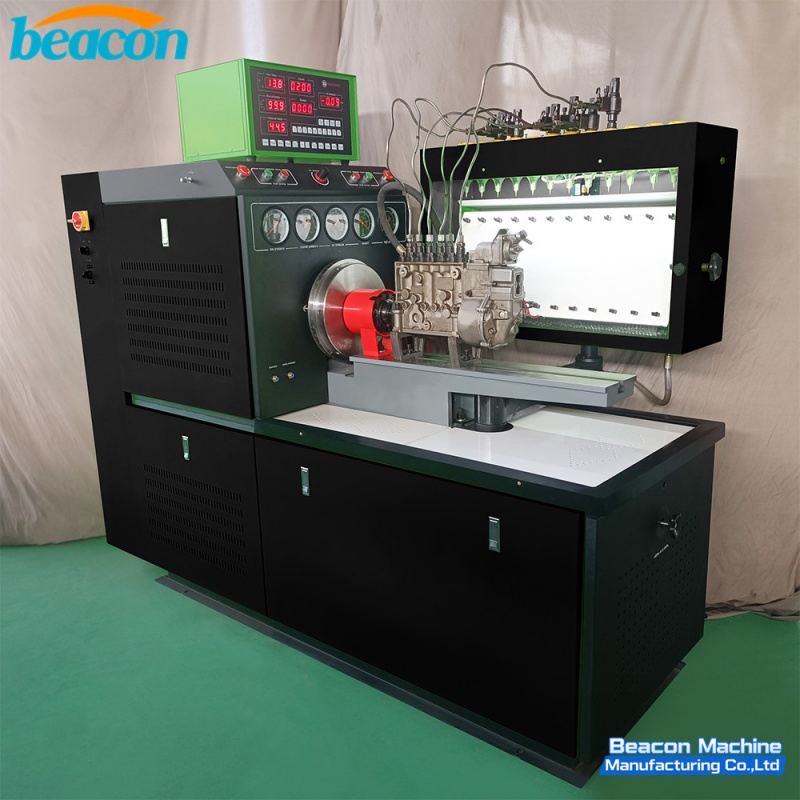

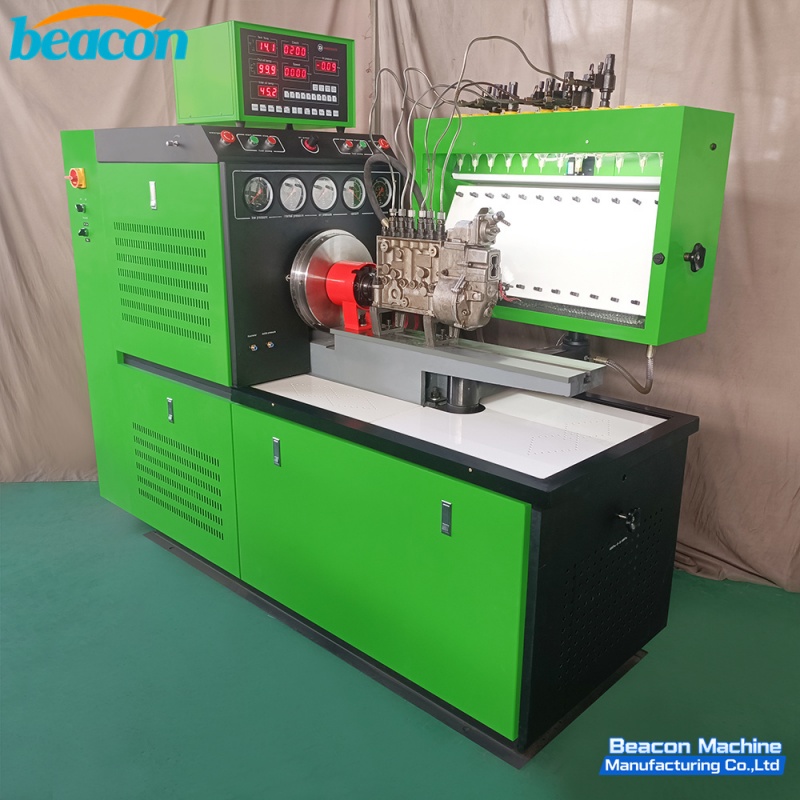

ES619 Fuel Injection Pump Test Bench 12-Cylinder Diesel Pump Calibration Machine

The ES619 Fuel Injection Pump Test Bench is a high-performance calibration system designed for testing a wide variety of diesel fuel injection pumps. Powered by an AC motor with a high-quality LS (LG) frequency converter, it offers a stable speed range from 0 to 4000 RPM. This 12-cylinder machine is capable of testing both in-line and rotary pumps, including I, II, III, A, B, P, Z, and VE models. With its digital control instrument, it provides precise measurement for rotation speed, stroke counting, and oil temperature, making it a reliable choice for professional diesel workshops.

• Multi-Power Options: Available in 11KW, 15KW, 18.5KW, and 22KW configurations to meet different heavy-duty requirements.

• Advanced Speed Control: Utilizes a premium LS (LG) frequency converter for large torque output and stable rotation at both high and low speeds.

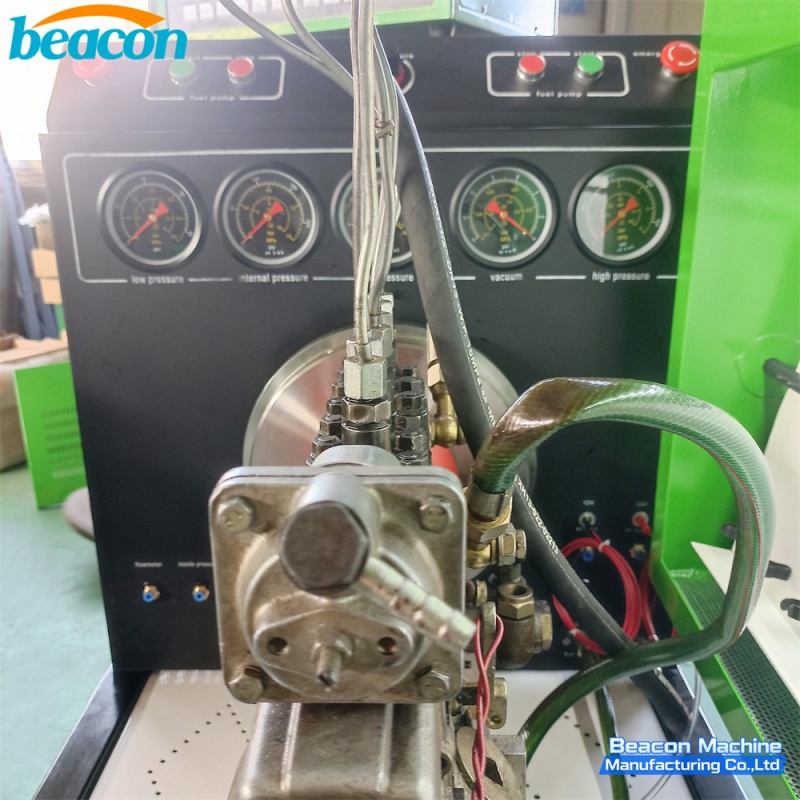

• Comprehensive Testing: Measures each cylinder's delivery, injection timing, governor performance, and internal pressure of distributor pumps.

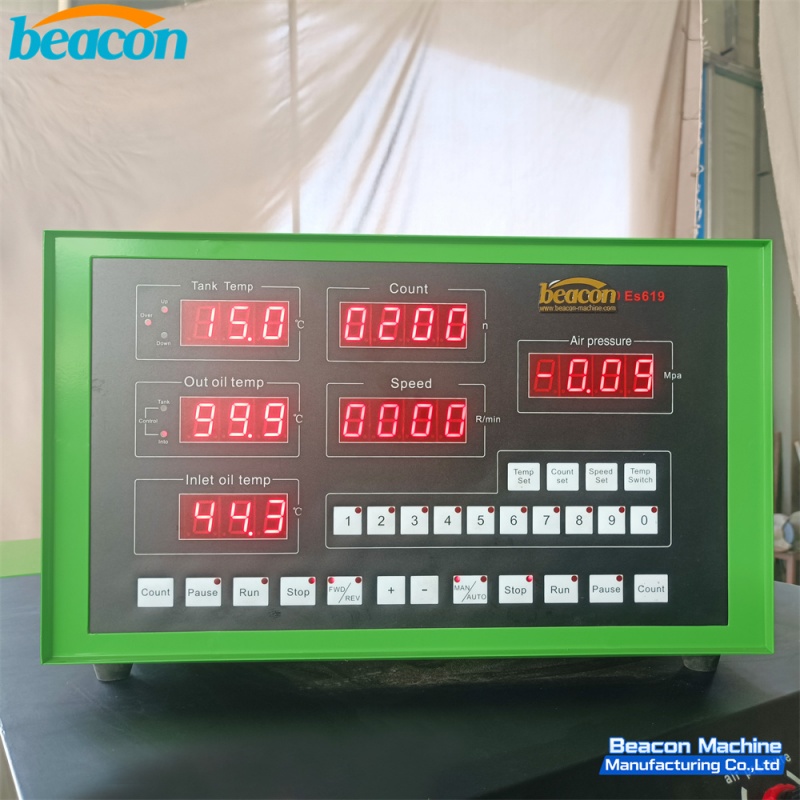

• Precision Digital Interface: High-visibility digital display for strokes counting, speed, and oil temperature ($40pm2^{circ}C$).

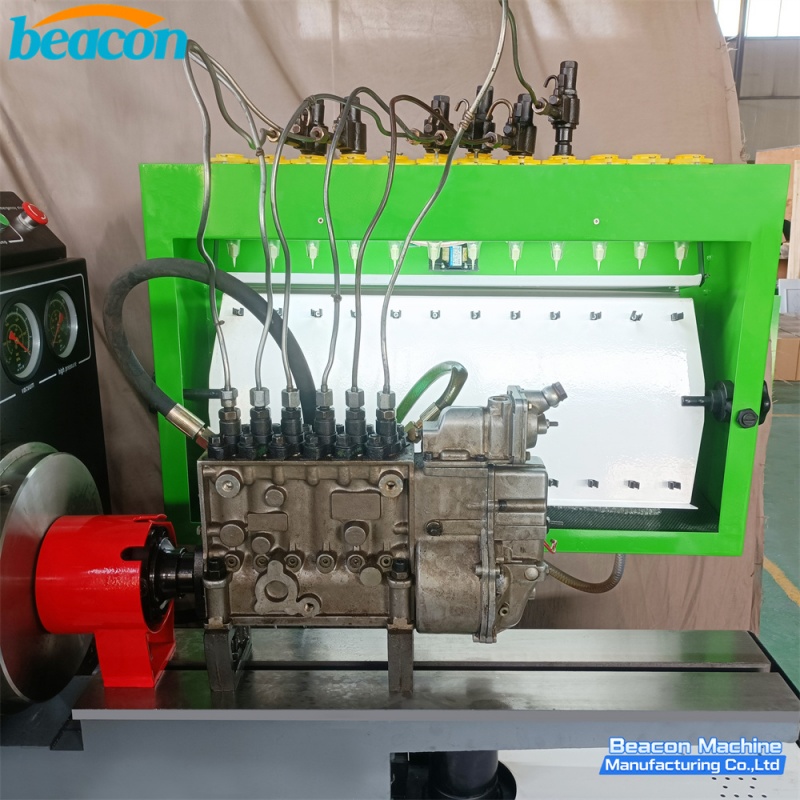

• Robust 12-Cylinder Design: Allows for simultaneous testing of up to 12 cylinders with a standard 125mm shaft height.

• Versatile Compatibility: Equipped with various accessories to test standard mechanical pumps (A, B, P, VE, etc.) and gear rod travel.
