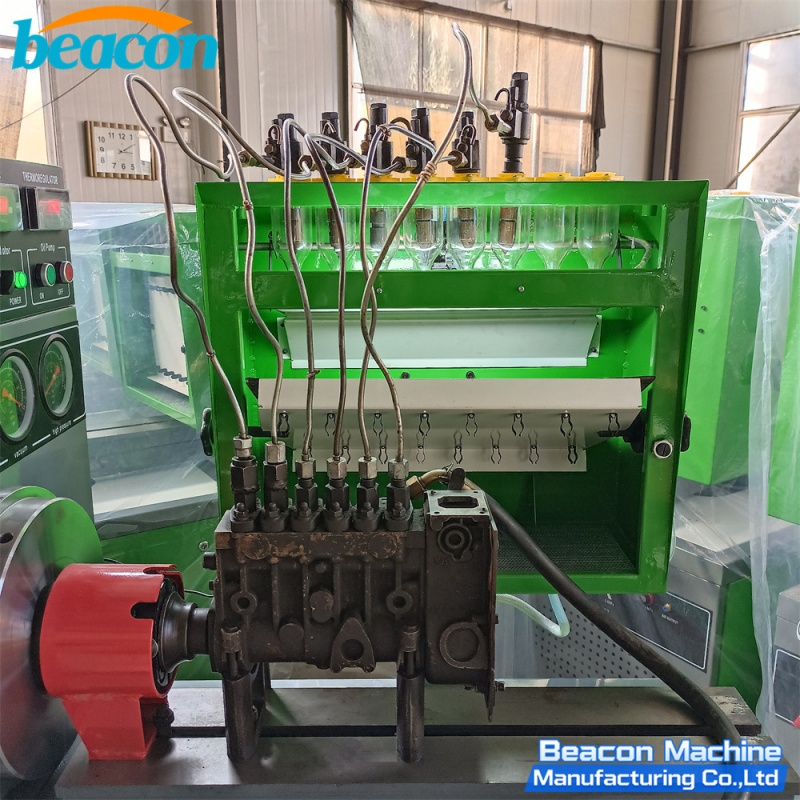

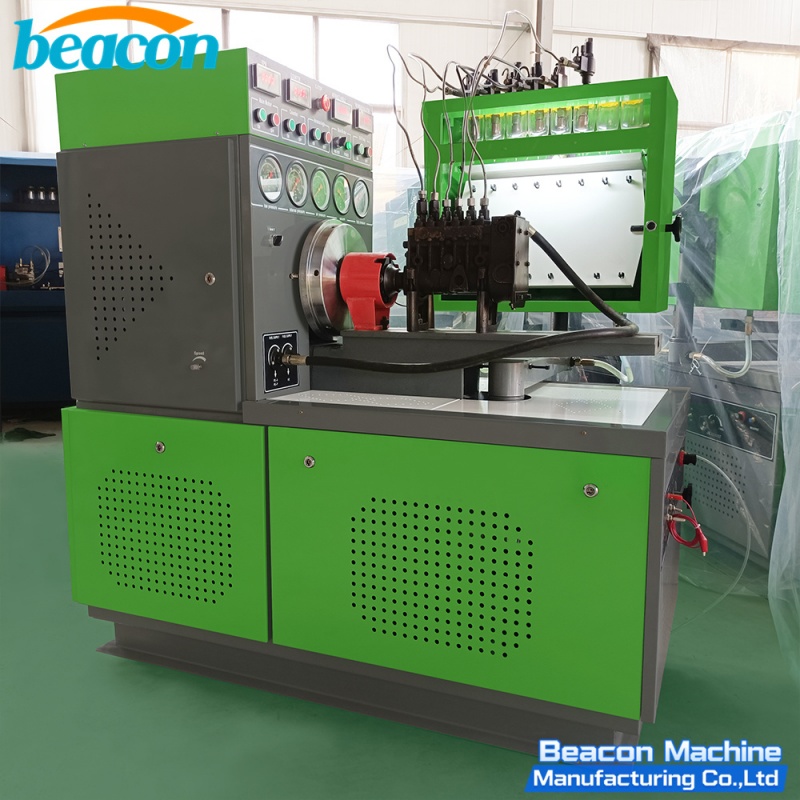

MINI12PSB-H Diesel Fuel Injection Pump Test Bench 8-Cylinder Euro II Pump Tester

The MINI12PSB-H Euro II Mechanical Diesel Pump Test Bench is a robust and highly reliable calibration machine designed for the precise testing of high-pressure diesel injection pumps. Equipped with an 11KW motor and a premium frequency converter, it ensures stable spindle speeds ranging from 0 to 4000 rpm with minimal fluctuation ($pm1$ rpm). This 8-cylinder bench is engineered for versatility, supporting various mechanical in-line and rotary pumps. Its compact design combined with energy-saving technology makes it an essential asset for any professional diesel repair workshop.

• High Precision Speed Control: Utilizes advanced frequency conversion technology to maintain a stable speed with a fluctuation of only $pm1$ rpm.

• Versatile 8-Cylinder Capability: Capable of testing up to 8 cylinders simultaneously, supporting a wide range of Euro II mechanical pumps.

• Comprehensive Testing Functions: Measures cylinder oil delivery at any speed, interval angles, mechanical governor behavior, and distributor pump internal pressure.

• Smart Protection System: Built-in safeguards against under-voltage, over-voltage, overheating, and overloading for maximum operational safety.

• User-Friendly Environment: Engineered for ultra-low noise operation and optimized energy efficiency.

• Durable Industrial Build: Features a standard 125mm shaft height and YB1-10 vane pump for consistent oil supply and long-term durability.
