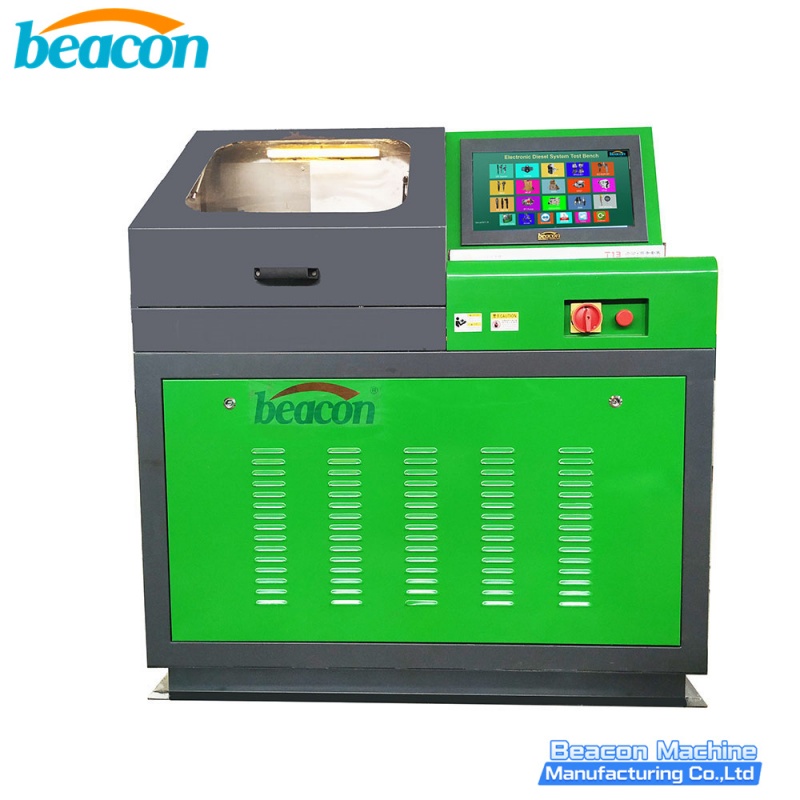

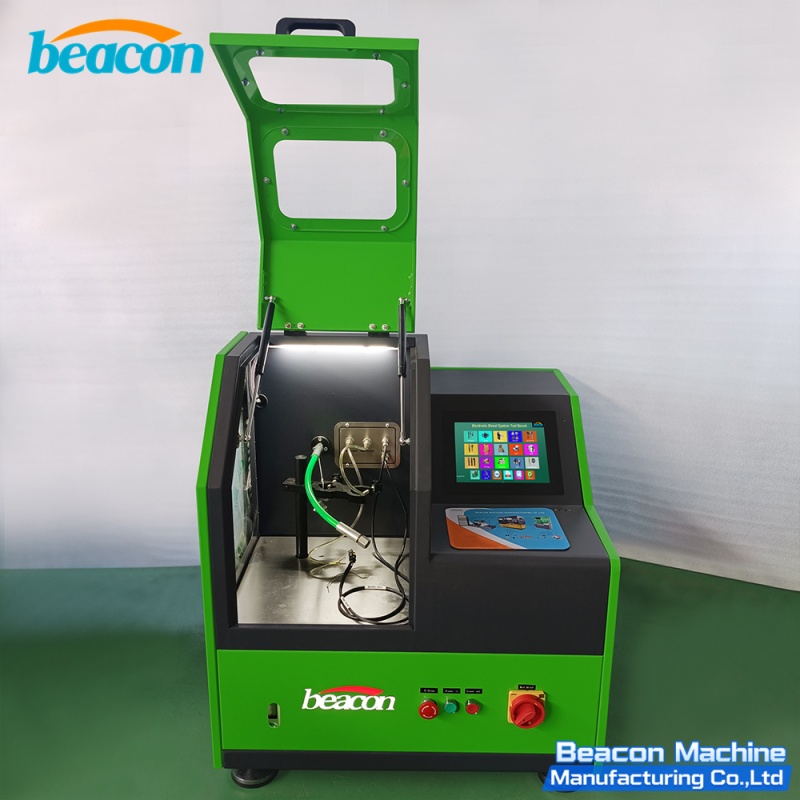

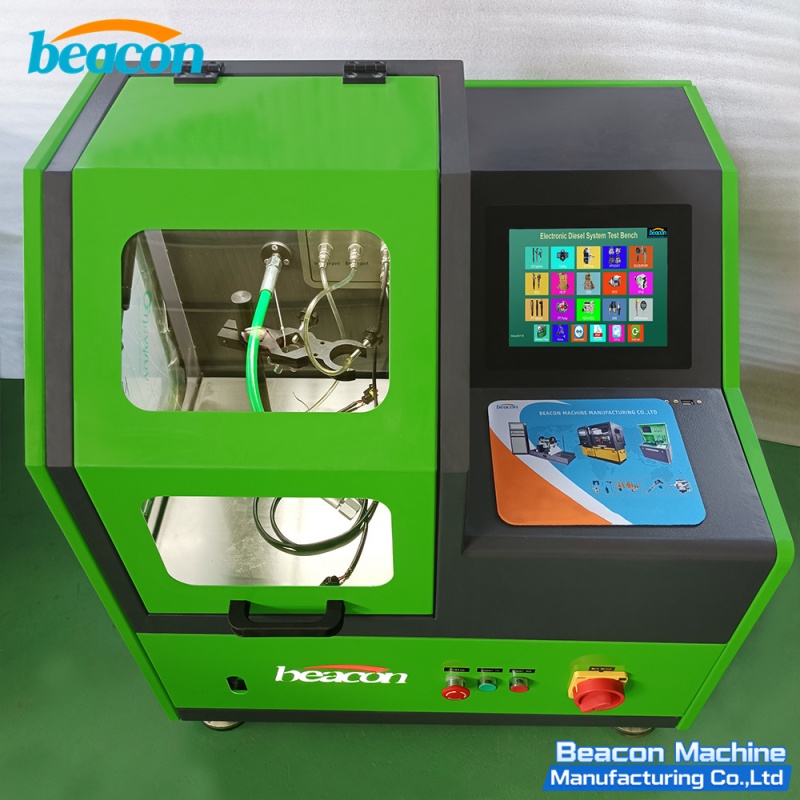

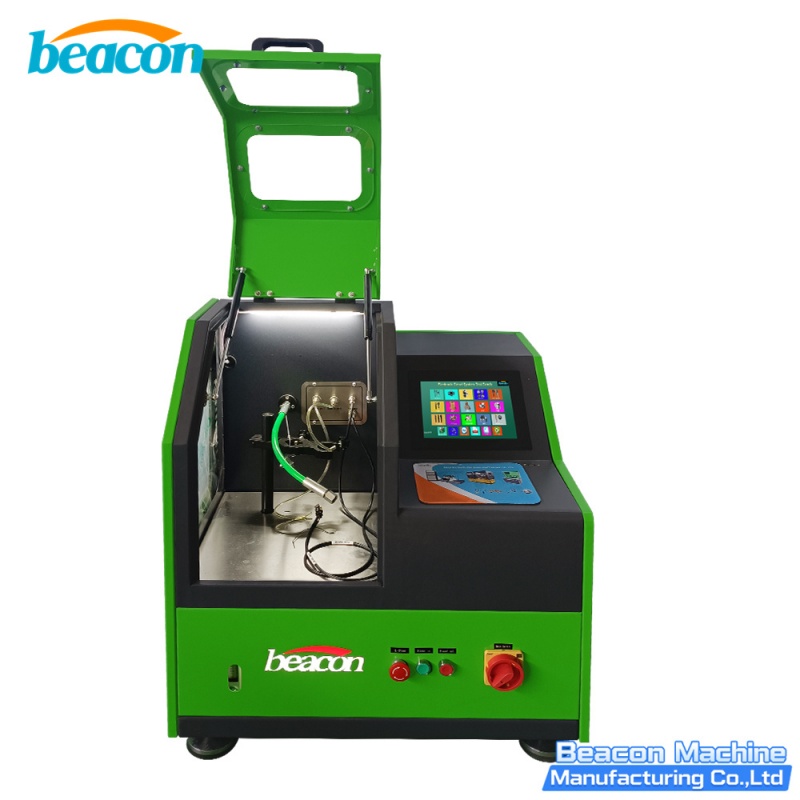

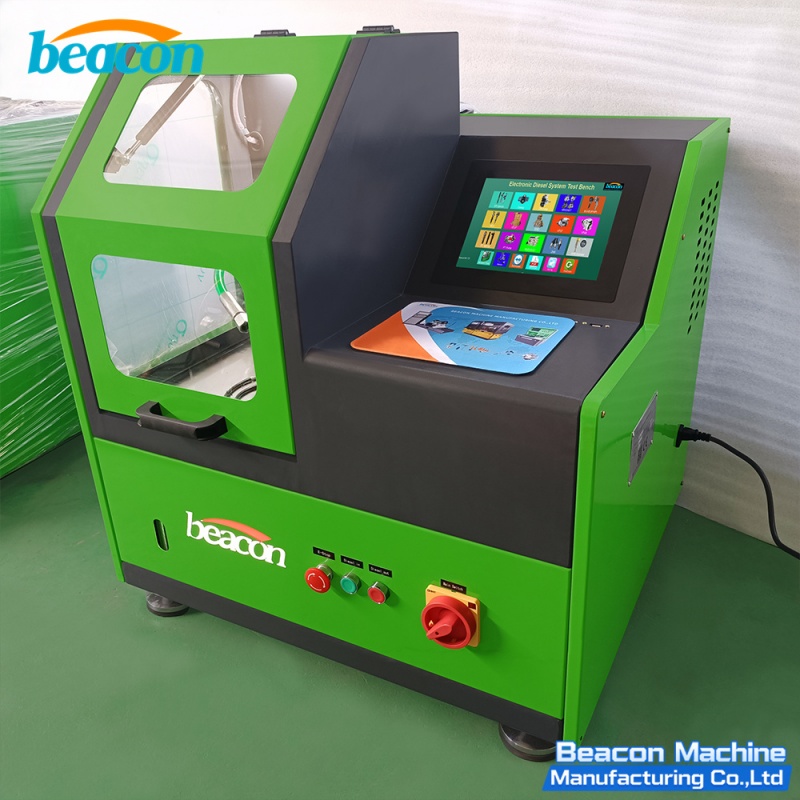

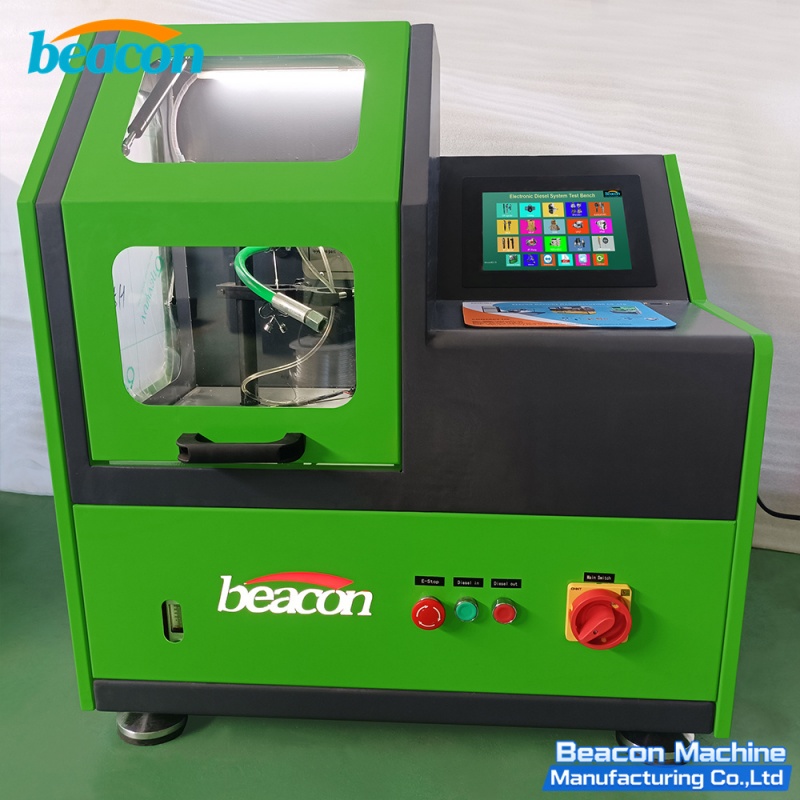

EPS208 Common Rail Injector Test Bench Piezo Injector Tester
Details
The EPS208 High Pressure Common Rail Injector Test Bench is a professional-grade testing solution designed to simulate the working conditions of diesel engine ECUs. It provides precise control signals for Bosch, Denso, Delphi, and piezoelectric injectors. This machine is the ideal choice for diesel vehicle maintenance, locomotive repair, and professional testing facilities due to its reliability and high control accuracy.
EPS208 Common Rail Injector Test Bench Piezo Injector Tester Advantage
Broad Compatibility: Tests solenoid and piezoelectric crystal injectors from manufacturers like Bosch, Denso, Delphi, Siemens, and Caterpillar.
Precision Technology: Features an original Bosch high-pressure pump to generate stable 0-200MPa rail pressure.
Comprehensive Database: Includes thousands of injector data points for easy query, storage, and reporting.
User-Friendly Interface: Equipped with an industrial computer running Windows for real-time control and LCD display.
Multi-Functional: Supports sealing tests, full load, mid-load, idling, and pre-injection performance testing.
Safety & Efficiency: Includes over-voltage and short-circuit protection with a transparent protective door for safe observation.
parameter
| Items | Parameters |
|---|---|
| Model | EPS208 |
| Voltage | 220V 1 phase |
| Working Pressure | 0-200MPa |
| Output Power | 2.6KW |
| Oil Pump Speed | 0--1500rpm |
| Fuel Tank Volume | 10L |
| Filtering Accuracy | 3μ |
| Oil Measuring Method | Flow meter |
| Machine Size | 80*75*93 cm |
| Net Weight | 150 Kg |
