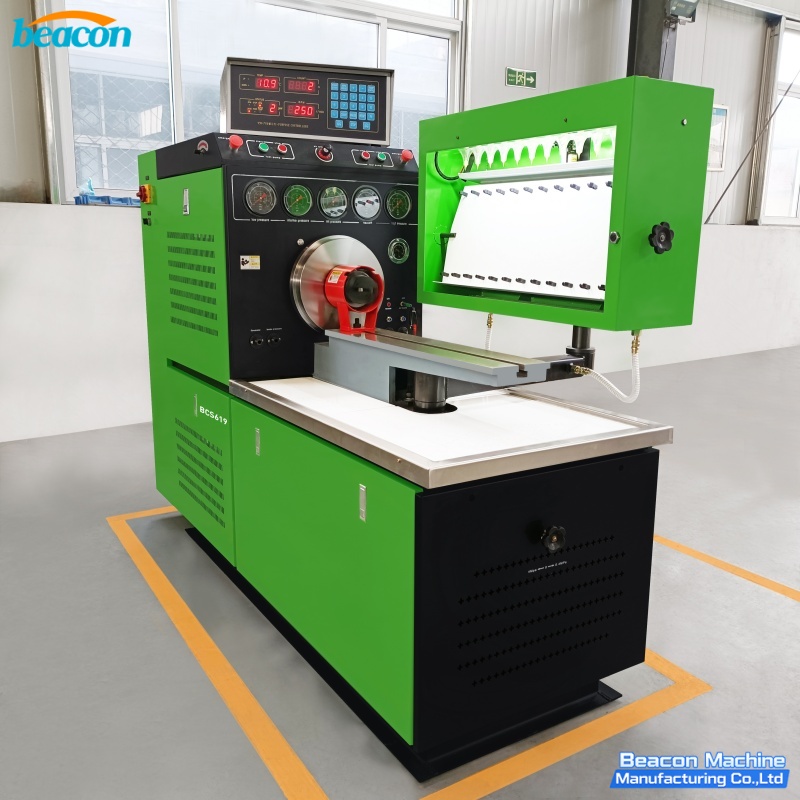

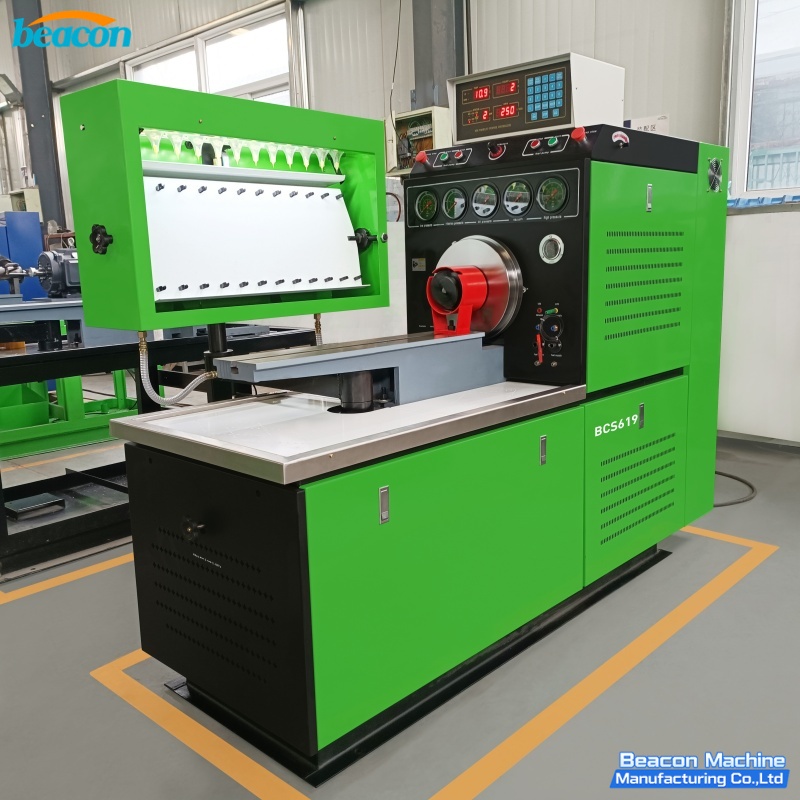

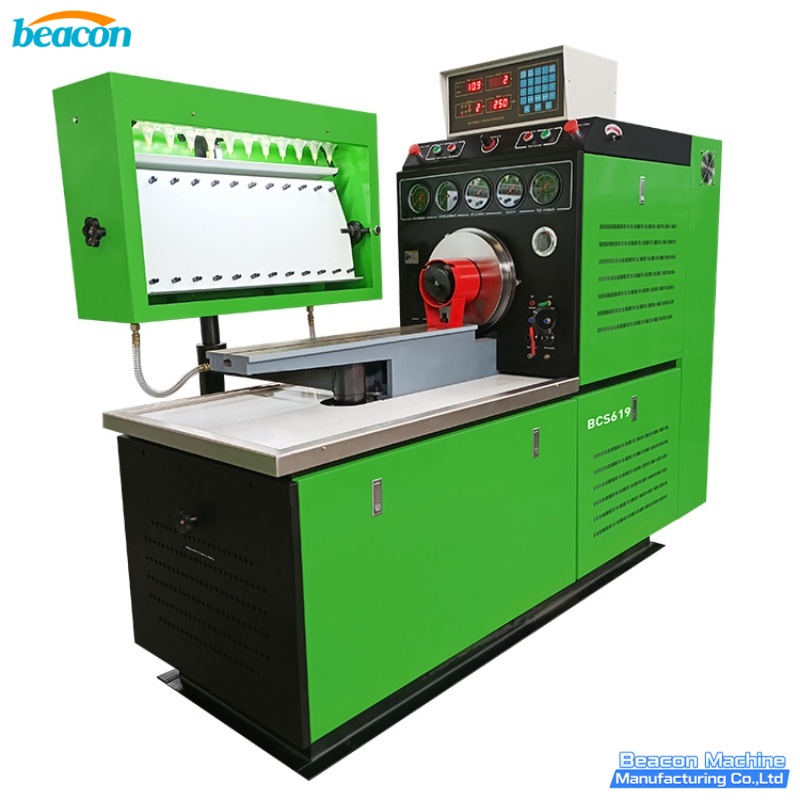

BCS619B Fuel Injection Pump Test Bench 12 Cylinders Diesel Pump Calibration Machine
Details
The BCS619B Fuel Injection Pump Test Bench is a high-performance diesel pump testing system utilizing Bosch advanced techniques and high-quality frequency inverters. Designed for precision, it can test both in-line and rotary fuel injection pumps, including I, II, III, A, B, P, Z, and VE types. With a 12-cylinder measurement system and digital indicators for speed, temperature, and pressure, it is the essential equipment for professional diesel fuel system calibration and maintenance.
BCS619B Fuel Injection Pump Test Bench 12 Cylinders Diesel Pump Calibration Machine Advantage
Versatile Testing: Capable of testing various pumps like in-line (A, B, P, Z) and distributor/rotary pumps (VE, DPA, DP200).
High Performance Inverter: Equipped with a low-noise, high-performance inverter for stable speed adjustment and large torque output.
Multi-Function Measurement: Supports measurement of each cylinder's delivery, injection timing, governor performance, and internal pressure of distributor pumps.
Digital Accuracy: Real-time digital display for rotation speed, stroke counting, fuel temperature, and vacuum/pressure levels.
Robust Configuration: Available in multiple power options (5.5kW to 22kW) to meet different workload requirements.
Advanced Features: Includes an air pressure/vacuum device for checking pneumatic governors and pump tightness.
parameter
| Specifications | Technical Data |
|---|---|
| Model | BCS619B |
| Cylinders | 12 Cylinders |
| Output Power | 5.5 / 7.5 / 11 / 15 / 18.5 / 22 KW (Optional) |
| Rotation Speed Range | 0 - 4000 RPM |
| Speed Control | Frequency Inverter Control |
| Oil Temperature Control | 40 ± 2°C |
| Air Pressure Range | 0 - 0.2 MPa |
| Vacuum Range | -0.05 - 0 MPa |
| DC Power Supply | 12V / 24V |
| Test Pump Types | In-line (A, B, P, Z, etc.) & Rotary (VE, DPA, etc.) |
