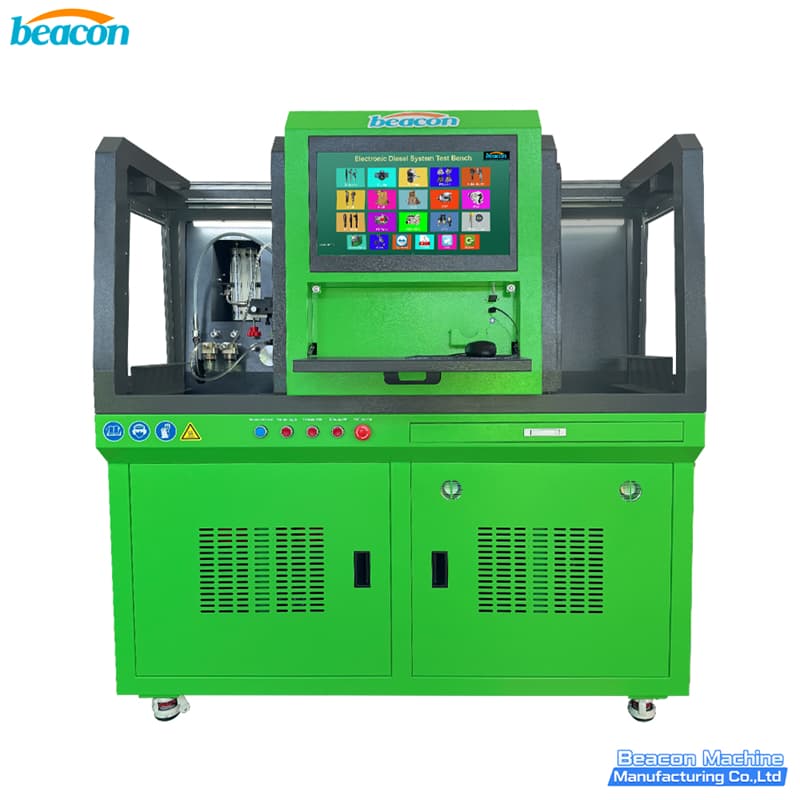

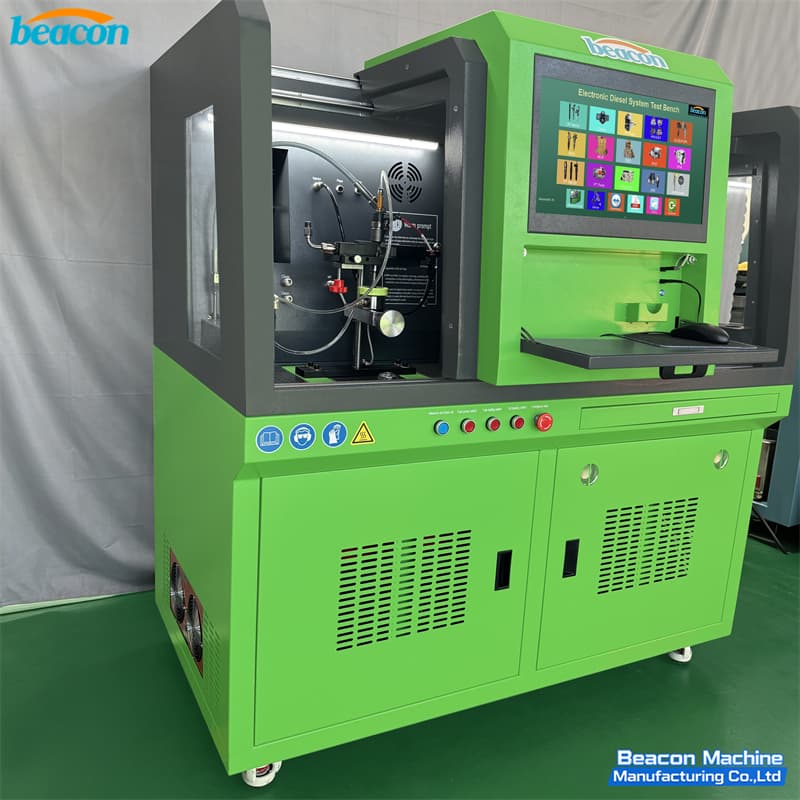

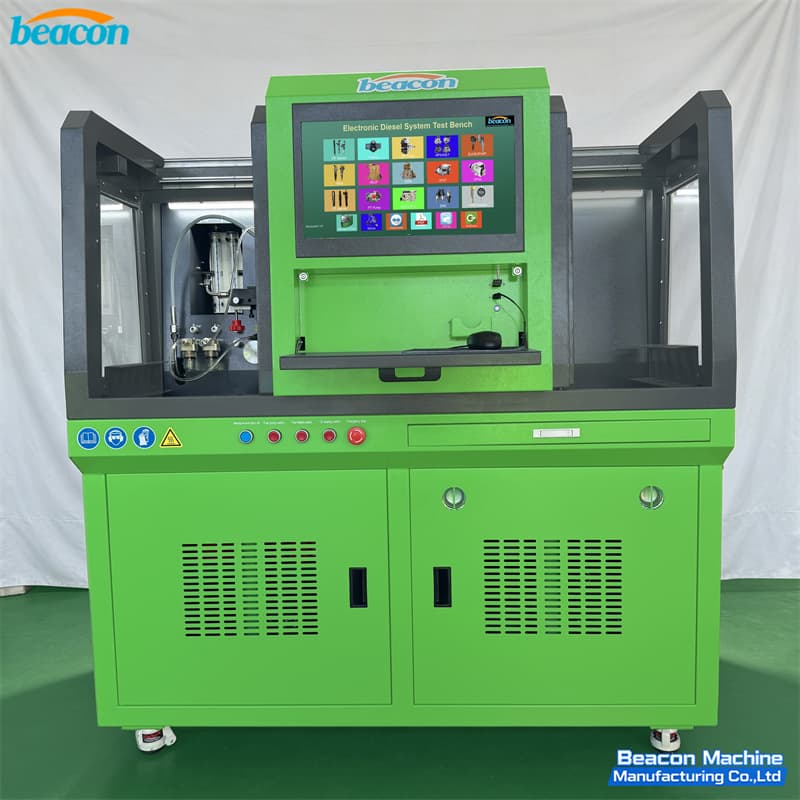

CR318-PRO HEUI High Pressure Common Rail Injector Test Bench for Bosch Denso Delphi Siemens CAT C7 C9 3126B

Product Overview

The CR318-PRO is a high-performance HEUI High Pressure Common Rail Injector Test Bench designed for testing a wide range of diesel injectors. It supports Common Rail injectors, Piezo injectors, and HEUI injectors from all major brands including Bosch, Denso, Delphi, Siemens, Caterpillar, Cummins, and MTU. With its dual motor system (5.5KW + 2.2KW) and advanced software, the CR318-PRO provides precise injector testing and coding capabilities for diesel injection workshops worldwide.

Key Features

• Common Rail Injector Testing: Tests all standard Common Rail injectors including Bosch, Denso (1KD, 2KD), Delphi, Siemens, and Caterpillar. 7,725 data points covering Bosch 2393, Denso 4187, Siemens 170, Delphi 449, CAT 17, Cummins 54, and MTU 19.

• HEUI Injector Testing: Supports HEUI CAT C7, C9, 3126B, 3116 injectors. Dual circuit oil + diesel system. Optional 6 new models: 3126A, 3412E, NAVISTAR, ISUZU, G2.8, G2.9.

• Injector Coding Function: 4,204 injector coding data points for Bosch (1,174), Denso (2,375), Siemens (160), Delphi (438), and Cummins (28).

• Piezo Injector Testing: Fully compatible with Piezo injectors used in modern diesel engines.

• BIP Function: Precise needle lift detection for accurate injector timing measurement.

• 15 Language Software: Multilingual interface. Customer logo can be customized.

• Dual Motor System: 5.5KW + 2.2KW for reliable and stable operation.

• Optional Upgrades: 2 or 4 injectors simultaneous testing, Rail pressure sensor test, DRV/HPV test, Solenoid valve test, Bosch 4-pin injector test, AHE injector dynamic stroke test (7,343 data points).

Supported Injector Brands

The CR318-PRO covers a comprehensive range of diesel injectors:

• Bosch Common Rail injectors (CRIN, CRIN2, CRIN3, CRIN4, Piezo)

• Denso injectors for Toyota, Nissan, Hino (1KD, 2KD common rail systems)

• Delphi injectors for European vehicles

• Siemens VDO injectors

• Caterpillar HEUI injectors (C7, C9, 3126B, 3116, 3126A, 3412E)

• Navistar, Isuzu, Ford HEUI injectors (G2.8, G2.9)

• Cummins, MTU injectors

• Common Rail pump testing HP0, HP3, HP5, HP6, HP7 (optional)

• EUI/EUP/HPI injector testing

• Tests Common Rail Injectors and Piezo Injectors

• HEUI CAT C7 C9 3126B 3116 Injector Testing

• Bosch Denso Delphi Siemens Injector Coding (4204 Data Points)

• 7725 CR Injector Data Points (Bosch Denso Delphi Siemens CAT Cummins MTU)

• Common Rail Pump HP0/5/6/7 Test (Optional)

• EUI/EUP/HPI Test

• 15 Language Software Interface

• BIP Function for Precise Injector Needle Lift Detection

• Free Software Update 1 Year + Remote Upgrade

• Option: Test 2 or 4 Injectors Simultaneously

• Option: Bosch 4-pin Injector Test

• Option: AHE Injector Dynamic Stroke Test (7343 Data Points)
