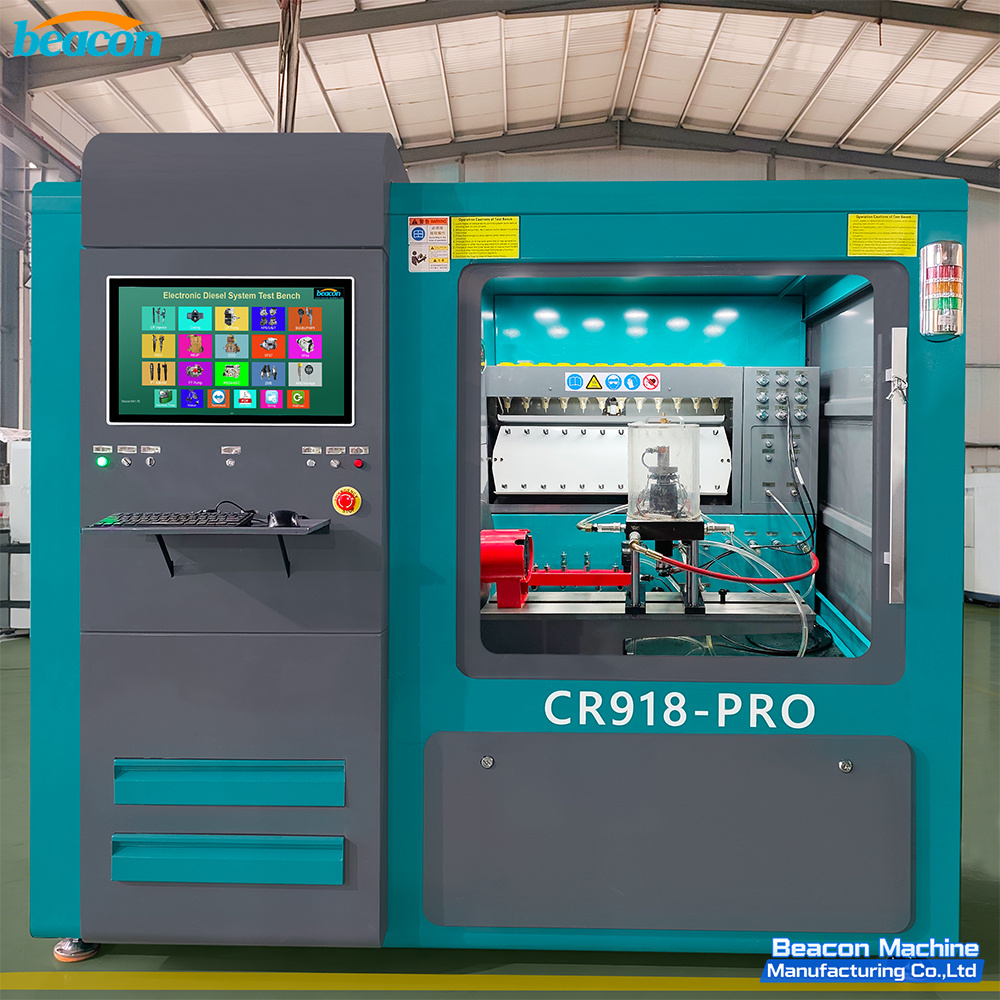

CR918-PRO Multifunctional Common Rail Test Bench EUI EUP HEUI Fuel Injection Pump Tester

CR918-PRO is a multifunctional test bench for common rail injectors, pumps, EUI/EUP, and HEUI systems. Featuring high-precision sensors, BOSCH database, and 2800 bar pressure capability. Efficient, accurate, and professional diesel fuel injection diagnostic solution.

Get in touch

Details

The CR918-PRO is a professional-grade, multifunctional test bench designed for the comprehensive testing of modern diesel fuel injection systems. It supports a wide range of components including common rail injectors (BOSCH, DENSO, DELPHI, etc.), high-pressure pumps, EUI/EUP (Electronic Unit Injectors/Pumps), and HEUI (Hydraulic Electronic Unit Injectors). Equipped with a high-precision flow sensor and an industrial computer system, the CR918-PRO provides accurate measurement and automatic data analysis to meet the rigorous demands of professional diesel repair shops.

CR918-PRO Multifunctional Common Rail Test Bench EUI EUP HEUI Fuel Injection Pump Tester Advantage

Multifunctional Integration: One machine tests Common Rail Injectors, Pumps, EUI, EUP, and HEUI systems.
High Precision: Uses original imported high-precision flow sensors for accurate fuel delivery and return measurements.
High Pressure Performance: Supports testing up to 2800 bar (optional with Bosch CP4 pump) to meet the latest diesel standards.
Extensive Database: Built-in thousands of standard test data for BOSCH, DENSO, DELPHI, and SIEMENS components.
Smart Diagnostics: Automatic testing, data comparison, and report generation for efficient workflow.
Durable Design: Industrial-grade PC system and high-power motor (15KW/18.5KW/22KW) ensure long-term stability.

parameter

Item	Specification
Model	CR918-PRO
Host Power	15KW / 18.5KW / 22KW (Optional)
Power Supply	3 Phase 380V, 50/60HZ
Spindle Speed Range	0-4000 RPM
Max Rail Pressure	2000 Bar (Expandable to 2800 Bar)
Fuel Tank Capacity	80L
Oil Temperature Control	40±2 °C
Dimensions (LWH)	205 * 130 * 192 cm
