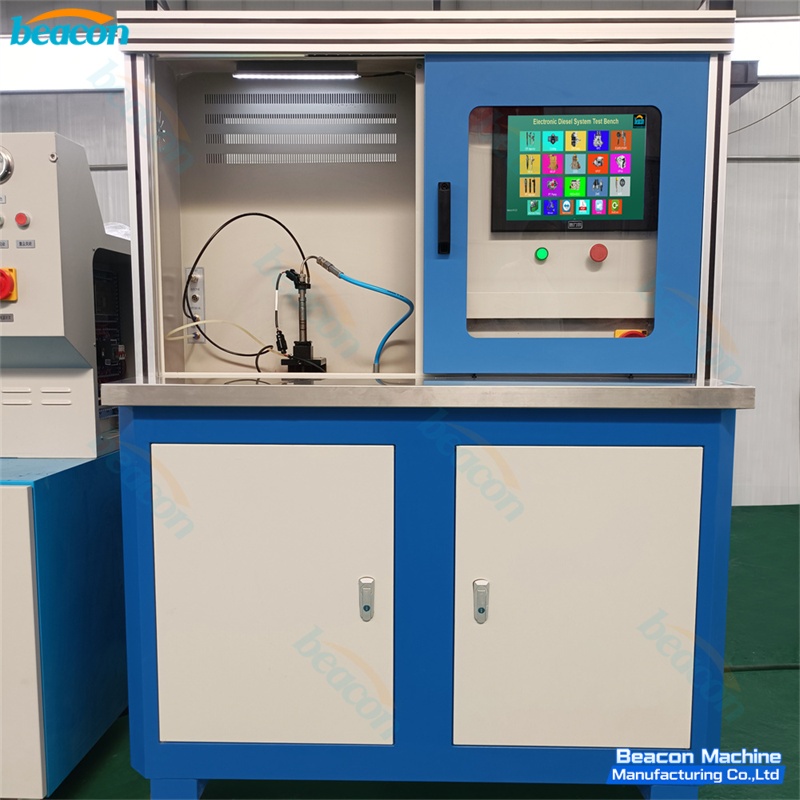

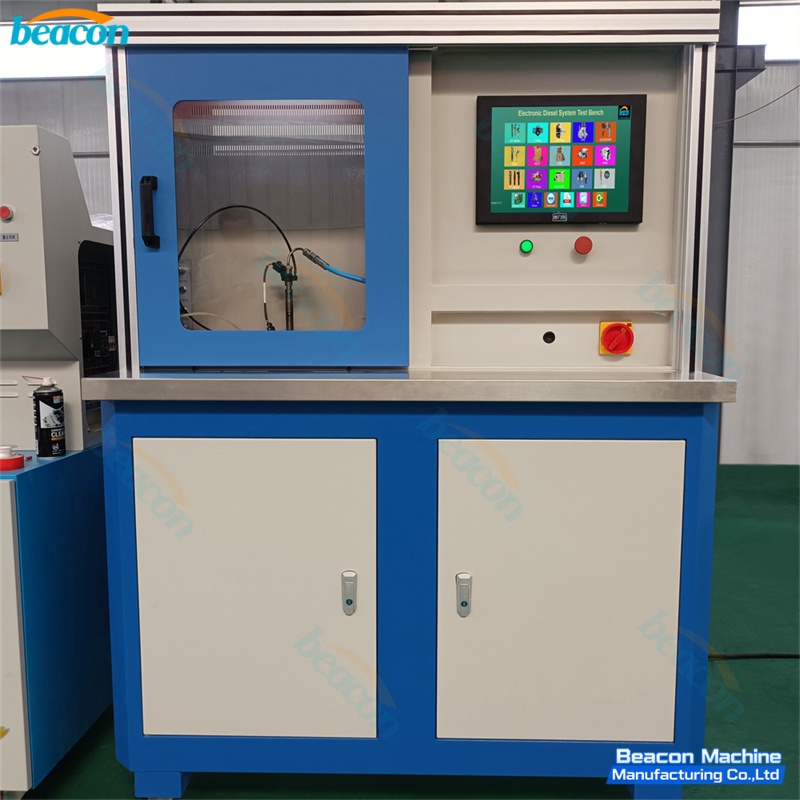

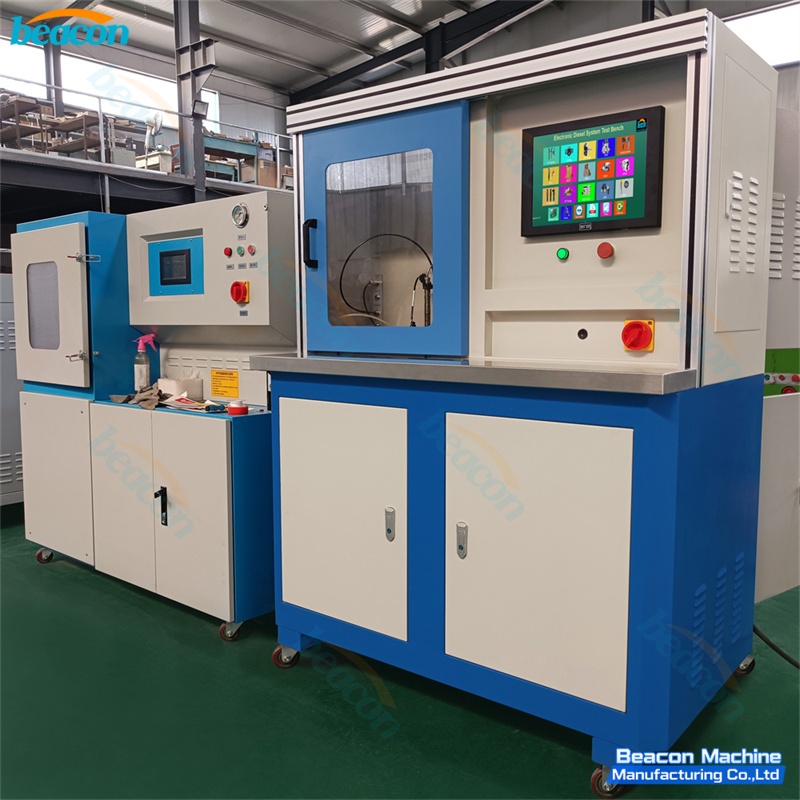

CR307 Common Rail Injector Pump Test Bench Full EFI System Diagnostic Solution
Details
The CR307 is a comprehensive high-pressure common rail injector and pump test bench designed for modern diesel EFI systems. It utilizes a fully automatic computerized measurement system to analyze fuel delivery for solenoid and piezoelectric injectors, as well as various high-pressure pumps. With integrated one-button operation, it provides high-precision testing that meets original factory standards for Bosch, Delphi, Denso, Siemens, Caterpillar, and Cummins systems.
CR307 Common Rail Injector Pump Test Bench Full EFI System Diagnostic Solution Advantage
All-in-One Testing: Supports common rail injectors (solenoid/piezo), high-pressure pumps, HEUI, EUI/EUP, and more.
High Efficiency: Capable of testing up to 6 common rail injectors simultaneously.
Smart Automation: Features a one-button integrated operation for speed control, rail pressure, and automatic report analysis.
Injector Coding: Full support for generating fuel injector compensation codes for Bosch, Denso, Delphi, and Siemens.
Precision Performance: High rail pressure control up to 2400bar with a 1bar accuracy range.
Massive Database: Built-in data for thousands of EFI injectors and pumps, with free automatic network updates.
parameter
| Parameter | Specification |
|---|---|
| Model | CR307 |
| Motor Power | 4KW (Basic Model) / 5.5KW |
| Fuel Pressure Control | 0-2400 bar (Accuracy: 1bar) |
| Injector Opening Freq. | 0-1000 HZ |
| Injector Hold Time | 0-65535 μs |
| Simultaneous Testing | Up to 6 Injectors |
| Electronic Power | 380V / 220V (3-Phase / Single Phase) |
| Product Size | 135 * 80 * 161 CM |
| Weight | 360 KG |
