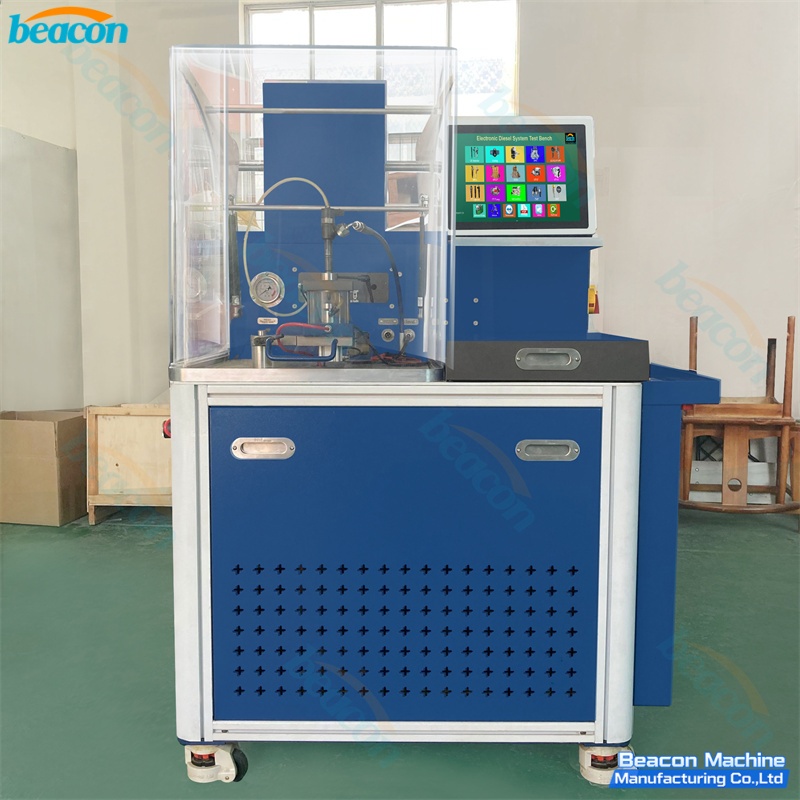

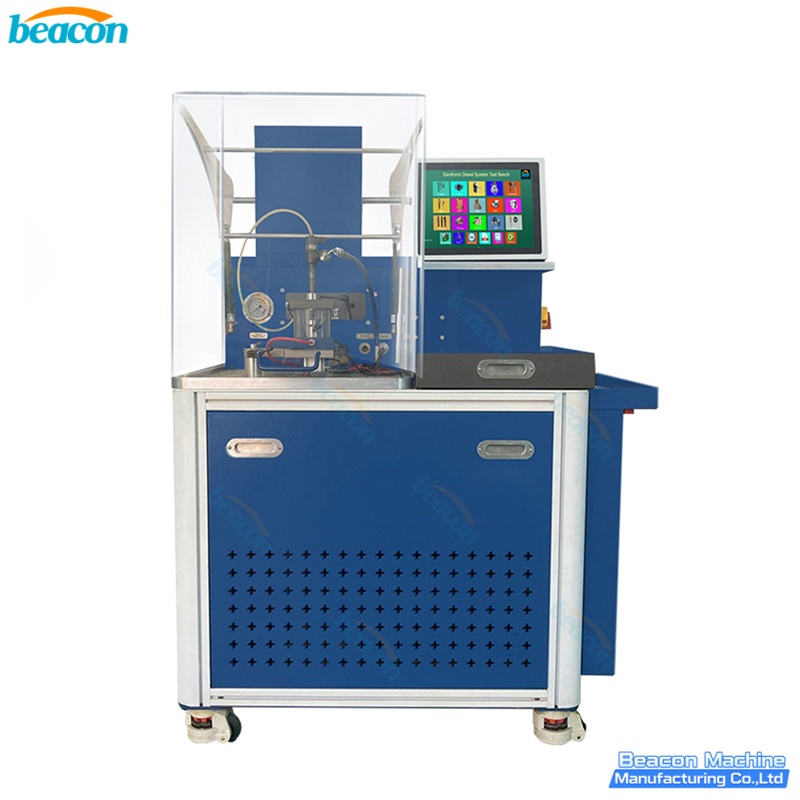

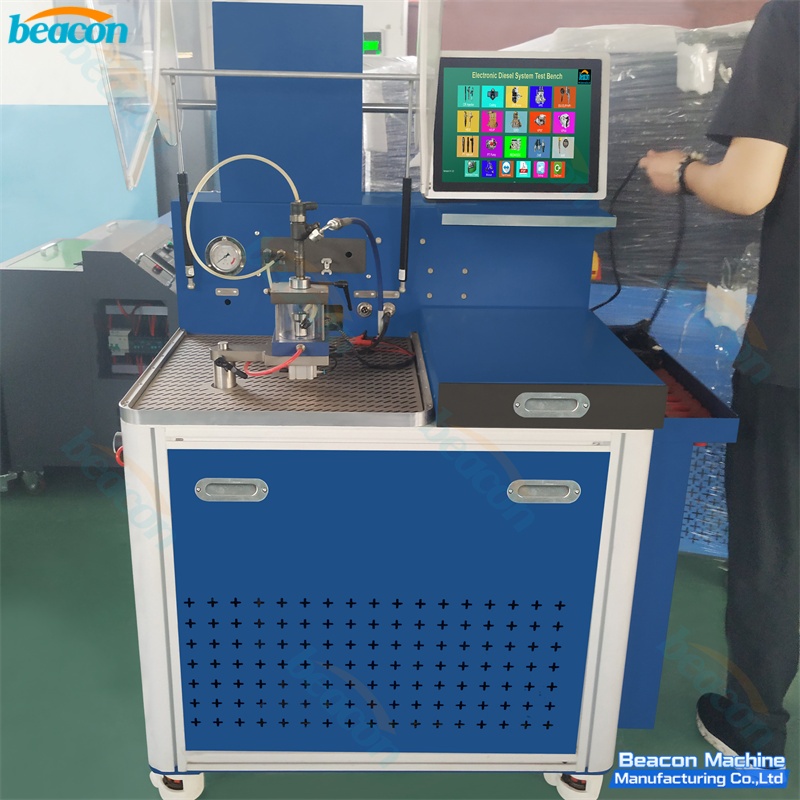

CR306 Common Rail Injector Test Bench Diesel Fuel Injection Tester with 230Mpa Rail Pressure

The CR306 High Pressure Common Rail Injector Test Bench is a professional diagnostic solution designed for testing a wide range of injectors including Bosch, Denso, Delphi, Cummins, and Siemens. Built with a durable aluminum alloy frame and reinforced fasteners, it features an ultra-low noise geared motor and a Bosch CP3 high-pressure pump. Controlled by an industrial computer with a Windows operating system, it provides real-time monitoring of fuel volume, rail pressure, and pulse width for precise maintenance and calibration.

• High Precision Control: Utilizes an intelligent PID algorithm for precise closed-loop rail pressure control and over-pressure protection.

• Massive Database: Built-in library with over 3,000 types of injector data, with real-time online updates available.

• Durable & Portable: Constructed with corrosion-resistant aluminum alloy and equipped with high-grade Fuma wheels (2T load capacity) for easy mobility.

• User-Friendly Interface: Features a responsive touch screen displaying oil measurement, speed, and temperature; supports multi-language switching.

• Advanced Hardware: Equipped with a Bosch CP3 pump and HPV valve, capable of reaching up to 230Mpa (2300 bar) rail pressure.

• Safe & Quiet: Integrated shock absorber design minimizes noise in sealed workspaces, ensuring a safer and more comfortable operation.
