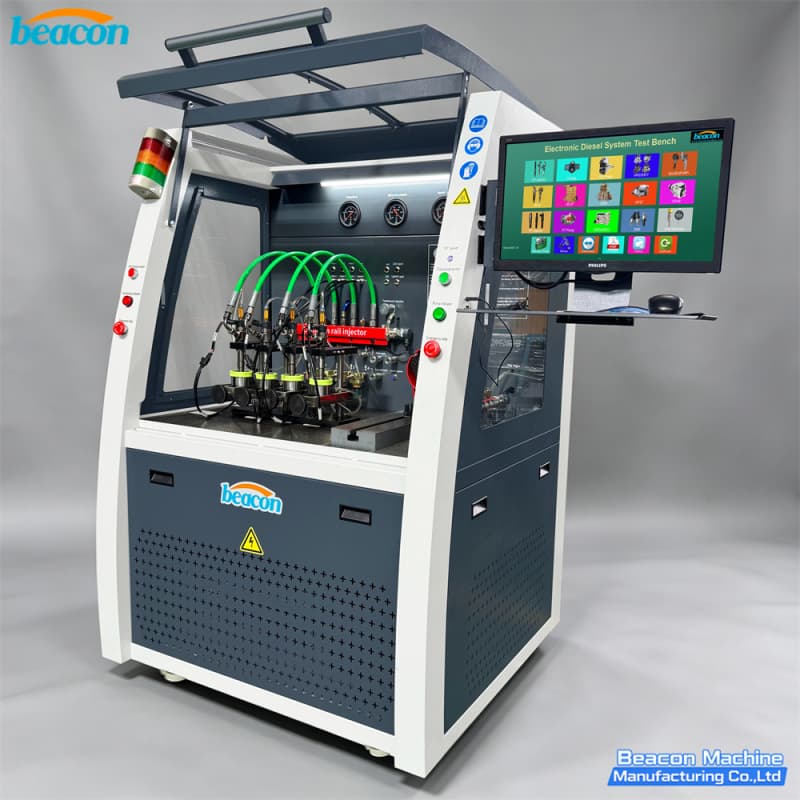

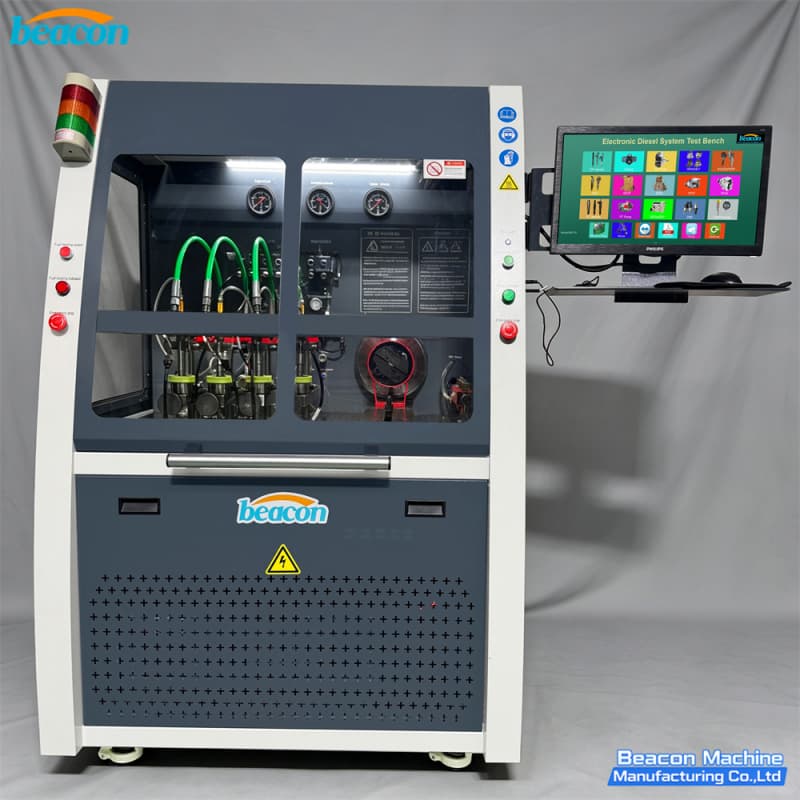

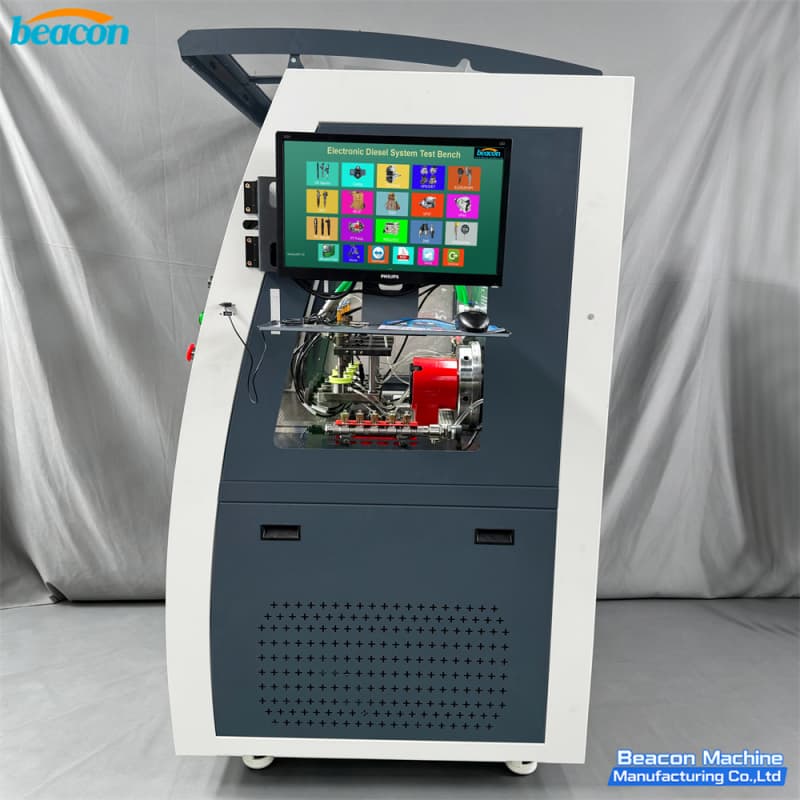

CR1028 4 Injectors Simultaneous Testing Common Rail Injector Test Bench 4 Flow Sensors

CR1028 Common Rail Injector Test Bench tests 4 injectors simultaneously with 4 independent flow sensors for improved testing efficiency

Get in touch

Details

CR1028 Common Rail Injector Test Bench - 4 Injectors Simultaneous Testing

The CR1028 is a high-pressure common rail electronic control comprehensive performance test bench designed for professional diesel injection workshops. This upgraded version now supports testing 4 injectors simultaneously with 4 independent injector flow sensors working at the same time, dramatically improving testing efficiency by up to 4 times compared to single-injector testing systems.

Key Features

4 Injectors Simultaneous Testing - Tests four common rail injectors at the same time, each with its own dedicated flow sensor for precise measurement
4 Independent Flow Sensors - Each injector has its own flow sensor working simultaneously, providing individual flow rate data for each injector in real-time
Improved Testing Efficiency - Complete testing of 4 injectors in the same time it takes to test 1 injector on conventional test benches
Integrated Automatic Operation - One-key operation for speed, rail pressure, flow measurement, and report generation
Supports Multiple Injector Types - Tests solenoid valve type and piezoelectric crystal type injectors from Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins and more
Comprehensive Testing - Supports common rail injectors, common rail high-pressure pumps, EUI/EUP, HEUI injectors, and HPO pumps
Full Database - Complete test data matching original factory standards, fully open database allowing addition of new part numbers
Injector Compensation Code Generation - Can generate compensation codes for various injector types

Technical Parameters

Power	7.5 kW
Dimensions	115x107x170 cm
Weight	850 kg
Max Testing Pressure	2000 bar+
Power Supply	380V Three-Phase Five-Wire
Simultaneous Injectors	4 (with 4 flow sensors)
Operating Temperature	-10 to 50 C
