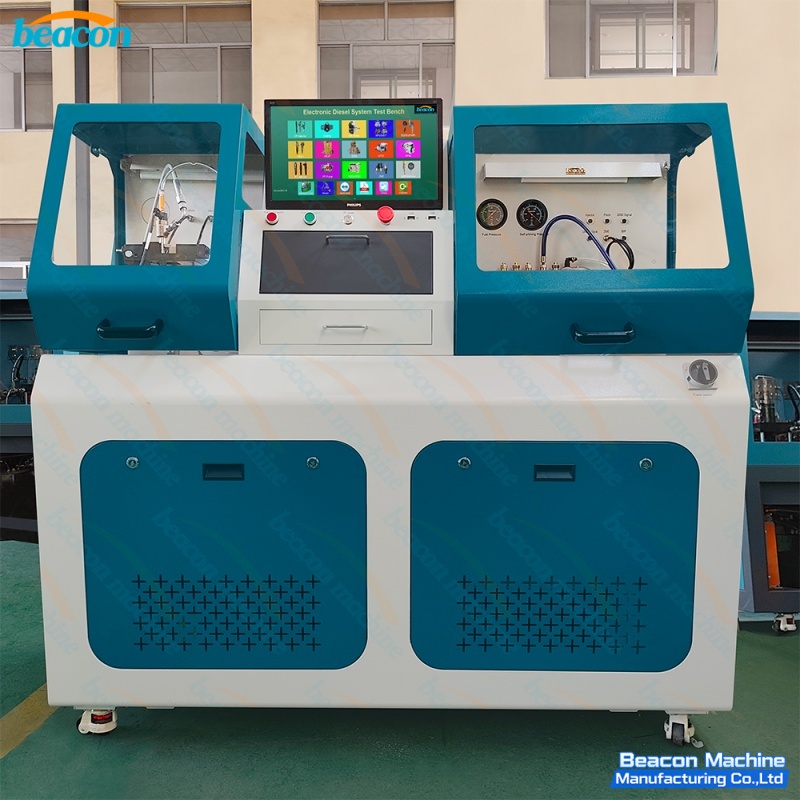

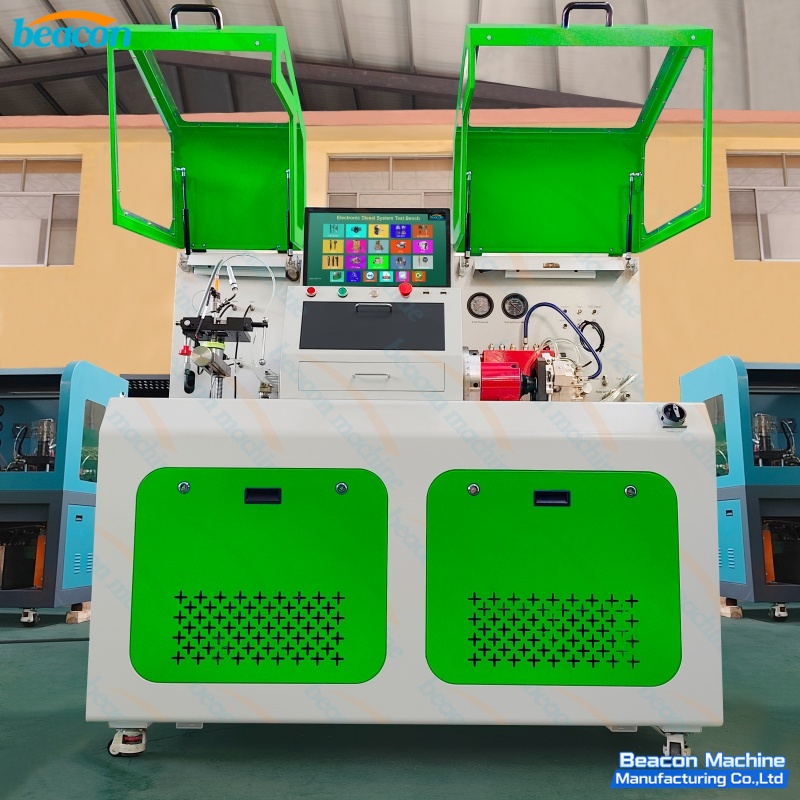

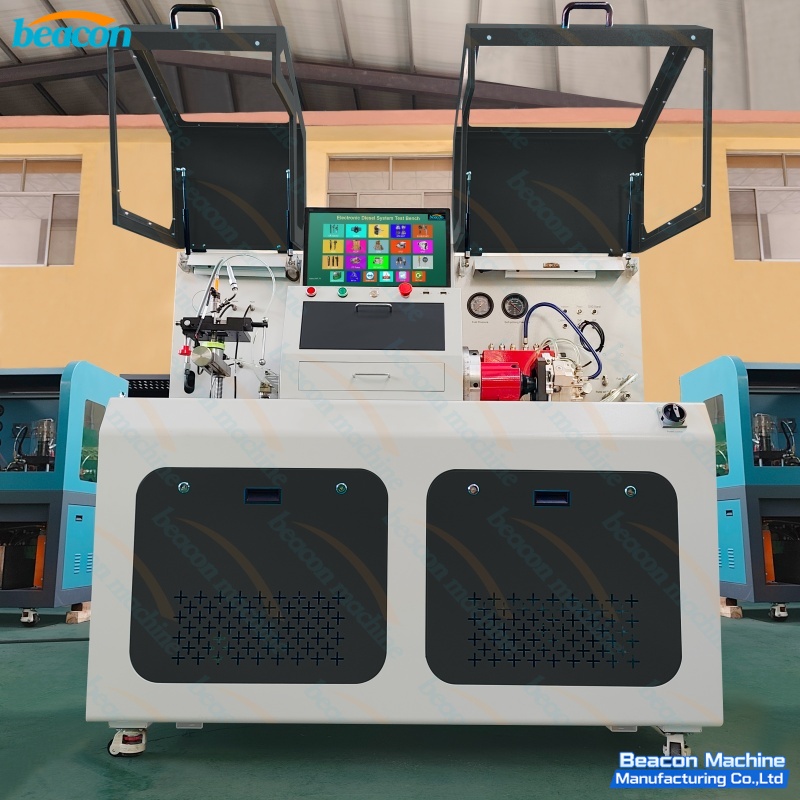

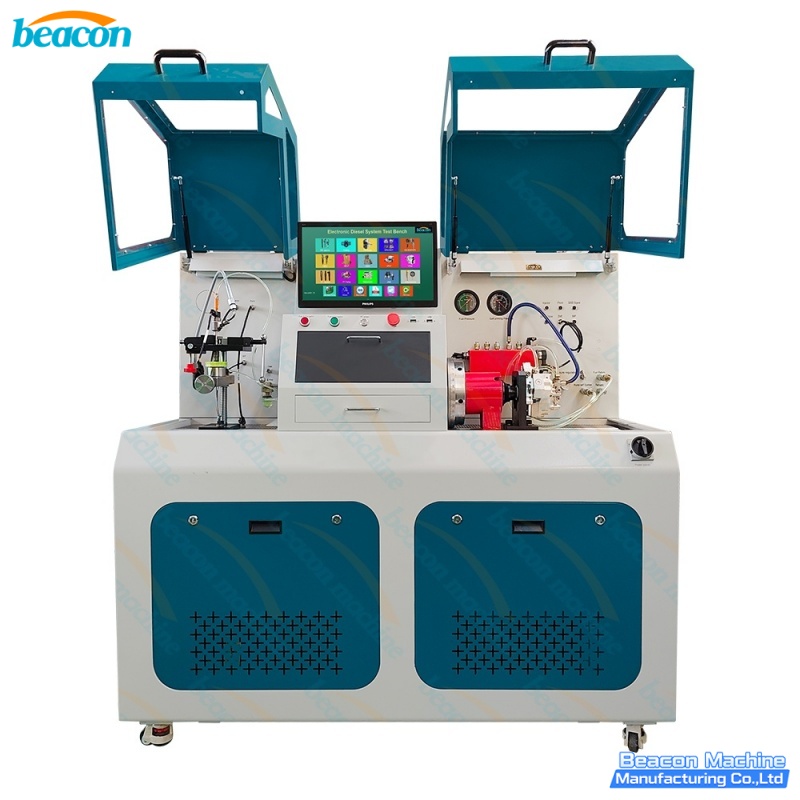

CR-IP800 Common Rail Injector and Pump Test Bench With EUI EUP HEUI Caterpillar Testing Function

The CR IP800 is a versatile and high-performance diesel fuel system test bench designed for modern workshops. It is capable of fully automatic testing for a wide range of common rail injectors (including 4-pin Bosch CRIN4 and piezoelectric types) and high-pressure pumps. The system integrates advanced functions such as injector coding, BIP (Begin of Injection Period) testing, and specialized component diagnostics for ZME, DRV, and IMV valves. Powered by a 7.5KW motor, it provides a stable and accurate environment for professional fuel system calibration.

• All-in-One Solution: Tests injectors, injection pumps, and by adding optional packages, it can test EUI/EUP and HEUI systems.

• Advanced Coding Support: Supports QR coding for Bosch, Denso, Delphi, and Siemens injectors to ensure precise engine performance.

• BIP Function: Features "Begin of Injection Period" testing for precise solenoid valve response timing.

• Specialized Injector Support: Compatible with both 2-pin and 4-pin (CRIN4) injectors and piezoelectric ceramics.

• Comprehensive Pump Testing: Specifically designed for Denso HP0 pump functions and dual ZME pump diagnostics.

• Component Diagnostics: Includes resistance and inductance testing for camshaft sensors, PCV, IMV, and metering units.

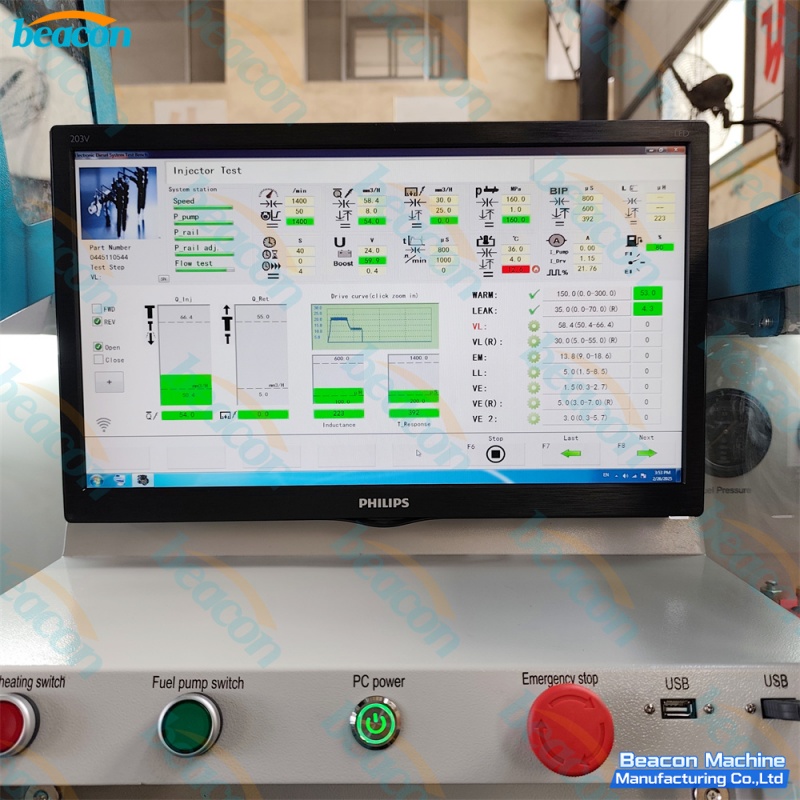

• User-Friendly Industrial PC: Controlled by a real-time Windows system with a multi-language interface.
