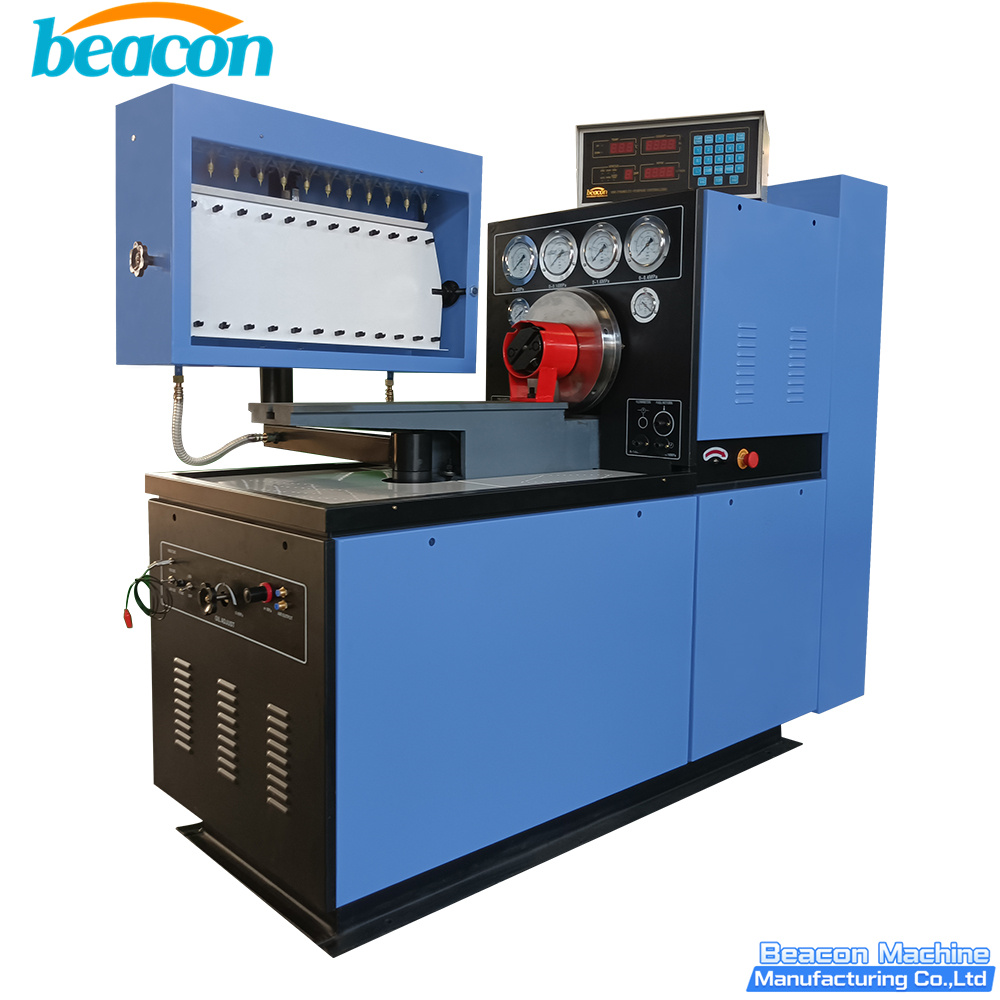

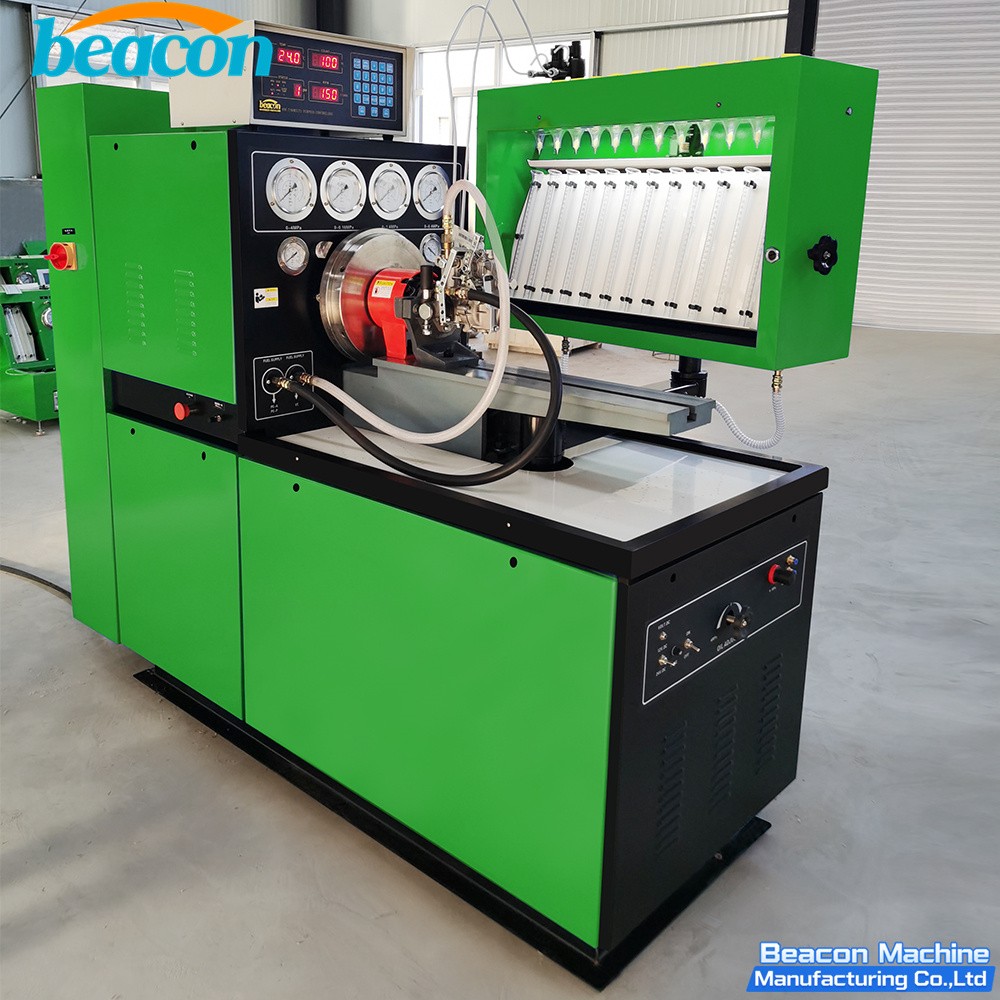

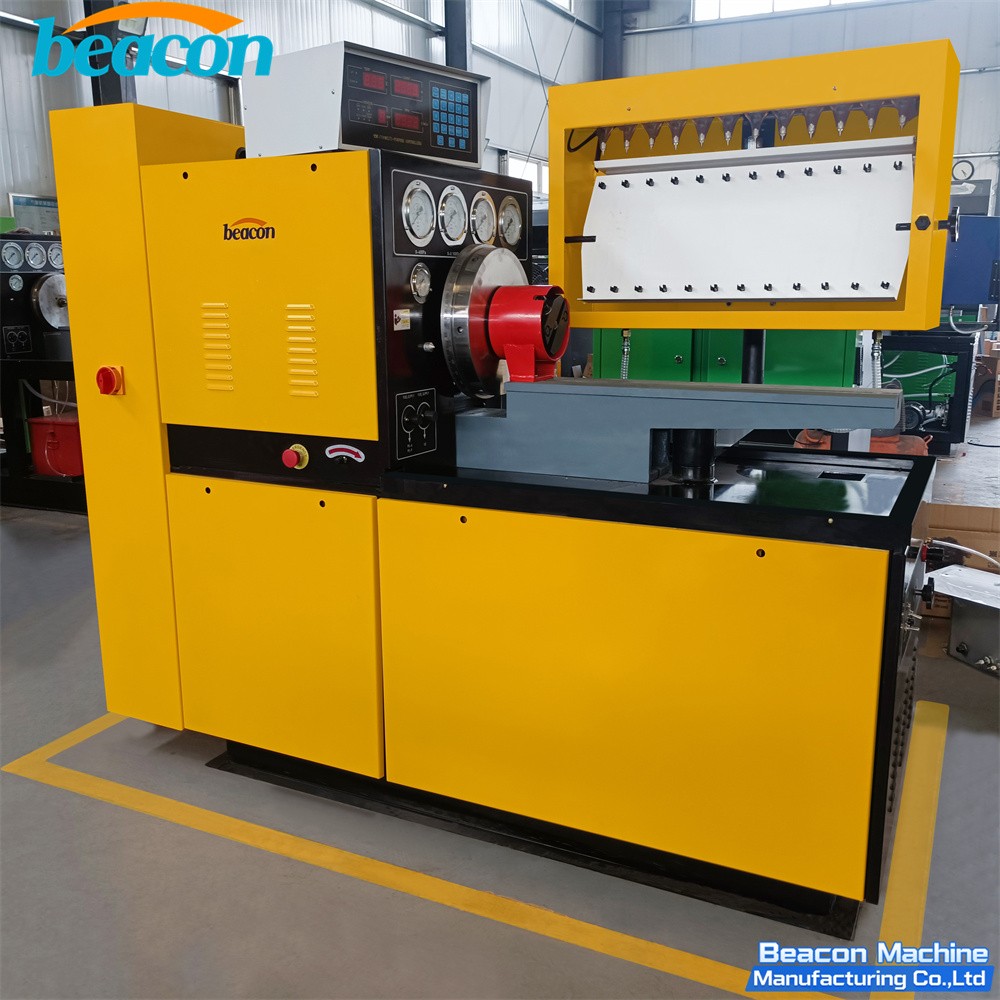

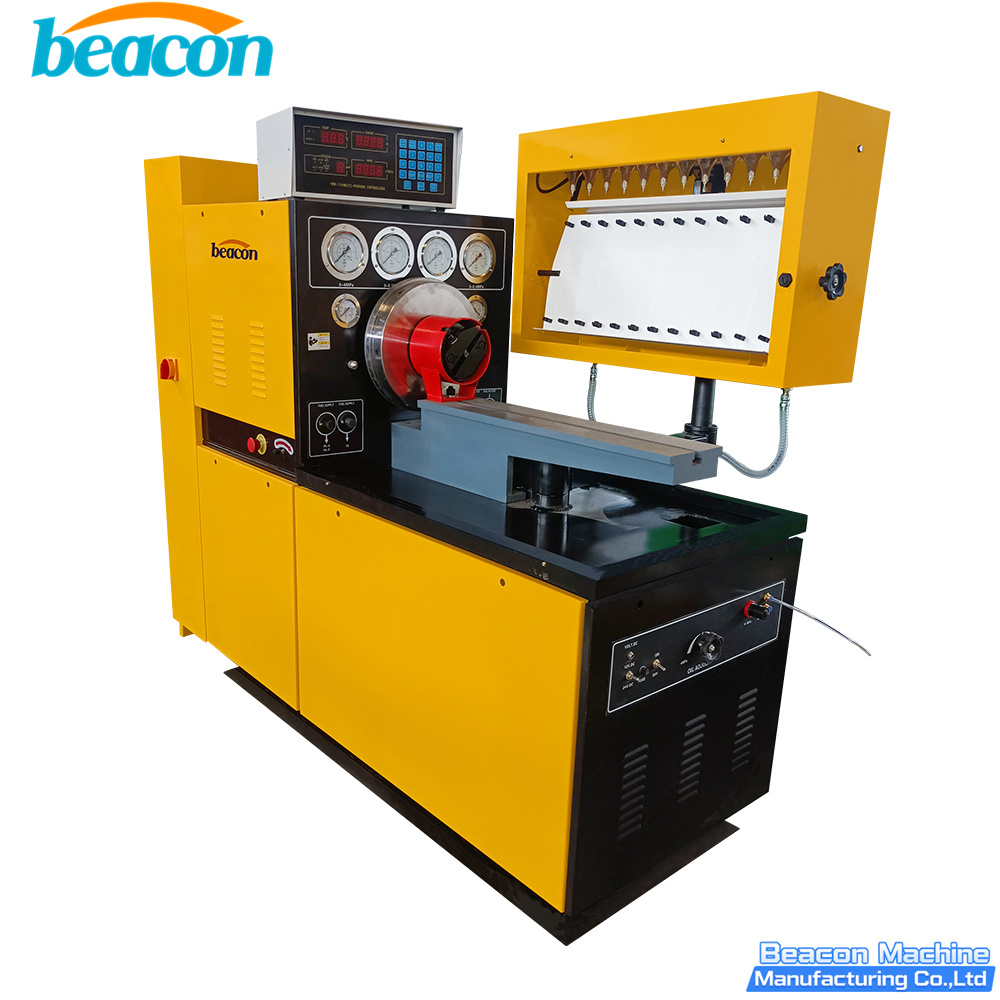

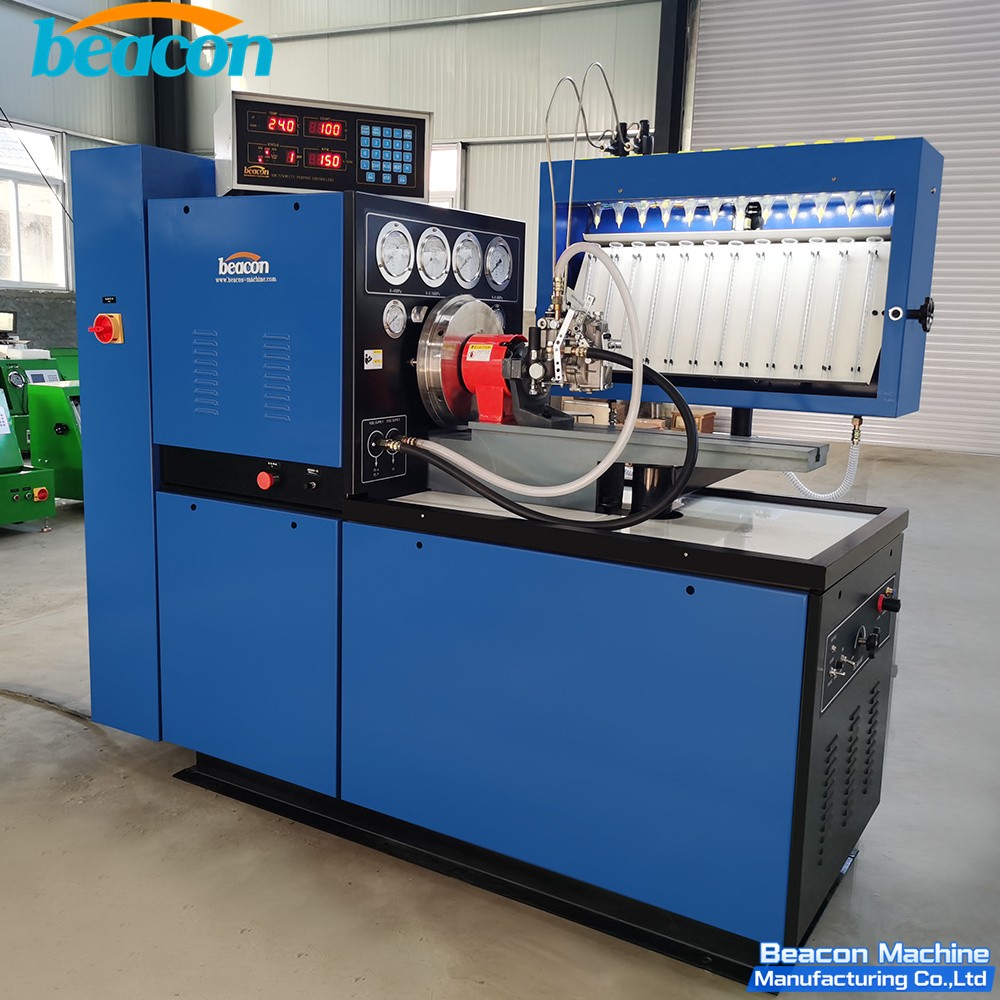

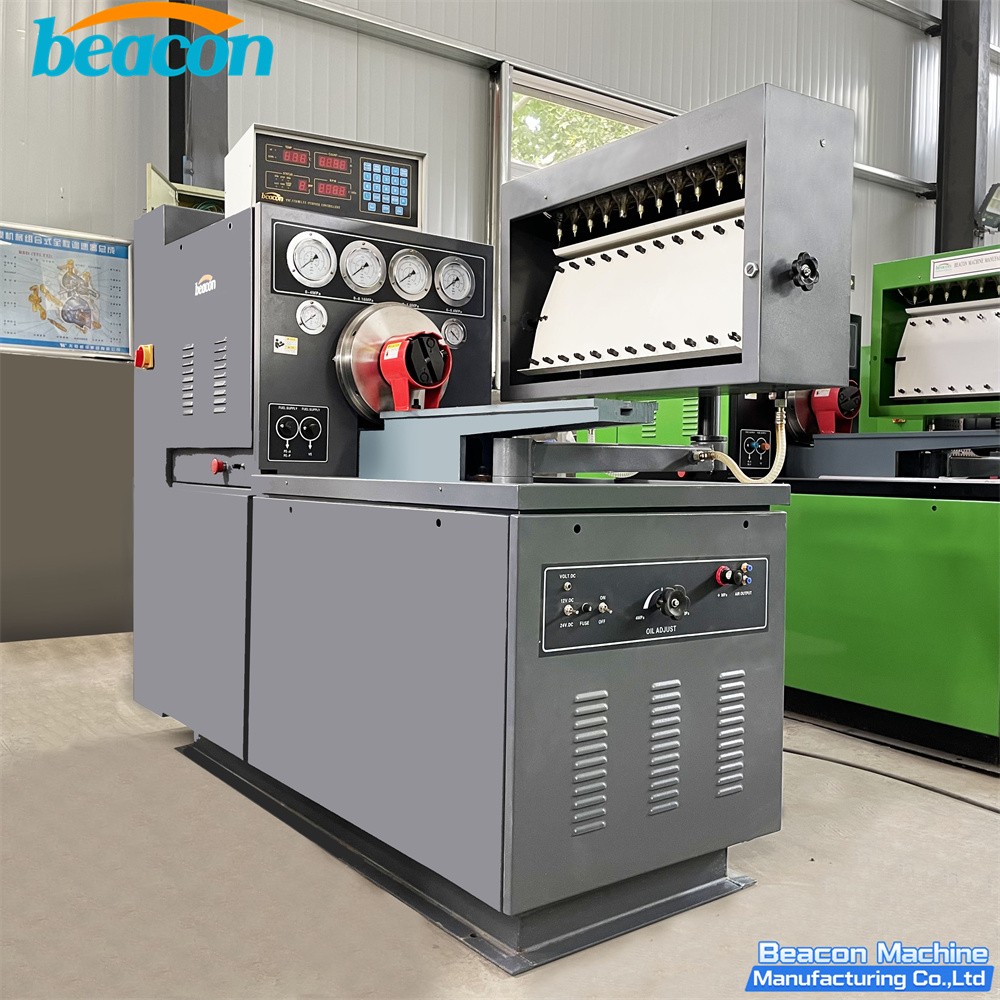

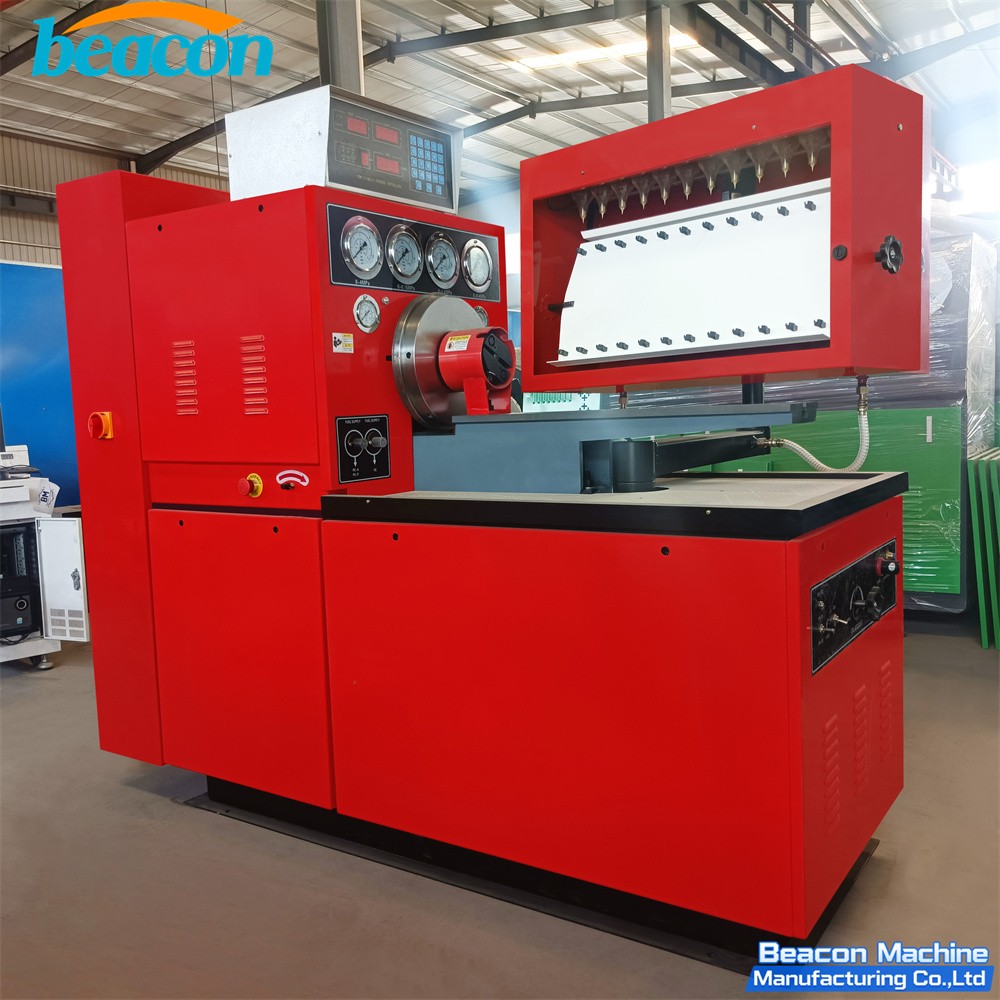

12PSB Mechanical Diesel Fuel Injection Pump Test Bench

The 12PSB Euro II Mechanical Diesel Pump Test Bench is a classic and highly reliable diagnostic equipment designed for the maintenance and calibration of mechanical fuel injection pumps. It is specifically engineered to meet the requirements of Euro II standard diesel engines, providing a stable platform for comprehensive pump testing.

This machine is powered by a high-performance motor (standard 11KW) and utilizes a frequency converter for stepless speed regulation from 0 to 4000 RPM. With its 12-cylinder measurement system, the 12PSB allows for precise monitoring of oil quantity, injection timing, and governor characteristics, making it an essential tool for professional diesel service stations and pump repair workshops.

• 12-Cylinder Capability: Supports simultaneous testing of up to 12 cylinders, suitable for a wide range of heavy-duty and automotive mechanical pumps.

• High Power & Stability: Equipped with a standard 11KW motor and LS (LG) frequency converter for high torque and stable rotation.

• Multi-Function Testing: Performs oil supply amount measurement, injection interval timing, governor performance checks, and pressure sealing tests.

• Precise Control: Features advanced digital display for speed, temperature, and stroke counting, ensuring accurate calibration results.

• Built-in Accessories: Includes a gas pump with storage function and a high-accuracy DC power supply (12V/24V) for solenoid testing.

• Durable Design: Robust industrial construction with a weight of approximately 800kg ensures vibration-free operation at high speeds.
