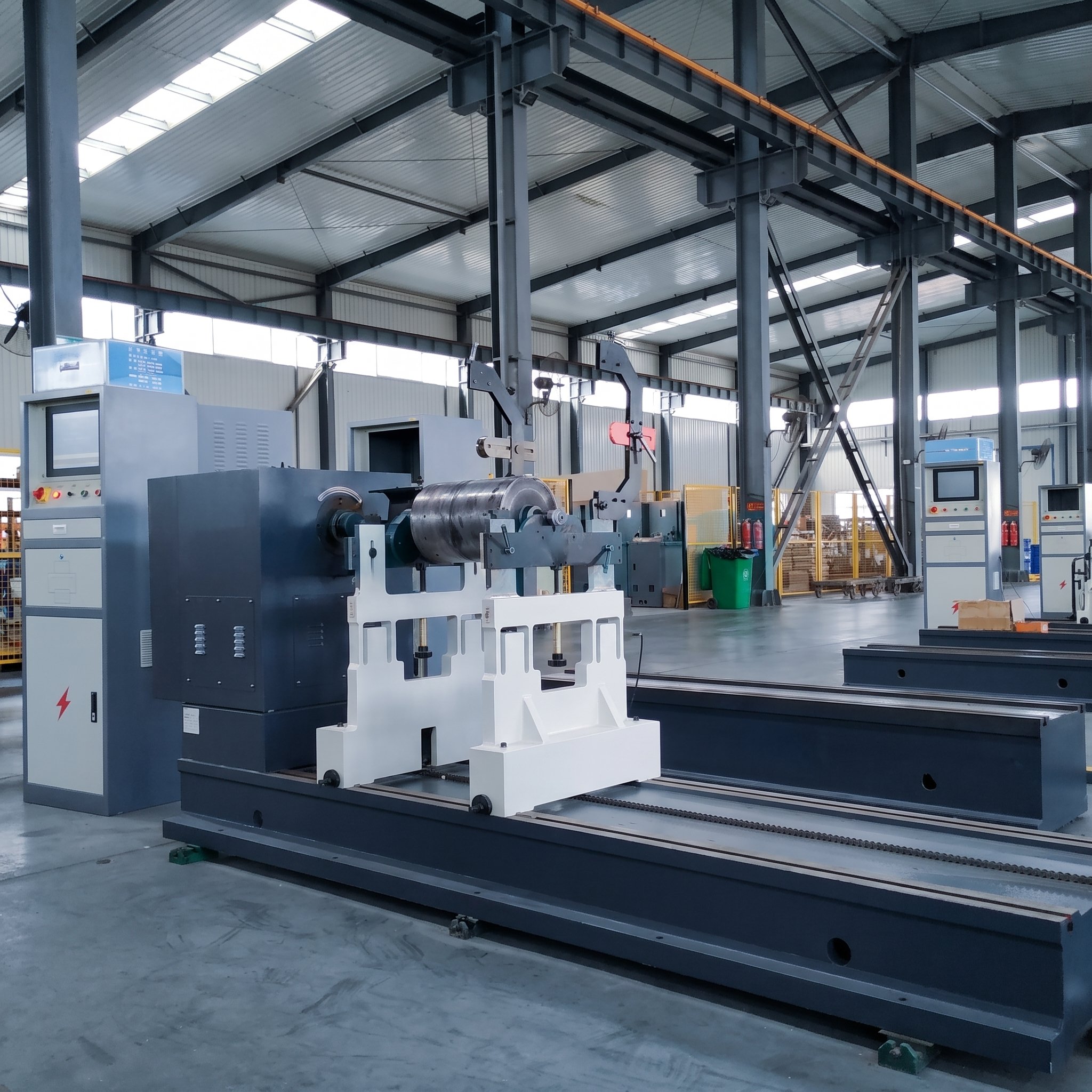

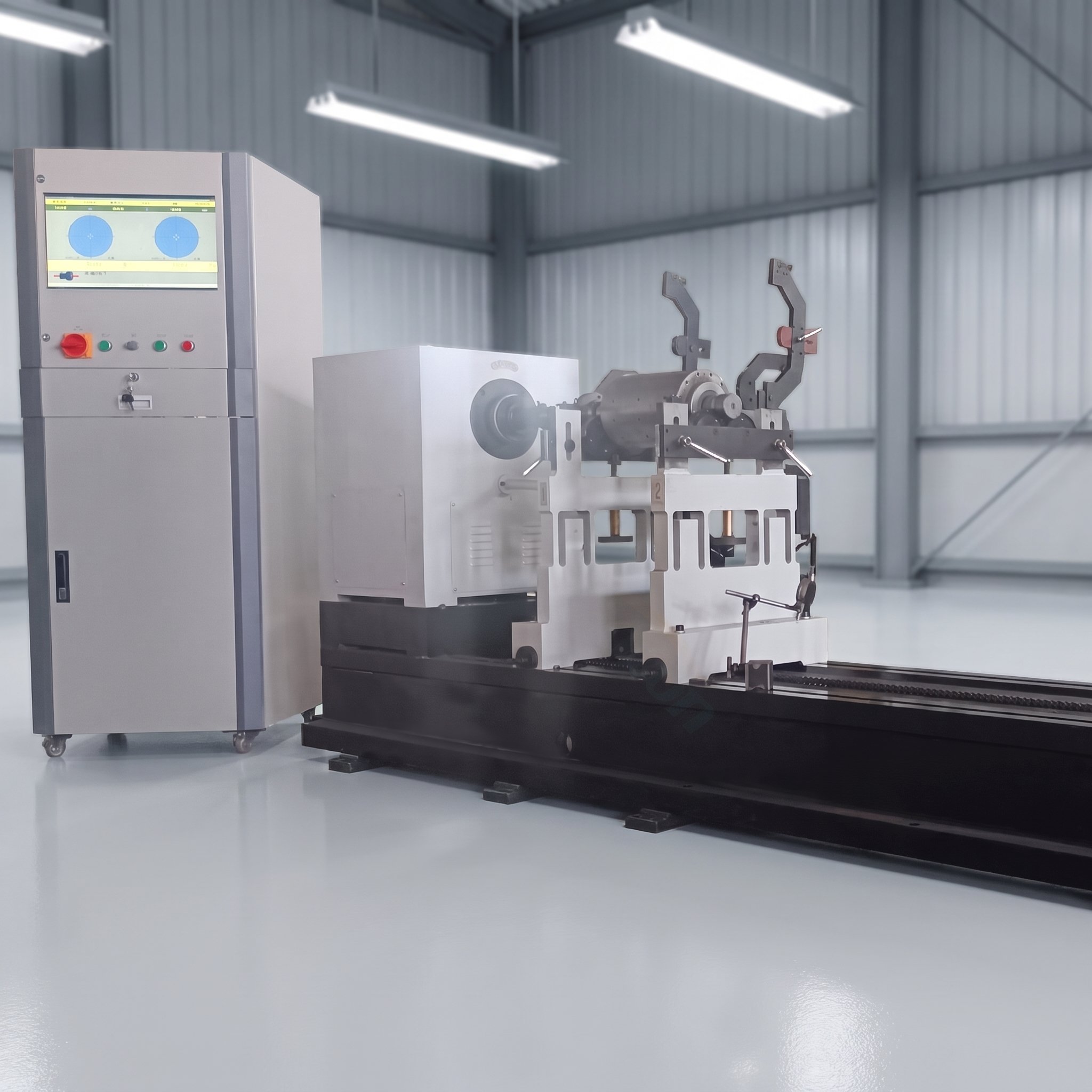

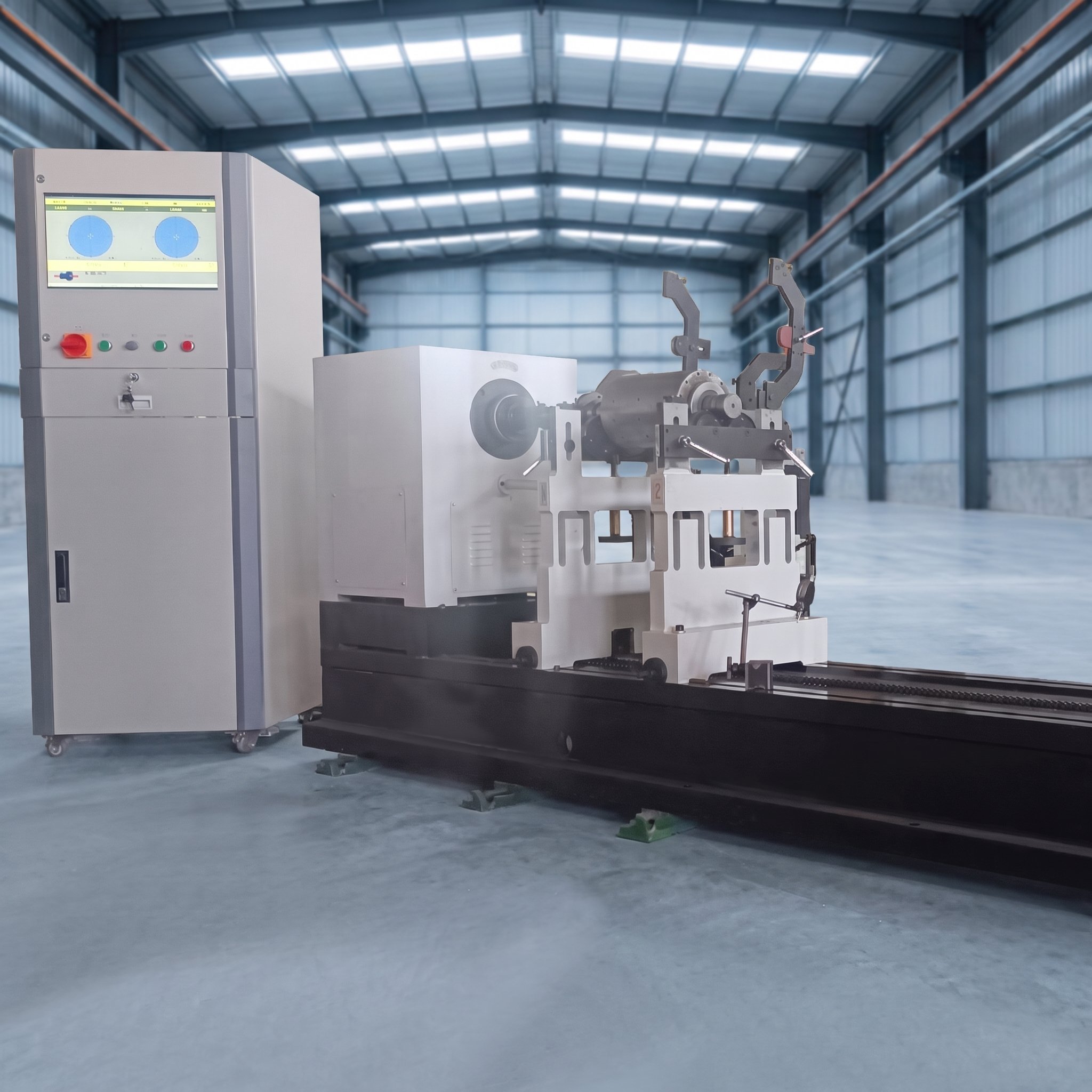

YYW-300S Universal Joint Dynamic Balancing Machine 10-300 kg

Product Overview and Key Features

The YYW-300S Universal Joint Dynamic Balancing Machine is a hard bearing dynamic balancing machine designed for workshop precision balancing of rotors weighing 10 to 300 kg. Built strictly according to GB/T 4201-2006 standard by BEACON MACHINE, this unit uses roller bearing universal joint drive and features a 19 inch LCD screen with industrial control computer processing data.

Compatible with single-plane, double-plane, and multi-faceted interface measurements. Suitable for large shafts, plates, and rotors with center of gravity overhung. Widely used in paper making machines, textile machines, agricultural machine, electric motors, and blower fans.

Technical Specifications and Measuring System

Work-piece weight range 10-300 kg with universal joint drive. Maximum diameter 1200 mm. Distance between two bearing frames 60-1800 mm. Distance from universal joint interface to right swing frame center up to 2000 mm. Journal diameter scope 20-90 mm with standard bearing roller frame.

Min achievable residual unbalance amount 1 gmm/kg. Unbalance reduction ratio 90%. Rotating speed 200-1500 r/min. Motor power 5.5 kW. Drive mode via universal spindle coupling. 19 inch flat panel LCD monitor with dedicated balancing machine software and 32-bit industrial control computer.

Typical Industries and Rotor Applications

The YYW-300S serves multiple industries for precision rotor balancing. Primary applications include paper making machine rollers and printing cylinders, textile machine spindles and rollers, agricultural equipment driveshafts and rotors, electric motor rotors and armatures, and blower fan impellers.

Also suitable for pump impellers, large motor rotors, gearbox components, and any rotating parts from 10 to 300 kg with diameter up to 1200 mm and length up to 1800 mm. The machining bed dimension 3000 mm with two T-slot grooves allows flexible fixture positioning.

Operating Procedure and Workflow

Standard operating workflow: 1) Mount rotor between bearing frames on the universal joint. 2) Adjust swing frame positions along the 3000 mm lathe bed. 3) Connect piezoelectric sensor assemblies to elastic beam measuring positions. 4) Start 5.5 kW motor via Shenzhen IVNT frequency converter for stepless speed regulation. 5) Drive rotor to working speed 200-1500 r/min. 6) Measure initial unbalance on 19 inch LCD display. 7) Calculate required correction weight and angle. 8) Apply correction (drill or add weight). 9) Re-measure to verify residual unbalance ≤1 gmm/kg achieved.

Equipment configuration includes lathe bed 3000 mm, two standard bearing frames made from QT450 cast iron with cantilever roller bearing and adjustable clamp safety frame, universal joint driven part with safety cover, reference signal sensor, LENOVO anti-interference keyboard and mouse, strong current system with domestic famous brand low-voltage components, and a complete set of foundation bolts and leveling tools.

• Universal joint dynamic balancing machine for rotors 10-300 kg

• Hard bearing design strictly per GB/T 4201-2006 standard

• 5.5 kW motor with Shenzhen IVNT stepless frequency converter

• Maximum workpiece diameter 1200 mm, length 1800 mm

• Min residual unbalance 1 gmm/kg, reduction ratio 90%

• Rotating speed 200-1500 r/min, journal diameter 20-90 mm

• 19 inch LCD display with industrial control computer

• Self-developed balancing machine software in 32-bit

• QT450 cast iron bearing frames with cantilever roller bearing

• Piezoelectric sensor on elastic beam for vibration measurement

• Suitable for paper, textile, agriculture, motor, fan industries

• Universal spindle coupling for balanced drive without slip

• LENOVO anti-interference keyboard and mouse included

• Safety cover on universal joint for operator protection

• 3000 mm lathe bed with two T-slot grooves for fixture mounting
