LC830A Portable Field Dynamic Balancer Vibration Analyzer

Product Overview and Key Features

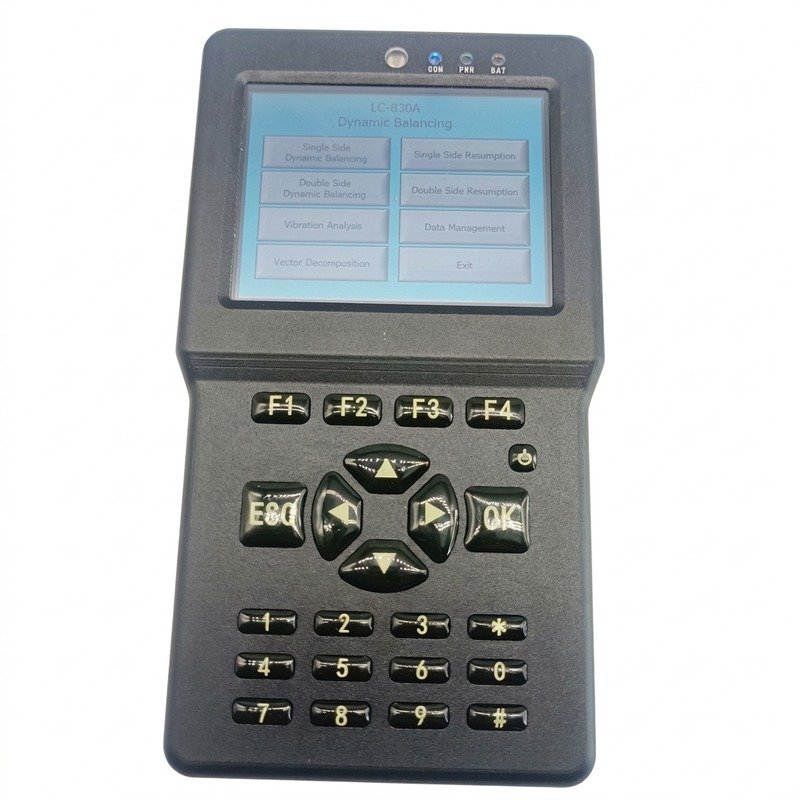

The LC830A Portable Field Dynamic Balancer is a professional handheld vibration analyzer designed for on-site rotor balancing of rotating machinery. Built by BEACON MACHINE Manufacturing, this instrument features a color LCD display with 8 function modules covering single plane balancing, double plane balancing, vibration spectrum analysis, data management, and vector decomposition.

Compact handheld design with complete English menu, 12-key numeric keypad, F1-F4 function keys, and 4-way navigation. Battery powered for field use. Suitable for rotor weights from 1 to 30000 kg without disassembly of the machine.

Measurement Modes and Technical Capabilities

The LC830A supports multiple measurement modes covering the full workflow of field dynamic balancing: initial vibration measurement, trial weight input and test, balancing weight calculation, residual vibration verification, and data storage management.

Technical capabilities include single plane balancing (suitable for rotor diameter D >= 5L regardless of speed), double plane balancing (for D <= L at working speed > 1000 r/min), vibration spectrum FFT analysis for fault diagnosis, and vector decomposition for complex imbalance patterns. Photoelectric speed sensor with reflective tape provides phase reference.

Typical Industries and Rotor Applications

The LC830A is widely used across heavy industry, mining, paper mills, power plants, and field service workshops. Compatible rotor types include motor rotors, pump impellers, fan blades, turbine rotors, paper rollers, mill rolls, drive shafts, and machine tool spindles.

Typical applications span 9+ industrial sectors including agriculture machinery, automotive parts, fans and pumps, textiles and grinding wheels, motor manufacturing, aerospace and marine, medical and precision instruments, power and metallurgy, and EV and wind energy. Same instrument covers both workshop and on-site environments.

Kit Contents and On-site Operating Procedure

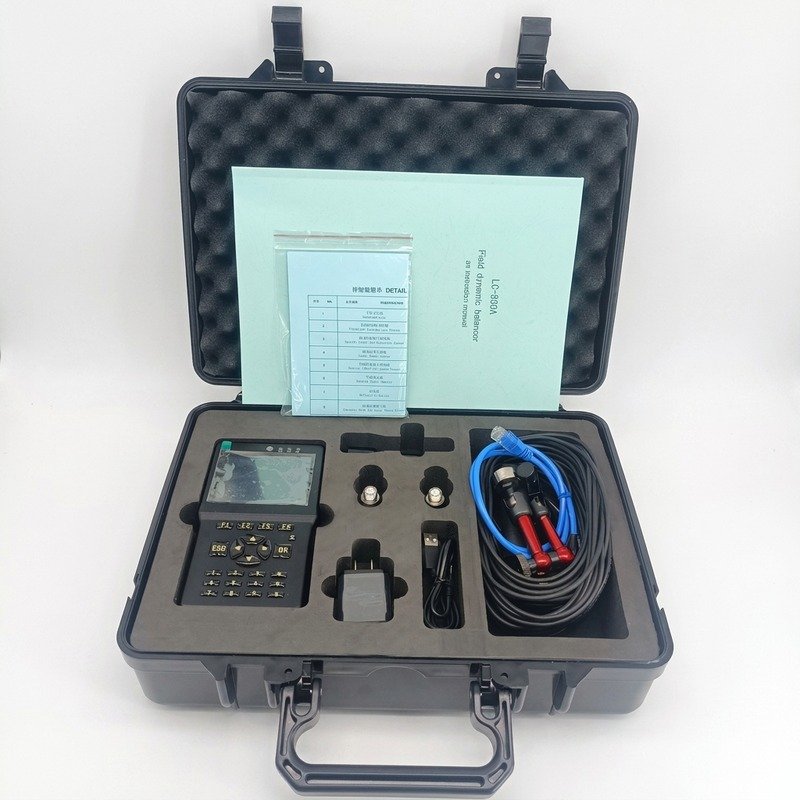

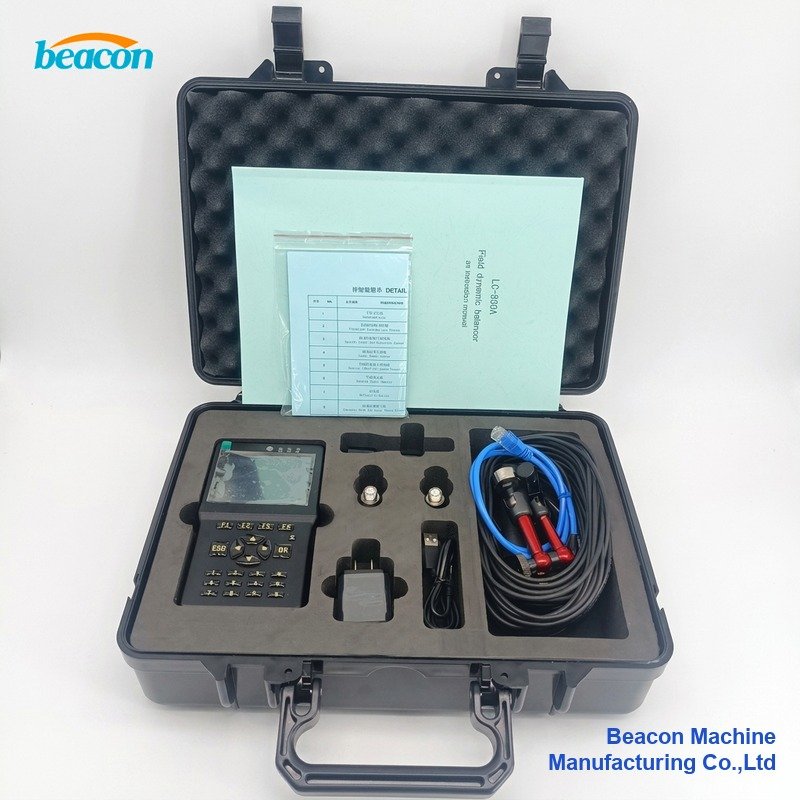

Complete kit includes the LC830A analyzer mainframe, two vibration sensors with magnetic bases, photoelectric speed sensor with reflective tape, signal cables with crocodile clips, USB charging cable, power adapter, English manual on CD/USB, and certificate of conformity, all housed in a rugged portable carrying case with custom foam inserts.

Standard on-site operating procedure: 1) Mount vibration sensors on bearing housings with magnetic bases. 2) Apply reflective tape to rotor shaft. 3) Connect all cables. 4) Power on, select balancing mode. 5) Measure initial vibration. 6) Add trial weight. 7) Measure trial vibration. 8) Calculate correction weight and angle. 9) Apply correction. 10) Verify residual vibration. No machine disassembly required throughout the entire process.

• Portable field dynamic balancer for on-site rotor balancing 1-30000 kg

• Single plane and double plane balancing modes with vector decomposition

• Built-in FFT vibration spectrum analysis for fault diagnosis

• Photoelectric speed sensor with reflective tape for phase reference

• Two piezoelectric accelerometers with magnetic bases included

• Color LCD display with 8 menu functions and full English interface

• Rechargeable battery for field use, no external power required

• Trial weight influence coefficient calculation method

• No machine disassembly required during balancing procedure

• Suitable for pump, motor, fan, turbine, roller, shaft applications

• Complete kit in rugged carrying case with custom foam inserts

• Ideal for mining, paper, power, automotive, and field service workshops
