G4-108 DAF F2P Simple Repair Kit PACCAR MX-11 MX-13 Common Rail

G4-108 DAF F2P Simple Repair Kit — Service Kit for PACCAR MX-11 / MX-13 Common Rail Injectors

1. What is the G4-108 DAF F2P Simple Repair Kit?

The BEACON G4-108 DAF F2P Simple Repair Kit is a precision service kit designed for the on-vehicle repair and spring pre-load adjustment of DAF F2P series solenoid-operated common rail injectors used in PACCAR MX-11 and MX-13 Euro 6 engines.

Unlike the BEACON G4-106 DPF F2P injector disassembly tool — which is used to pull the injector out of the cylinder head — the G4-108 is the next-step service kit that workshops use after the injector is on the bench. It includes the dedicated solenoid valve, the matching solenoid bracket, the M24.5 / M4x0.5 threaded adapters, and the A/B shim sets that allow the technician to re-shim the solenoid spring back to OEM specification.

For the detailed application background, common failure modes, and complete step-by-step workshop workflow, see the companion BLOG post: G4-108 BLOG: full DAF F2P simple repair kit overview.

2. DAF F2P Common Rail Injector Background

The "F2P" designation refers to the latest family of common rail injectors fitted to the PACCAR MX-11 (10.8L) and PACCAR MX-13 (12.9L) Euro 6 engines, which power the current DAF XF 106, XF 105 (late Euro 6), CF 85, CF 75 and CF 65 truck ranges.

Compared with the older F2 injector generation (Euro 4 / Euro 5, MX 12.6L platforms), the F2P family operates at a substantially higher rail pressure (up to 2500 bar) and uses a 16-hole micro-orifice nozzle with multi-event injection. The solenoid response time is well under 0.2 ms, which gives much tighter injection-quantity control but also means that any change to the solenoid spring pre-load directly alters injection quantity, response and rail-pressure stability.

This is why DAF, Bosch and PACCAR dealers insist that F2P injectors returning to the workshop must have the solenoid spring re-shimmed to the exact original thickness — typically between 1.00 mm and 1.40 mm. The G4-108 is built to do exactly that job.

3. What Does the G4-108 Kit Include?

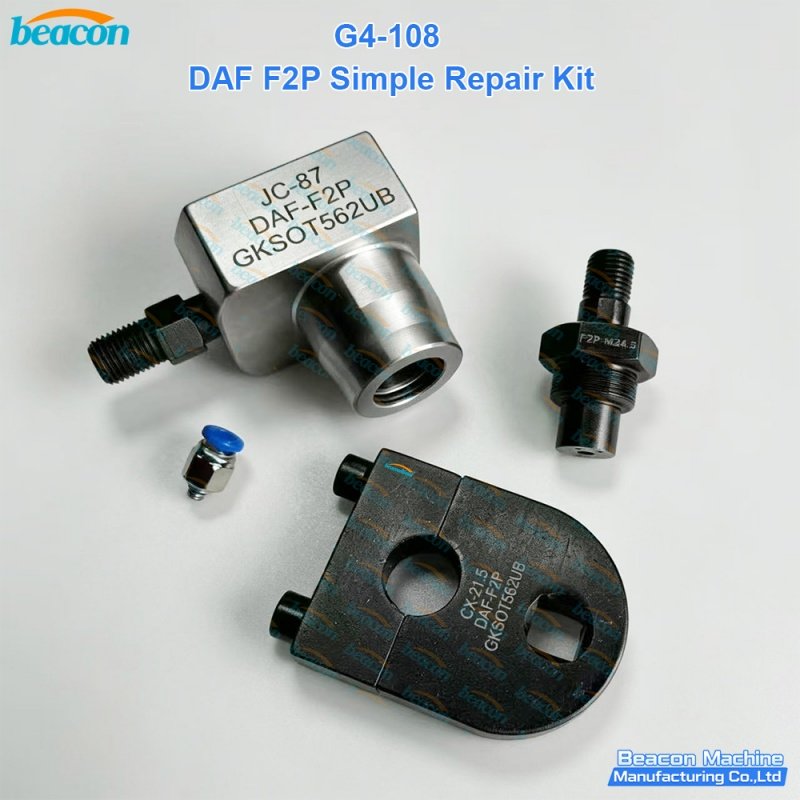

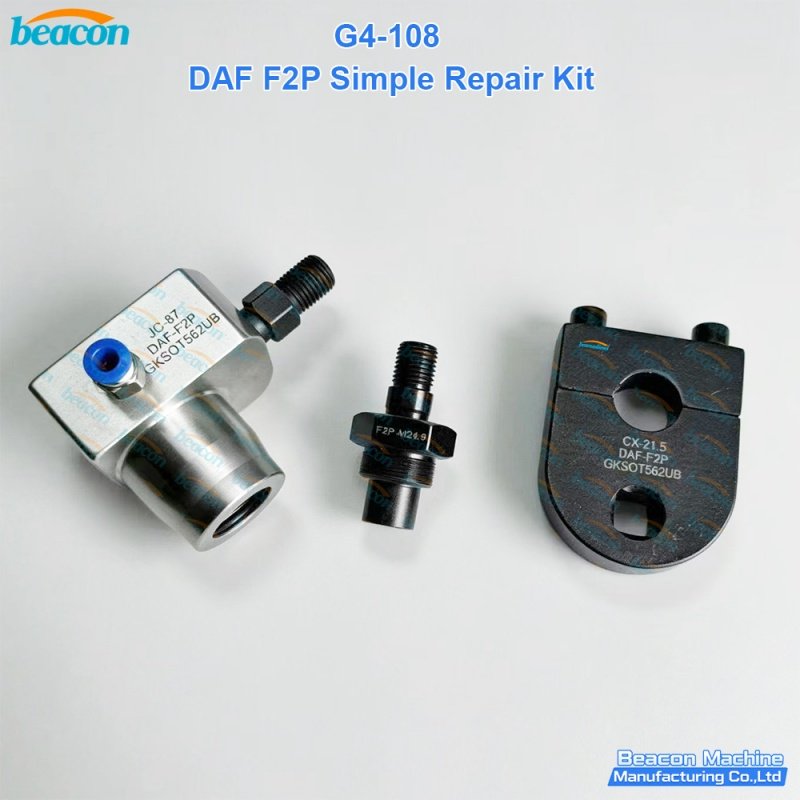

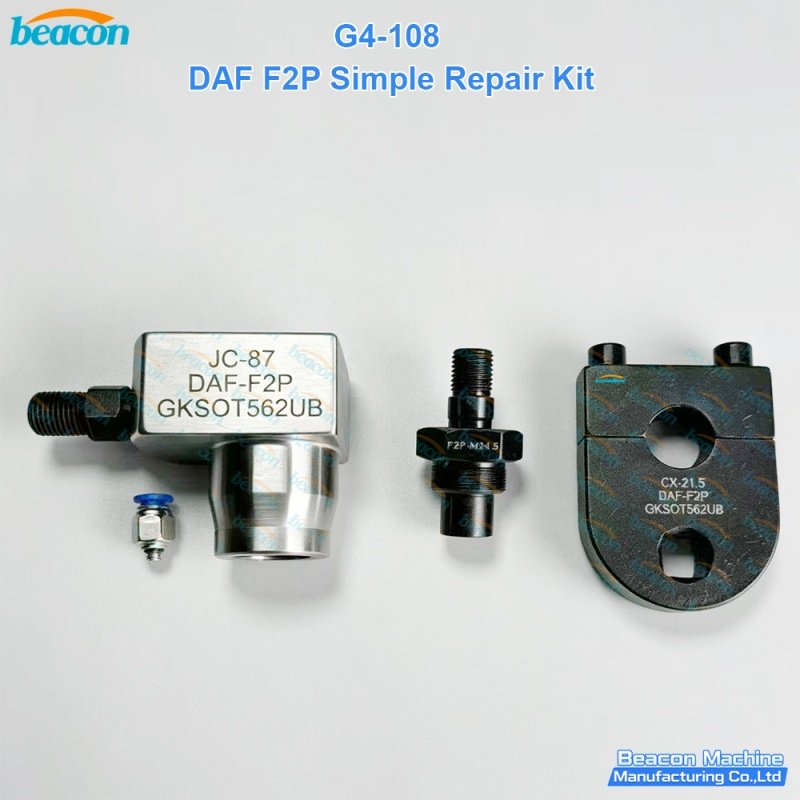

• Solenoid valve — engraved JC-87 / DAF-F2P / GKSOT562UB; the in-vehicle solenoid assembly that the shim sets adjust against.
• Solenoid mounting bracket — engraved CX-21.5 / DAF-F2P / GKSOT558UB; precision-locates the solenoid body during shim selection.
• M24.5 threaded adapter stud — holds the injector body in the bench fixture during service.
• M4x0.5 fine-thread locating pin — aligns the solenoid to the injector body to within 0.01 mm.
• Banjo bolt with blue protective cap — high-pressure oil return sealing.
• Shim set A — 1.40 → 1.20 mm; 10 compartments, 0.02 mm step, 50 shims per compartment.
• Shim set B — 1.20 → 1.00 mm; 10 compartments, 0.02 mm step, 50 shims per compartment.

4. Compatible DAF / PACCAR Injector Models

The G4-108 is engineered for the Bosch CRI2-16H common rail injectors fitted to the PACCAR MX-11 (10.8L) and MX-13 (12.9L) Euro 6 engines. Typical Bosch and DAF / PACCAR OE reference numbers covered by this kit (please verify against Bosch ESI[tronic] 2.0 or DAF DAVIE for the exact application):

Bosch injector part numbers (0 445 120 xxx series):

• 0 445 120 218 / 0 445 120 219 / 0 445 120 220 / 0 445 120 221 / 0 445 120 222 / 0 445 120 223 / 0 445 120 224 / 0 445 120 292 / 0 445 120 293 / 0 445 120 504 / 0 445 120 505 / 0 445 120 506 / 0 445 120 511

DAF / PACCAR OE injector reference numbers:

• 1743074 / 1881561 / 1943970 / 2036182 / 2036752 / 2133093 / 2133095 / 2188774 / 2192957 / 2231284

Typical engine / vehicle applications: DAF XF 105 (Euro 6 late build 2013-2017), DAF XF 106 (2017+), DAF CF 65 / CF 75 (MX-11), DAF CF 85 (MX-13).

Product Advantages

• Engineered specifically for DAF F2P common rail injectors — dedicated solenoid valve (JC-87) and matching solenoid bracket (CX-21.5) match the F2P envelope exactly, eliminating improvised workshop fixtures.
• Step-2 service kit after G4-106 disassembly — the G4-108 is the next-step service kit that workshops use once the injector is on the bench, paired with the BEACON G4-106 DPF F2P injector disassembly tool for injector removal and the G4-100 DAF injector removal tool kit for engine-side extraction.
• Full 1.00 mm → 1.40 mm shim coverage in 0.02 mm steps — the A set covers 1.40 → 1.20 mm and the B set covers 1.20 → 1.00 mm, so the workshop can re-shim the F2P solenoid spring to OEM specification without sourcing shims locally.
• Hardened alloy steel + anodized aluminum construction — the solenoid valve, bracket and threaded adapters are precision-machined from hardened alloy steel and anodized aluminum for long service life in the workshop environment.
• Bosch CRI2-16H + DAF / PACCAR OE coverage — the kit covers the Bosch 0 445 120 xxx series (218 / 219 / 220 / 221 / 222 / 223 / 224 / 292 / 293 / 504 / 505 / 506 / 511) and the DAF / PACCAR OE series (1743074 / 1881561 / 1943970 / 2036182 / 2036752 / 2133093 / 2133095 / 2188774 / 2192957 / 2231284); please verify with Bosch ESI[tronic] 2.0 or DAF DAVIE before ordering.
• Foam-lined blow-molded case — the complete kit ships in a 40 × 30 × 20 cm case with a custom foam insert, ready for shop-floor use.
