G4-107 CP1 Pump Plunger Lapping Tool Bosch High Pressure Pump Service

G4-107 CP1 Pump Plunger Lapping Tool — Service Kit for Bosch CP1 Series High Pressure Pump Repair

1. What is the G4-107 CP1 Pump Plunger Lapping Tool?

The BEACON G4-107 CP1 Pump Plunger Lapping Tool is a precision service kit engineered for the in-shop lapping and re-conditioning of Bosch CP1 series high pressure injection pumps — covering both the plunger-and-barrel assembly and the control valve — when the pump is out of the engine and on the bench.

The kit is designed to put the plunger back into OEM surface finish and roundness specification without the workshop having to source a local lapping fixture. It ships in a foam-lined case with two grinding-paste syringes (coarse and fine), the dedicated plunger-holding fixture, the dedicated CP1 control valve grinding block, two star-knob locating / adjustment rods, the compression spring and steel balls used as spring-loaded locating contacts.

2. Why Does a Bosch CP1 Pump Need a Dedicated Lapping Tool?

The Bosch CP1 is a compact radial-piston high pressure pump used as the pressure source in many common rail diesel systems. It carries a 3-piston, 120-degree radial arrangement and produces the rail pressure demanded by the injectors mounted on the engine. Each piston runs in a precision plunger-and-barrel pair; the pump also carries a control valve that regulates the high-pressure chamber.

Plunger-and-barrel wear is the most common failure path on a CP1 pump that has been in service for a long time, or that has been exposed to contaminated fuel. Workshop symptoms include plunger scoring / wear, control valve seal failure, rail pressure drop, internal leakage, plunger sticking, tappet / roller wear, and plunger spring failure. The G4-107 is built to address the first four directly, by re-lapping the plunger and the control valve back into the OEM 1–3 µm plunger-to-barrel clearance band.

3. What Does the G4-107 Kit Include?

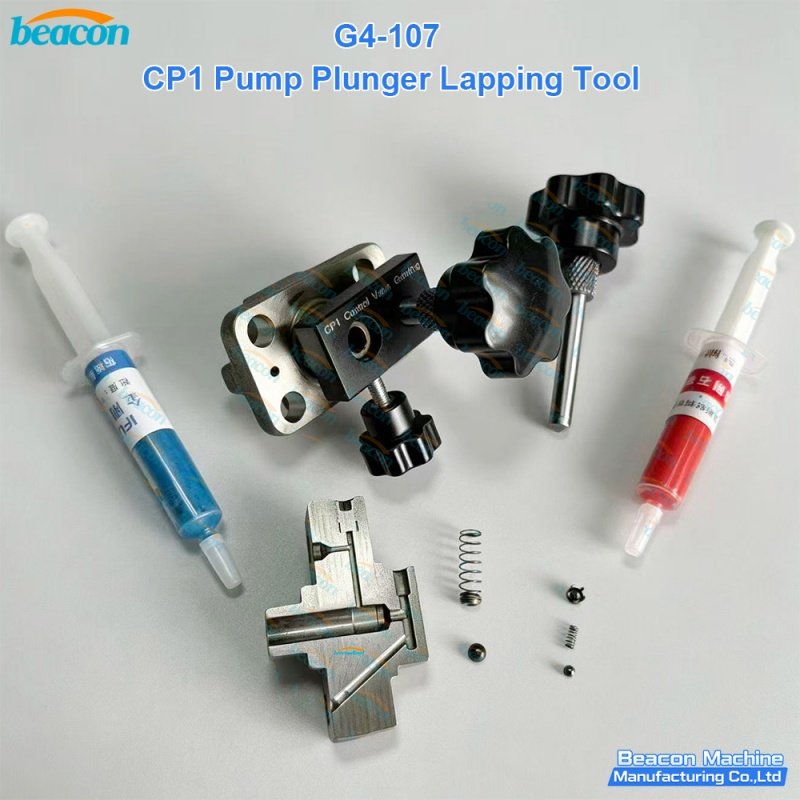

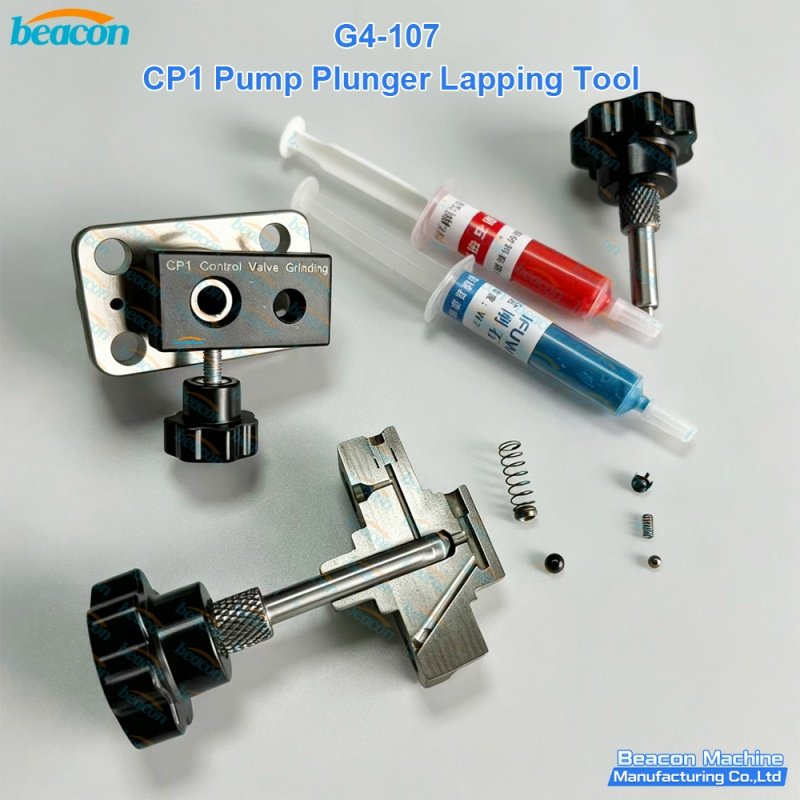

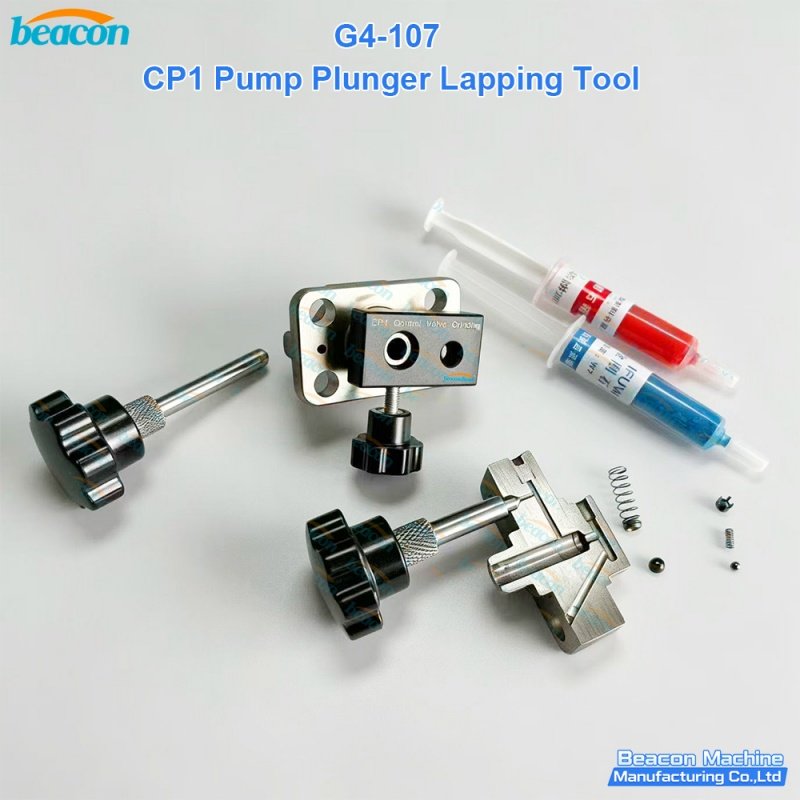

The kit ships as a foam-lined blow-molded case containing:

• Plunger lapping main body — star knob + knurled drive rod + black anodized holding block + silver flange base; locates the plunger barrel during lapping.
• Plunger locating rod — small star knob + knurled body + conical tip; holds the plunger on its centerline during rotation.
• CP1 control valve grinding block — engraved "CP1 Control Valve Grinding" / Gm1070; dedicated holder for the pump's control valve.
• Clamping / guide block — T-shaped steel fixture with horizontal slot and cylindrical pin; holds the workpiece during service.
• Spring-loaded contact set — compression spring + steel balls; provides constant contact force during lapping.
• Grinding-paste syringe (coarse) — blue 50 mL syringe for rough lapping.
• Grinding-paste syringe (fine) — red 50 mL syringe for finish lapping.

4. Where the Bosch CP1 Pump Is Used

The Bosch CP1 high pressure pump family has been fitted to a wide range of heavy-duty on-highway and off-highway diesel platforms, including Detroit Diesel Series 60, DD15, DD13, DD11; Cummins M11, ISM 11.0L, ISX 15.0L, ISB 5.9L, ISL 9.0L, ISC 8.3L, ISF 2.8 / 3.8L plus QSB / QSC / QSL; Volvo D11 / D12 / D13 plus Mack MP7 / MP8 / MP10; Renault Premium / Magnum / Kerax / Midlum; Navistar DT466 / DT530 / DT570 plus Maxxforce 9 / 10 / 13; Iveco Cursor 8 / 10 / 13 plus Stralis / Trakker / EuroCargo; and Mack / Freightliner / Kenworth / Peterbilt through the shared platforms above.

For detailed application background, common failure modes, and complete step-by-step workshop workflow, see the companion BLOG post: G4-107 BLOG: full CP1 pump plunger lapping tool overview.

5. How the Workshop Uses the G4-107

Typical CP1 pump plunger reconditioning workflow using the G4-107:

1. Remove the CP1 pump from the engine using the engine-specific puller (not in this kit).
2. Strip the pump down to the plunger-and-barrel assembly and the control valve.
3. Inspect the plunger surface — scoring, ovality, taper, Ra finish.
4. Mount the barrel in the G4-107 main body, locate the plunger on the conical-tipped rod.
5. Apply coarse paste (blue syringe) and rotate by hand through the star knob, applying light axial pressure through the locating rod.
6. Wipe, re-inspect, then run finish lapping with the fine paste (red syringe) to bring the surface back to OEM finish.
7. Lap the control valve face in the G4-107 CP1 Control Valve Grinding block (Gm1070).
8. Re-clean, re-assemble with new seals, return the pump to the engine.

For pump removal from the engine, pair the G4-107 with the BEACON G4-100; for injector-side service, see the G4-106, G5-52 C175, and G5-54 Cummins QSK kits.

6. Build Quality and Packaging

All structural components in the G4-107 are machined from hardened alloy steel and anodized aluminum. The base plate, locating rod, and control valve grinding block are precision-ground for repeatable plunger concentricity. Net weight approximately 5 kg; case size 40 × 30 × 20 cm. Complete kit in foam-lined blow-molded case.

7. Technical Specifications

Product Advantages

• Engineered specifically for Bosch CP1 series — dedicated CP1 control valve grinding block (Gm1070) and precision ground plunger locating rod match the CP1 envelope exactly, eliminating improvised shop fixtures.
• Complete bench-side solution — the kit ships with two grinding-paste syringes (coarse blue + fine red), all fixtures and the spring contact set, so the workshop does not have to source consumables locally.
• Restores OEM 1–3 µm plunger-to-barrel clearance — the dual-paste lapping process (coarse + fine) brings the plunger and control valve back to OEM surface finish and roundness, without disassembly beyond the pump itself.
• Hardened alloy steel + anodized aluminum construction — the structural components are precision-machined from hardened alloy steel and anodized aluminum for long service life in the workshop environment.
• Compatible with mechanical Perkins 1106 / T6.660 — the same fixture envelope covers the cross-referenced Perkins 1106C-E60TA, 1106D-E66TA and T6.660 platform through mechanical cross-reference.
• Foam-lined blow-molded case — the complete kit ships in a 40 × 30 × 20 cm case with a custom foam insert, ready for shop-floor use.
