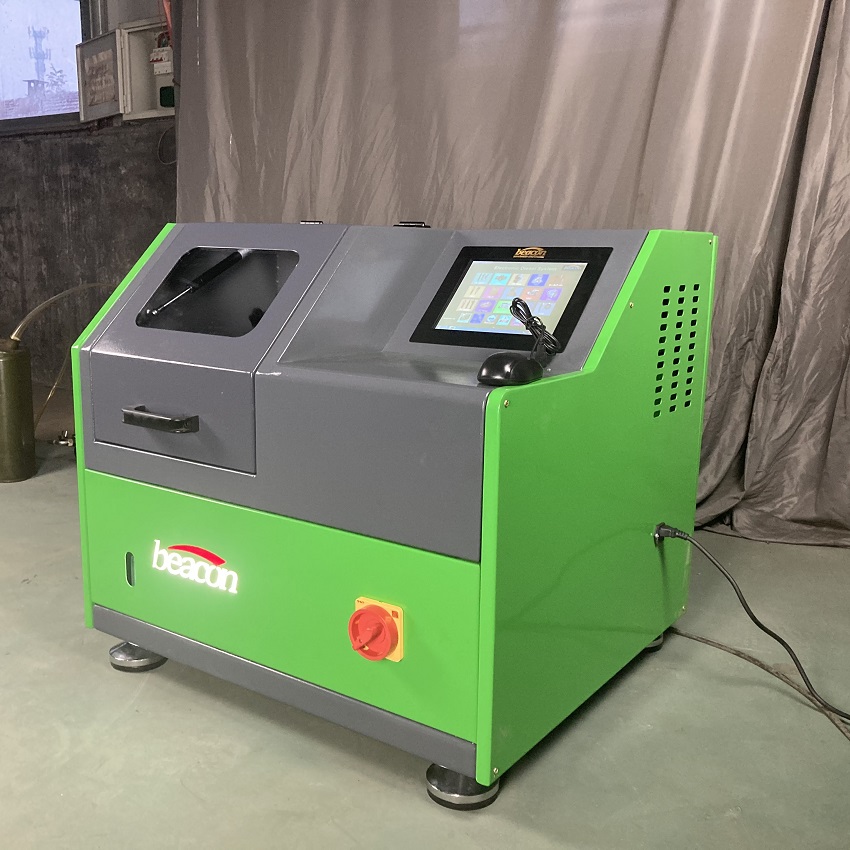

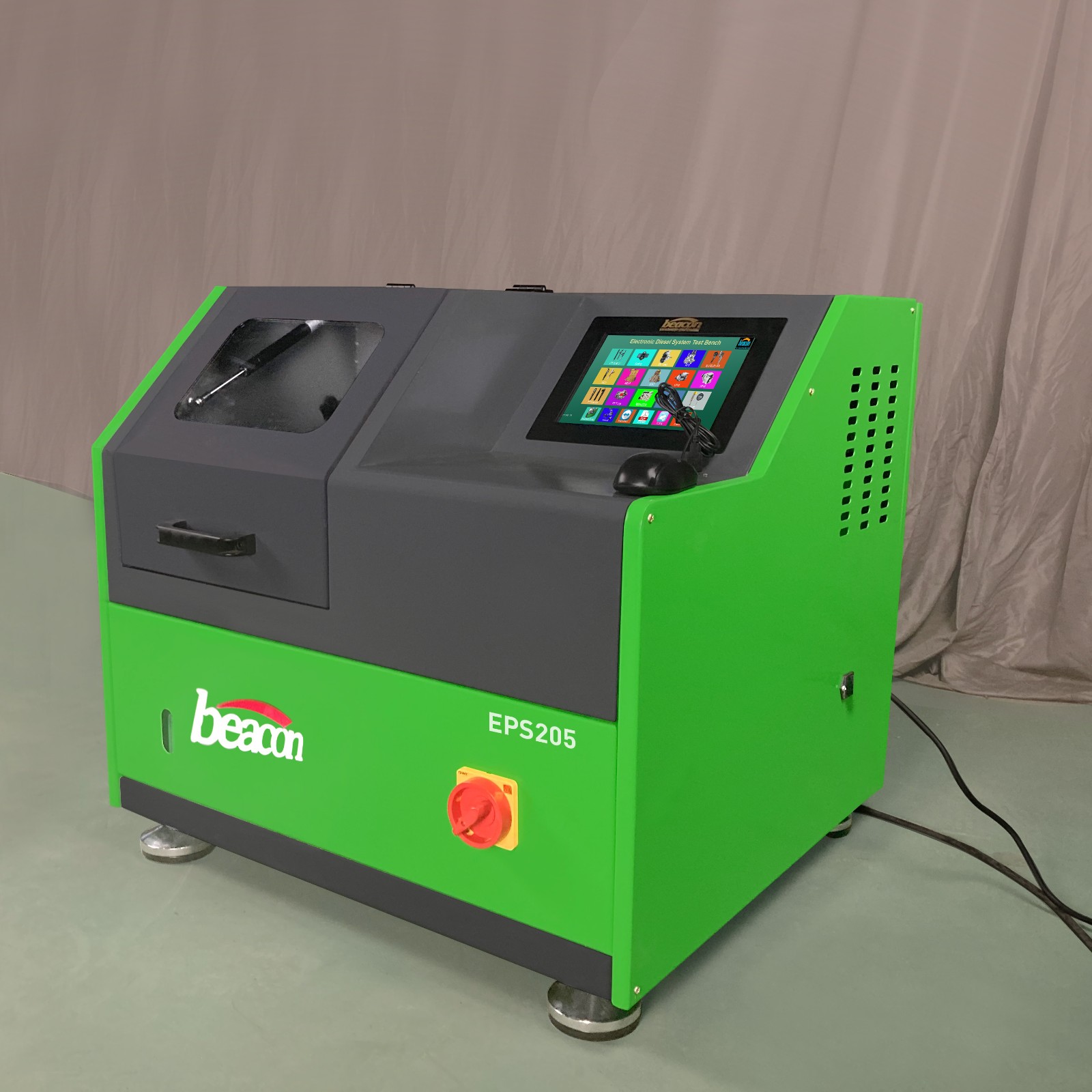

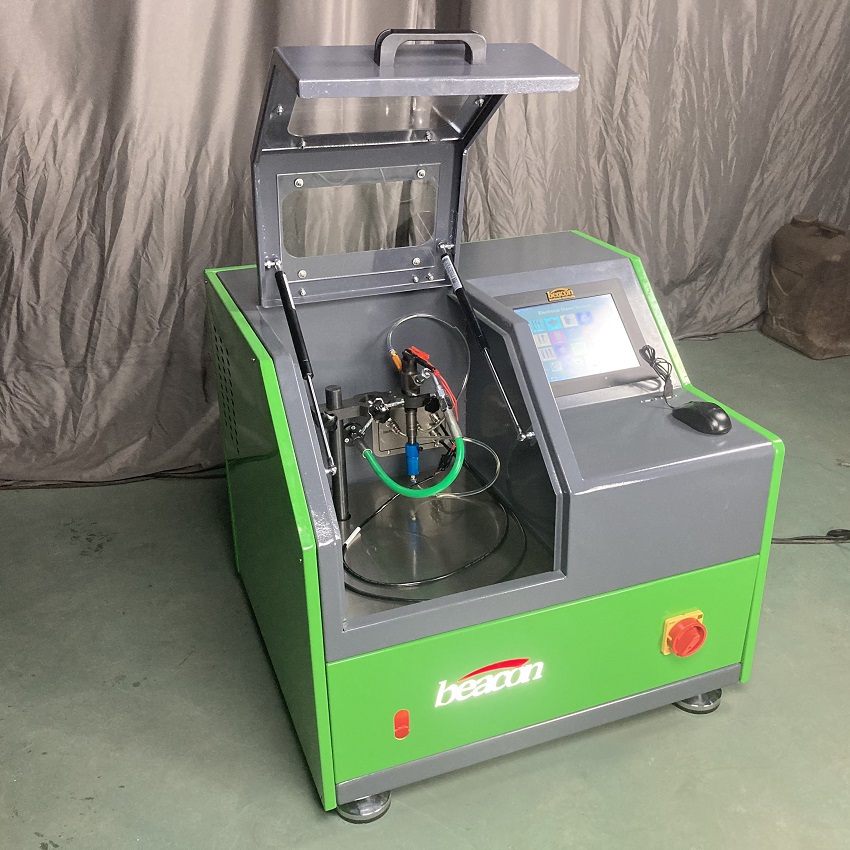

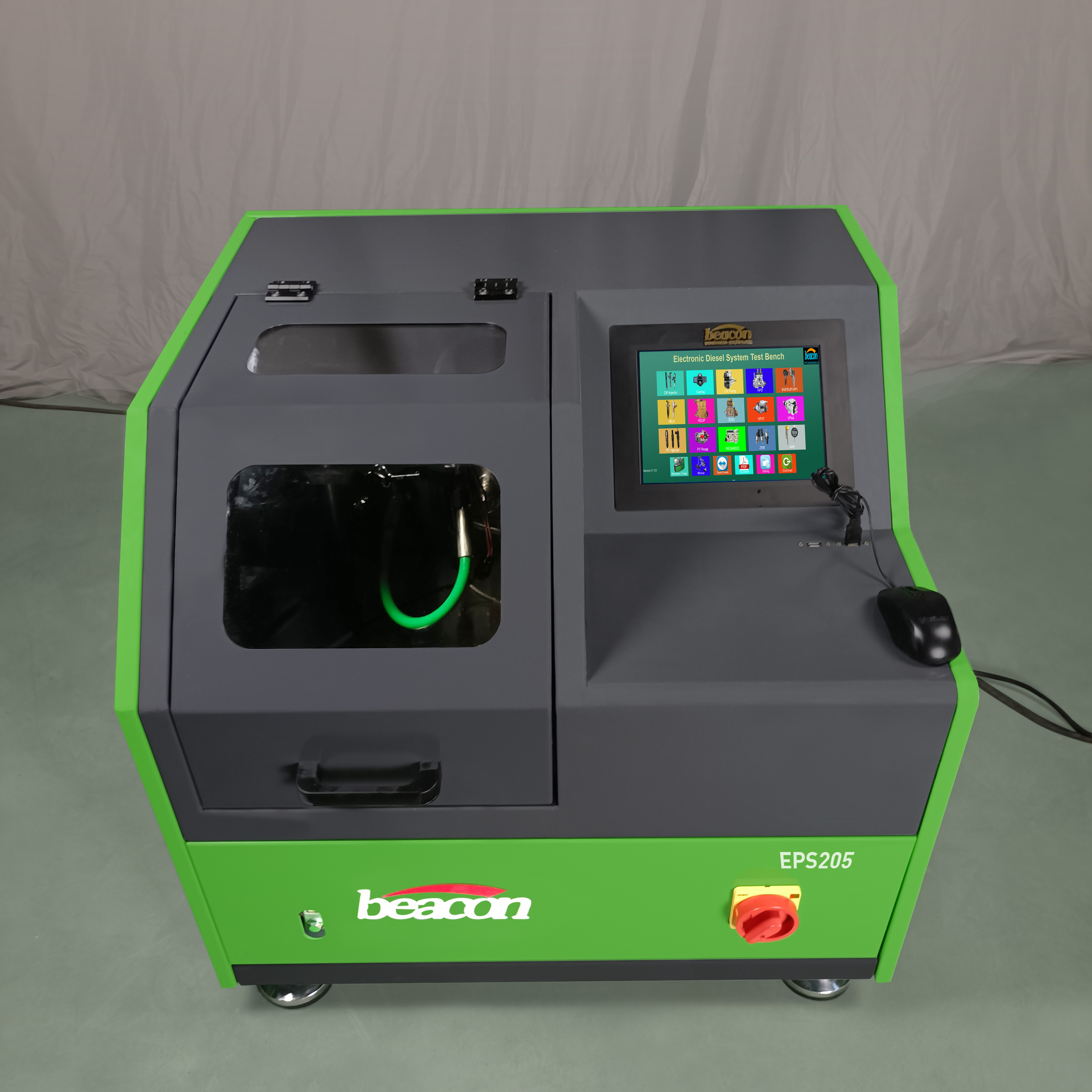

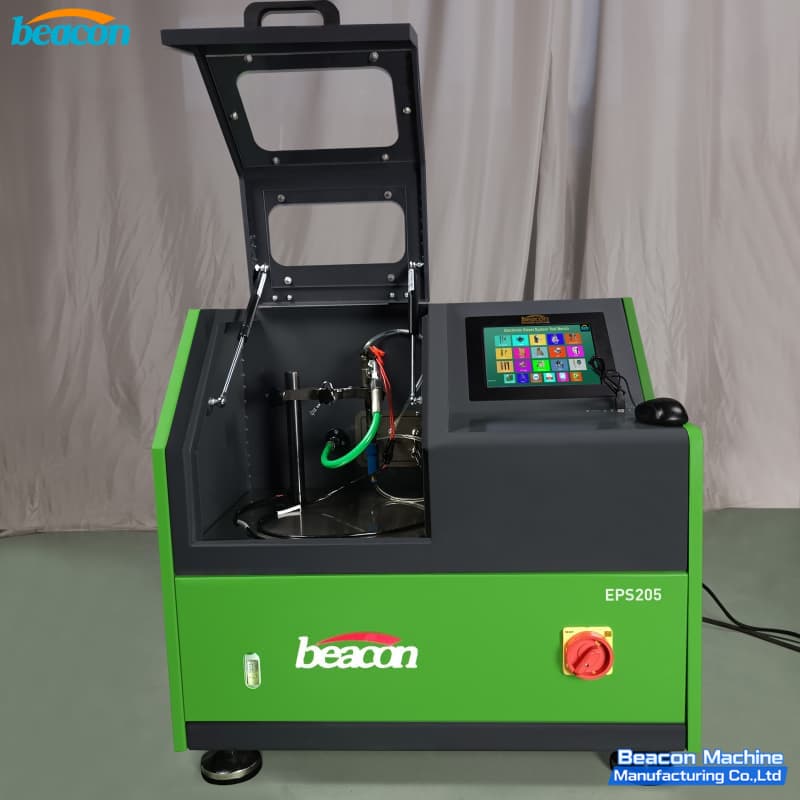

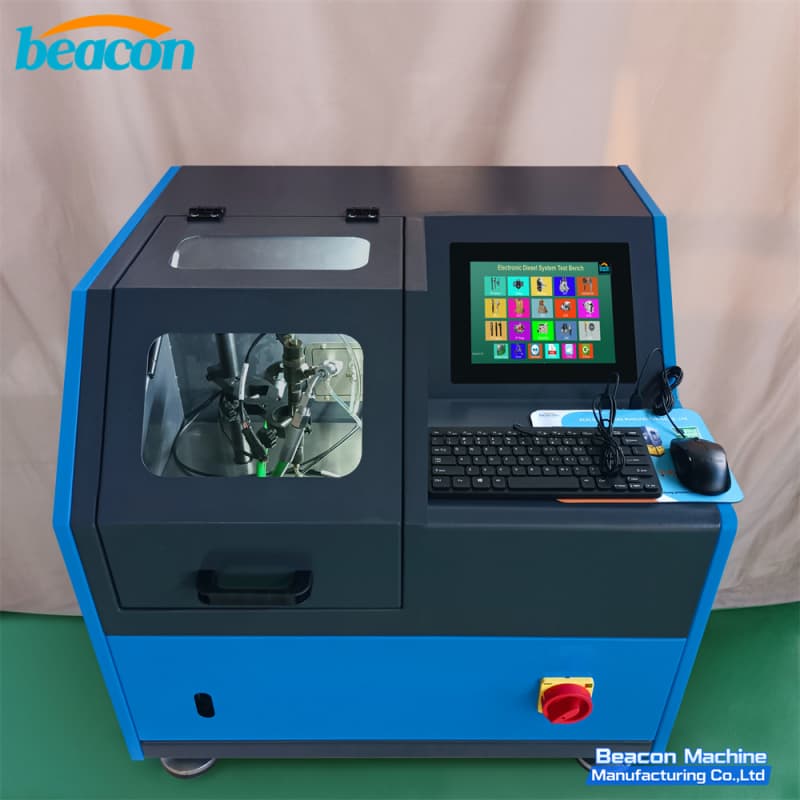

EPS205 Common Rail Diesel Injector Test Bench

Professional EPS205 Common Rail Injector Test Bench for high-precision testing of Bosch, Denso, Delphi, and Siemens injectors. Featuring a Windows industrial PC system, it measures oil quantity via precise sensors and provides 0-2000bar rail pressure. Ideal for comprehensive performance analysis, pre-injection testing, and injector coding.

Get in touch

Details

WHAT IS OUR ADVANTAGE ?

THIS PRODUCT IS FOR :

COMMON RAIL ELECTRONIC INJECTOR /PIEZO INJECTOR
TESTING/SIMULATION/DIAGNOSTIC

WITH 2000 BAR PRESSURE

ORIGINAL INJECTOR DATABASE

CONTACT WITH US NOW ,CAN GET SPECIAL DISCOUNT +FREE GIFT

HOW DO WE DELIVERY TO YOU?

WE CAN DO DDP DOOR TO DOOR DELIVERY

INCLUDE FULL COST :

CUSTOMS CLEARANCE ,TAX ,AND DOOR TO DOOR DELIVERY COST TO YOUR ADDRESS

(Then we will be able to calculate the total cost)

PLEASE SEND INQUIRY WITH YOUR DETAIL ADDRESS:

CITY NAME :

POSTAL CODE:

DETAIL STREET ADDRESS:

----
The EPS205 Common Rail Injector Test Bench is a cutting-edge, independently researched device designed for the comprehensive performance testing of high-pressure common rail injectors. Controlled by an integrated industrial computer running a Windows operating system, the EPS205 provides a user-friendly interface for real-time monitoring.

Equipped with an original BOSCH common rail pump, the bench can generate rail pressure up to 2000bar. It is engineered to test a wide variety of brands, including BOSCH, DENSO, DELPHI, and SIEMENS, covering over 10000 types of injector data. Whether for professional workshops or manufacturing, the EPS205 ensures high-precision measurement and steady performance.

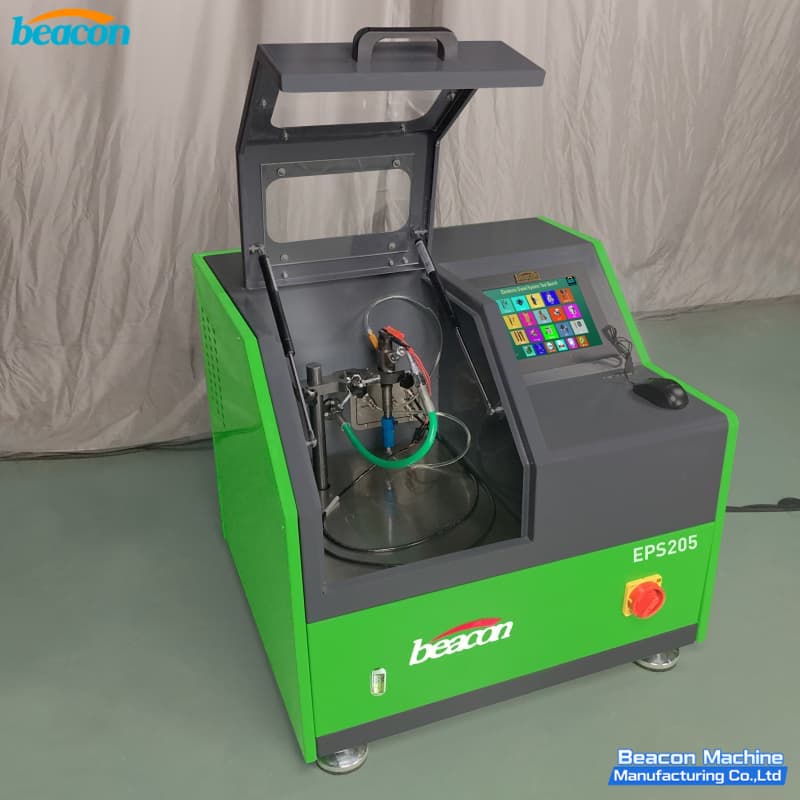

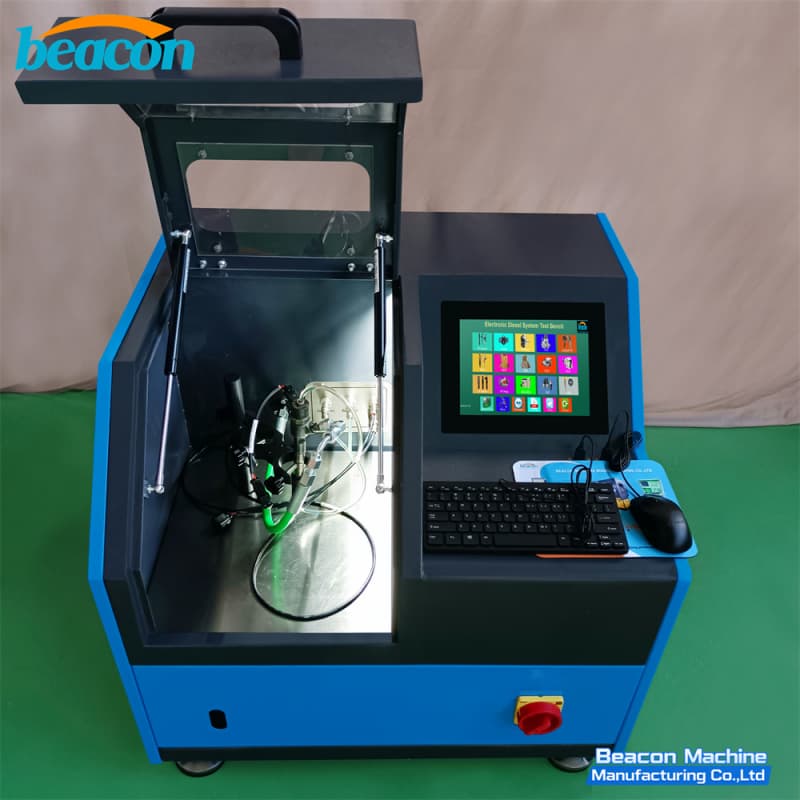

EPS205 common rail injector test bench

EPS205 Common Rail Diesel Injector Test Bench Advantage

Comprehensive Compatibility: Supports testing and coding for major brands like Bosch, Delphi, Denso, and Siemens.
Precision Measurement: Utilizes high-accuracy sensors for oil quantity measurement with a flow accuracy of 0.1ml.
Advanced Control System: Powered by an industrial computer with a 10.4-inch tactile LCD screen and Windows OS for intuitive operation.
High-Pressure Reliability: Features an original Bosch pump capable of reaching 2000bar, with built-in high-pressure and short-circuit protection.
Extensive Database: Access to a searchable database containing data for over 7,300 types of injectors.
Full Functional Testing: Capable of testing seal performance, pre-injection, cranking, backflow, and maximum oil quantity.

parameter

Technical Parameter	Specification
Power Voltage	220V 1phase [cite: 53, 59]
Motor Speed	0-3000RPM [cite: 53, 59]
Oil Pressure	0-2000bar [cite: 53, 60]
Flow Measure Range	0-600ml/1000times [cite: 54, 61]
Flow Measurement Accuracy	0.1ml [cite: 55, 62]
Temperature Control Range	40 ± 2°C [cite: 55, 63]
Common Rail Pump Type	CP1H [cite: 55, 64]
Output Power	1.5KW [cite: 56, 65]
Overall Dimension	0.85 * 0.8 * 0.9M [cite: 57, 66]
Net Weight	150kg [cite: 58, 67]
