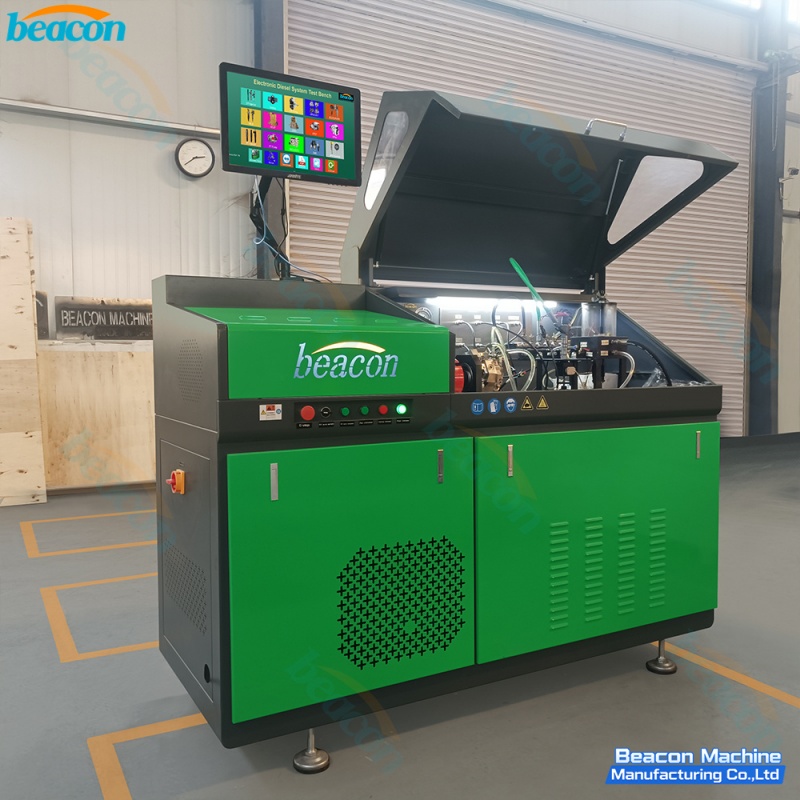

CR707 EUI EUP HEUI Common Rail Test Bench For Bosch Denso Delphi Siemens Injector Pump Test

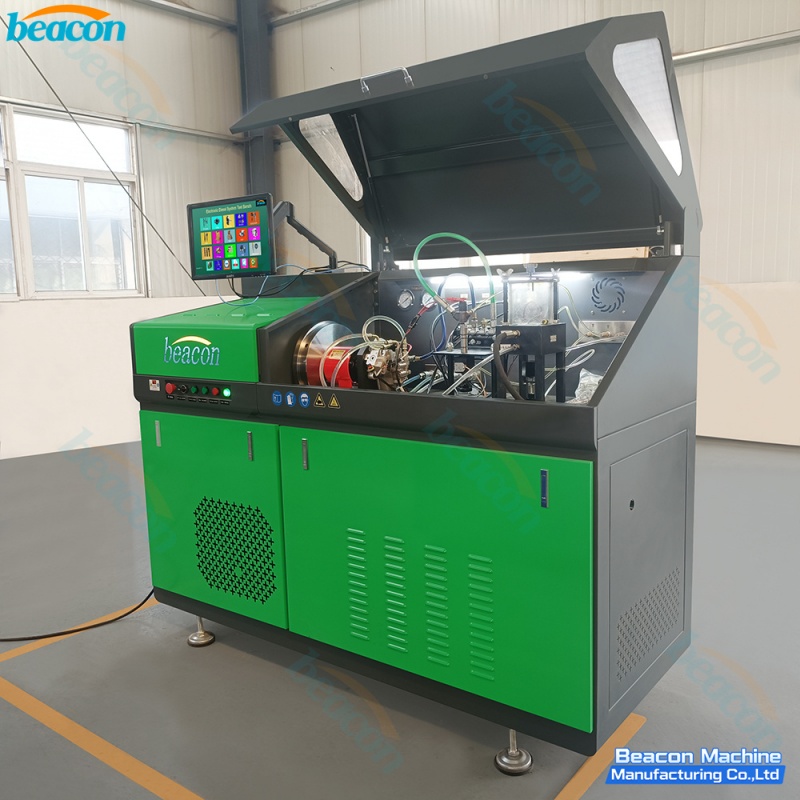

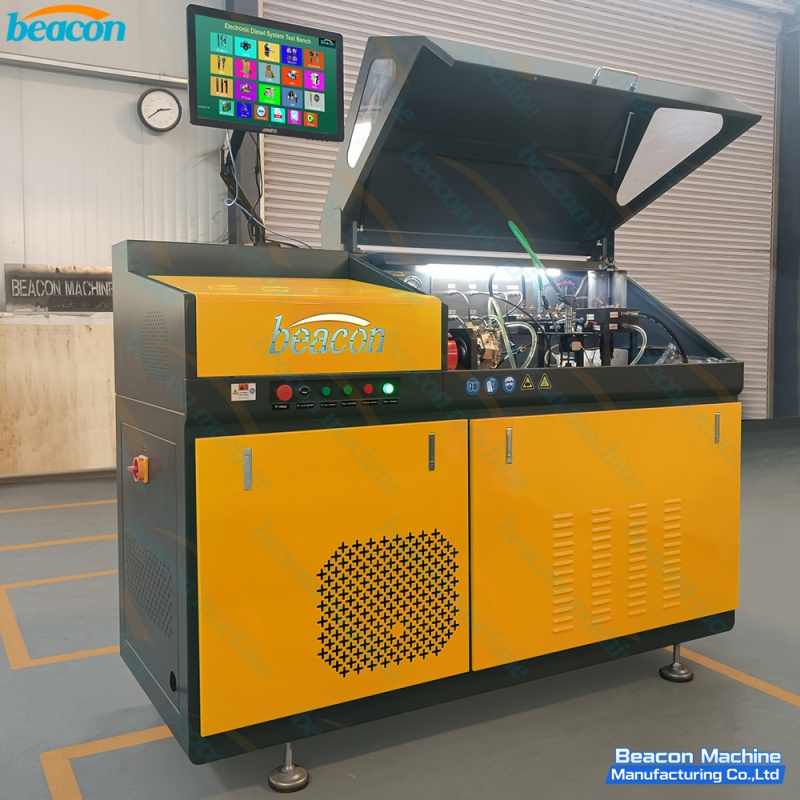

The CR707 is a top-tier, multi-functional diagnostic platform designed for the comprehensive testing of EUI (Electronic Unit Injectors), EUP (Electronic Unit Pumps), HEUI (Hydraulic Electronic Unit Injectors), and high-pressure common rail systems. It integrates an advanced industrial control system with a human-centric hardware design. The machine supports testing for a vast range of brands including Bosch, Denso, Delphi, Siemens, and Caterpillar (C7/C9/C-9/3126), providing original factory-level accuracy for modern diesel engine maintenance.

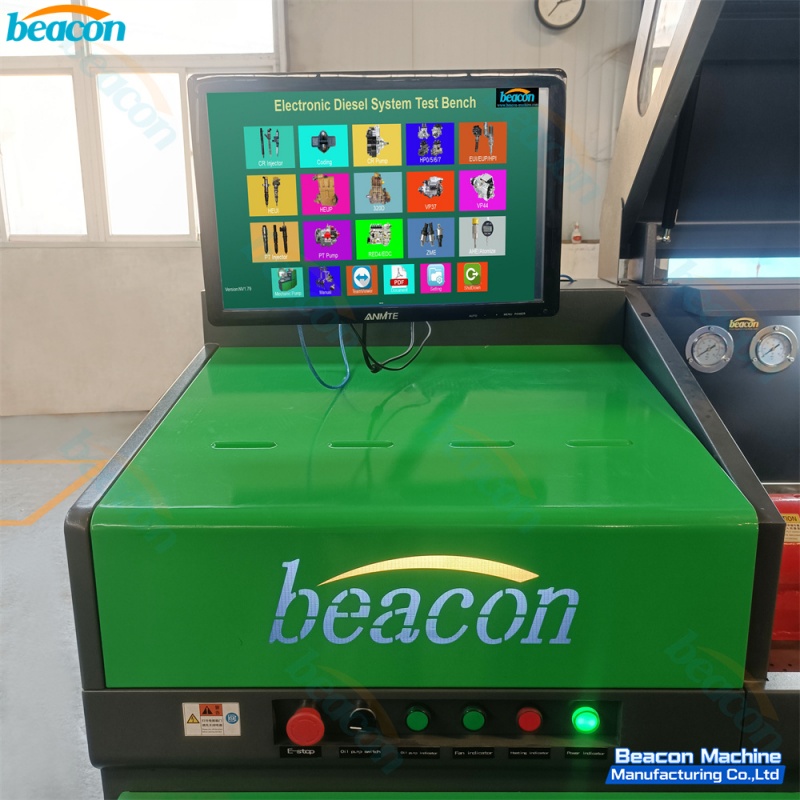

• Innovative Multi-Axis Touch Screen: Equipped with a professional flip-bracket, the high-definition touch screen can be moved up, down, left, right, forward, and backward. This allows operators to adjust the screen to the most comfortable viewing angle for improved efficiency.

• All-in-One Testing Capability: A single machine to test EUI/EUP (with Cam Box), HEUI, and Common Rail injectors/pumps, significantly reducing equipment costs for workshops.

• High-Pressure Performance: Standard configuration reaches 2400 bar, with an optional upgrade to a Bosch CP4 pump for pressures up to 2800 bar (XPI testing).

• Precise Measurement: Utilizes high-precision electronic flow sensors for real-time monitoring of injection and return oil volumes.

• Massive Database & Remote Support: Built-in data for thousands of models with one-key remote online upgrades and technical assistance via TeamViewer.

• Industrial Grade Cooling: Features forced air conditioning or water cooling (optional) to maintain stable oil temperatures during continuous high-load testing.
