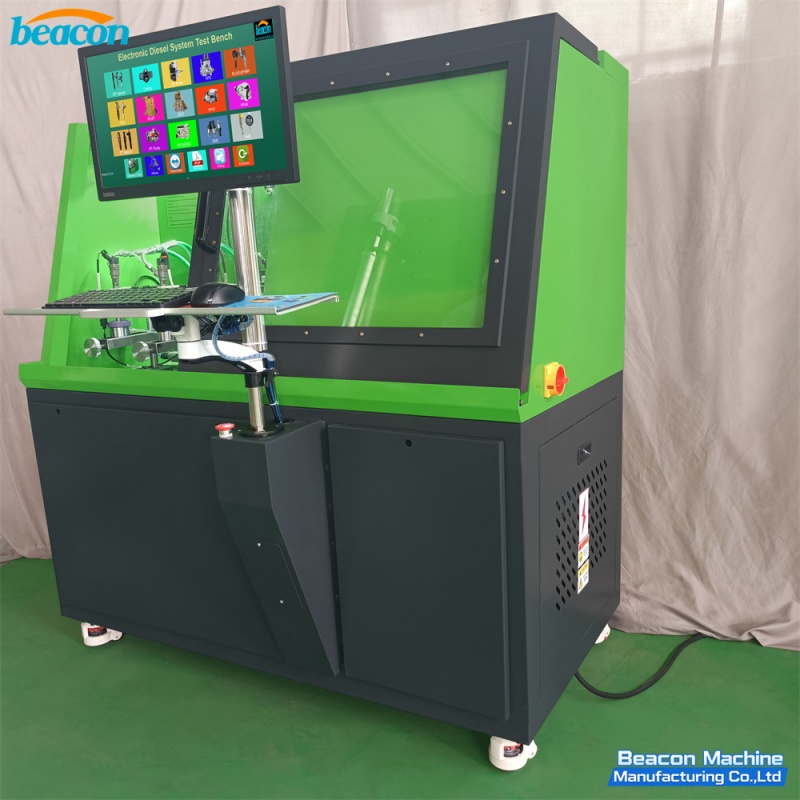

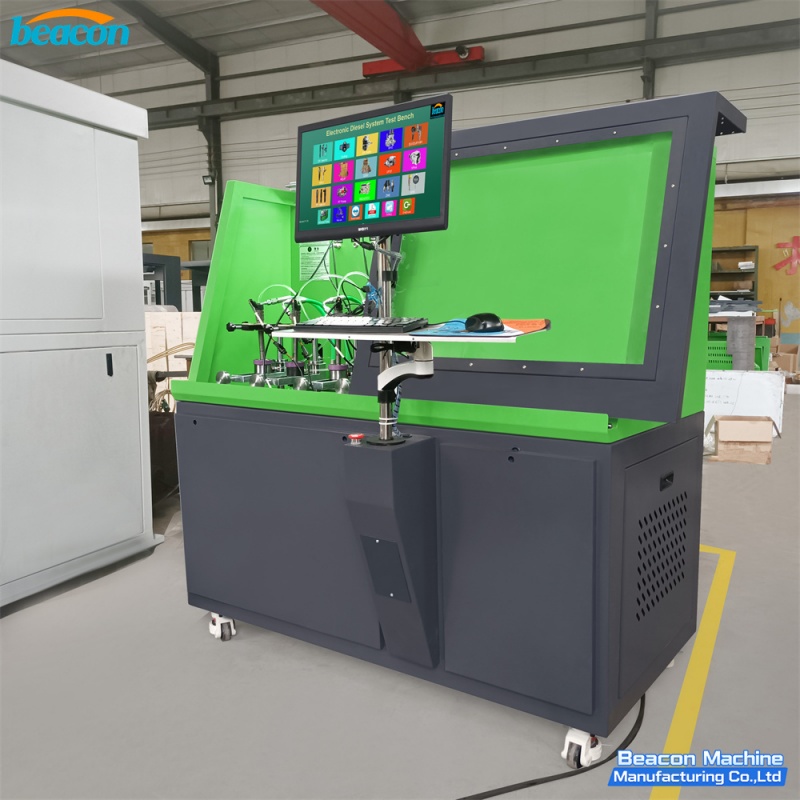

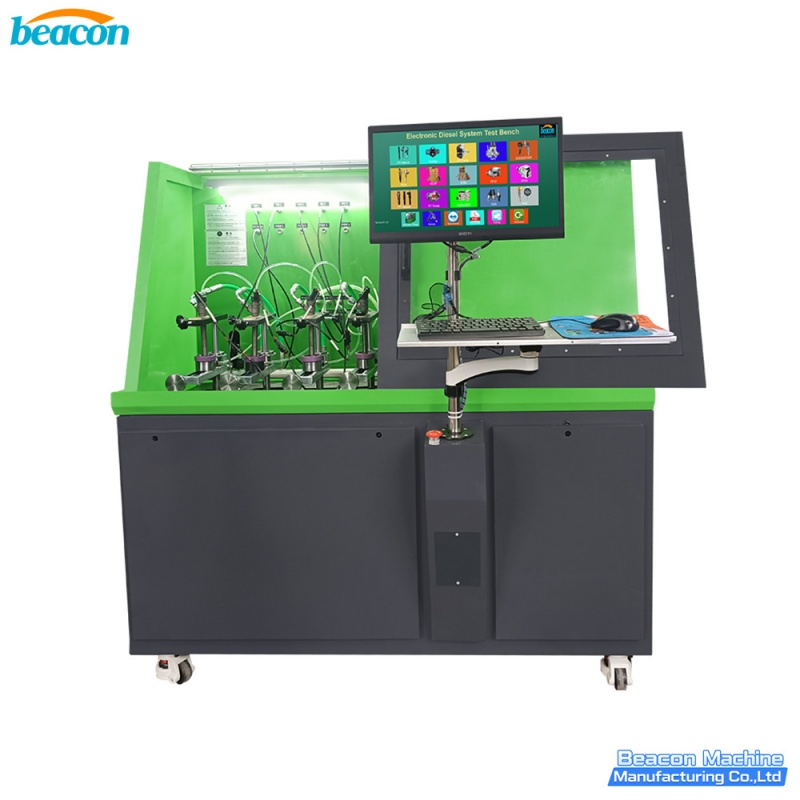

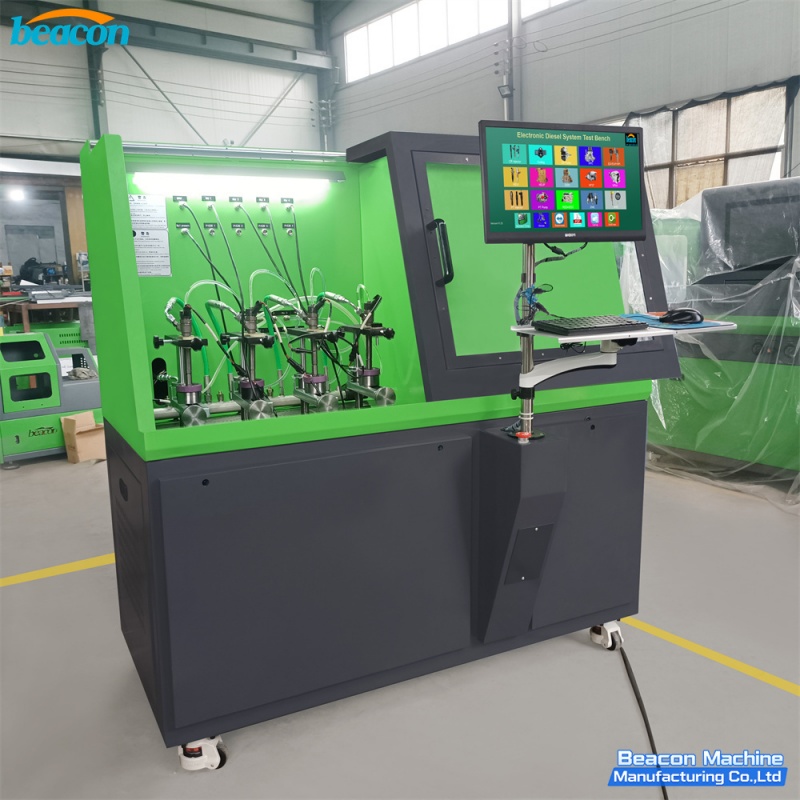

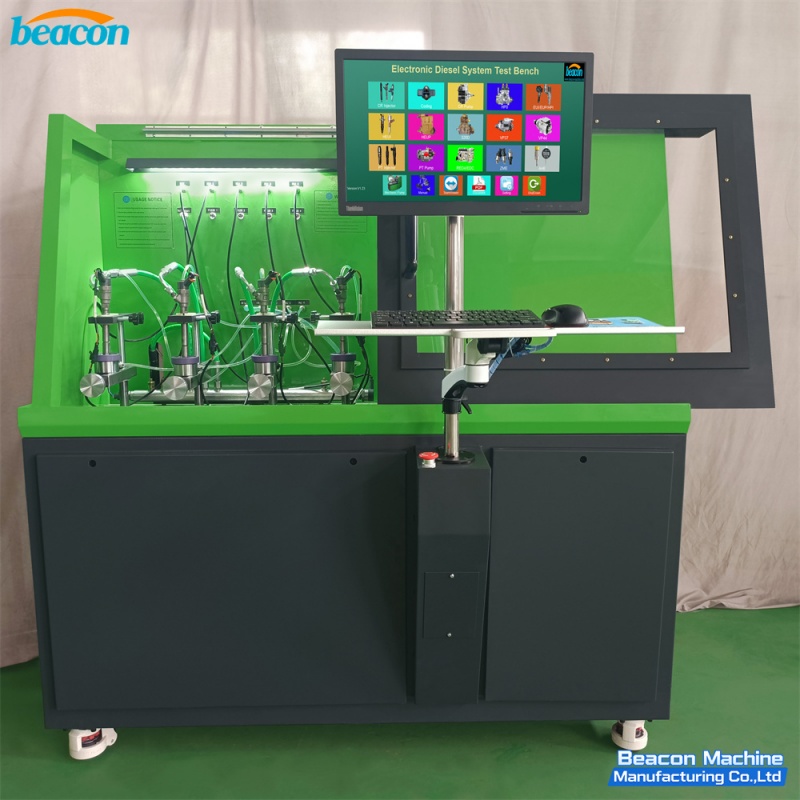

CR304 Common Rail Injector Test Bench 4-Injector Simultaneous Testing & Coding
Details
The CR304 Common Rail Injector Test Bench is an advanced electronic diesel system test bench designed to simulate the working conditions of a diesel engine ECU. It provides precise control signals for Bosch, Denso, Delphi, and Piezoelectric ceramic systems to drive high-pressure injectors for comprehensive performance evaluation and maintenance.
CR304 Common Rail Injector Test Bench 4-Injector Simultaneous Testing & Coding Advantage
High Efficiency: Equipped with four flow sensors, allowing for the simultaneous testing of 4 injectors to save time.
Wide Compatibility: Supports solenoid valve and piezoelectric injectors from major manufacturers including Bosch, Denso, Delphi, Siemens, Caterpillar, and Cummins.
Smart Automation: Features one-button integrated automatic operation for speed control, rail pressure, flow measurement, and report analysis.
Injector Coding: Supports generation of injector compensation codes and coding functions for Bosch, Denso, Delphi, and Siemens.
Precision & Real-time Updates: High test accuracy consistent with original factory data, with a fully open database and automatic network upgrades.
Comprehensive Testing: Capable of testing injector resistance, inductance, and injection response time (optional).
parameter
| Parameter | Specification |
|---|---|
| Model | CR304 |
| Main Engine Power | 5.5KW / 7.5KW |
| Power Supply | 220V / 380V (3 Phase) |
| Max Rail Pressure | 240MPa (2400bar) |
| Common Rail Pump | Bosch CP3 Pump |
| Temperature Range | 38-42°C |
| Oil Tank Capacity | 19L |
| Dimensions | 160 * 100 * 180 CM |
| Weight | 350 KG |
