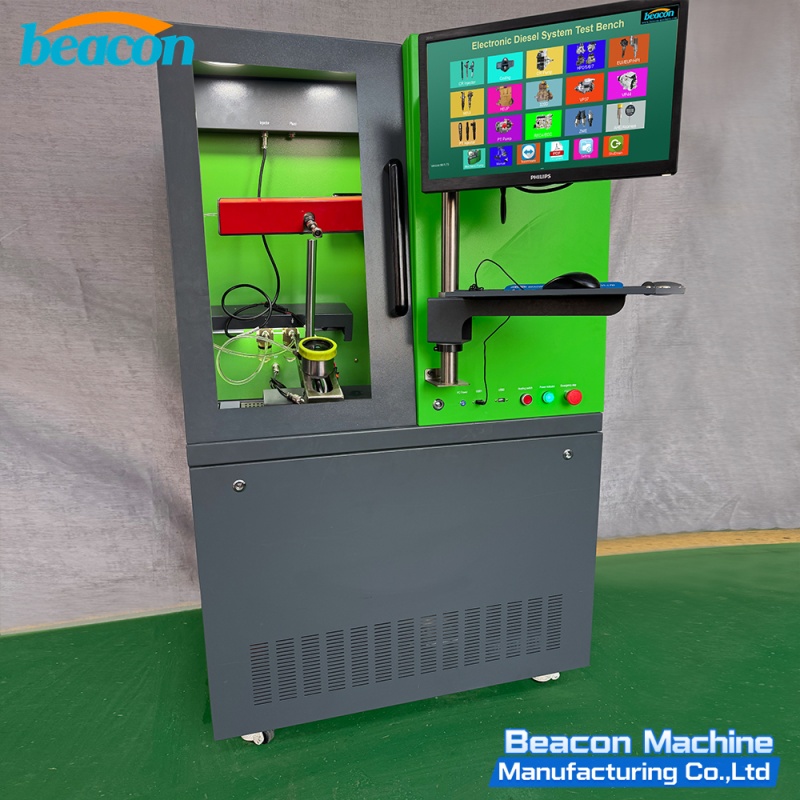

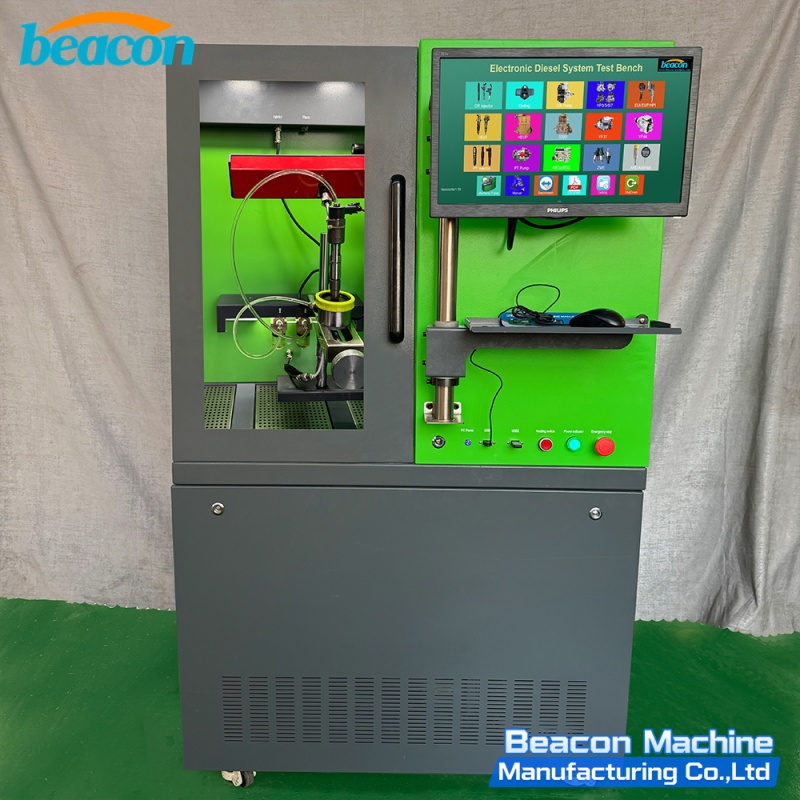

BC200-PRO Common Rail Injector Test Bench Bosch Cummins Injector Testing Machine

The BC200-PRO is a high-performance common rail injector test bench specifically optimized for 220V single-phase power environments. It accurately simulates diesel engine ECU signals to drive high-pressure injectors from Bosch, Denso, Delphi, Siemens, and piezoelectric ceramics. With its compact design and industrial Windows control system, it provides a professional and efficient diagnostic solution for maintenance personnel to assess and repair high-pressure common rail systems.

• Single-Phase Power Optimization: Standard 3.8KW 220V single-phase configuration, making it compatible with more workshop environments without the need for 3-phase power.

• Wide System Compatibility: Supports solenoid valve and piezo injectors from Bosch, Denso, Delphi, Siemens, Caterpillar, and more.

• Intelligent Injector Coding: Supports generation of compensation codes (IMA/ISA/QR) for Bosch, Denso, Delphi, and Siemens.

• Precision Measurement: Equipped with high-precision electronic flow sensors for real-time monitoring of injection and return fuel volumes.

• Safety & High Pressure: Capable of reaching up to 2400 bar rail pressure with built-in safety door and emergency stop protection.

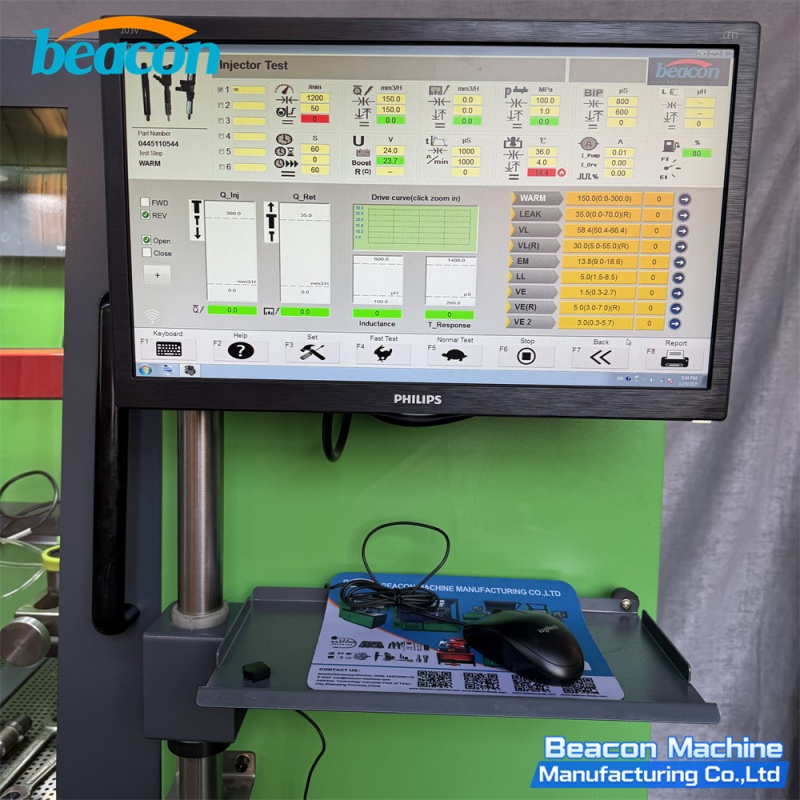

• User-Friendly Software: Windows OS with a multi-language interface, massive built-in database, and one-key remote upgrade capability.
