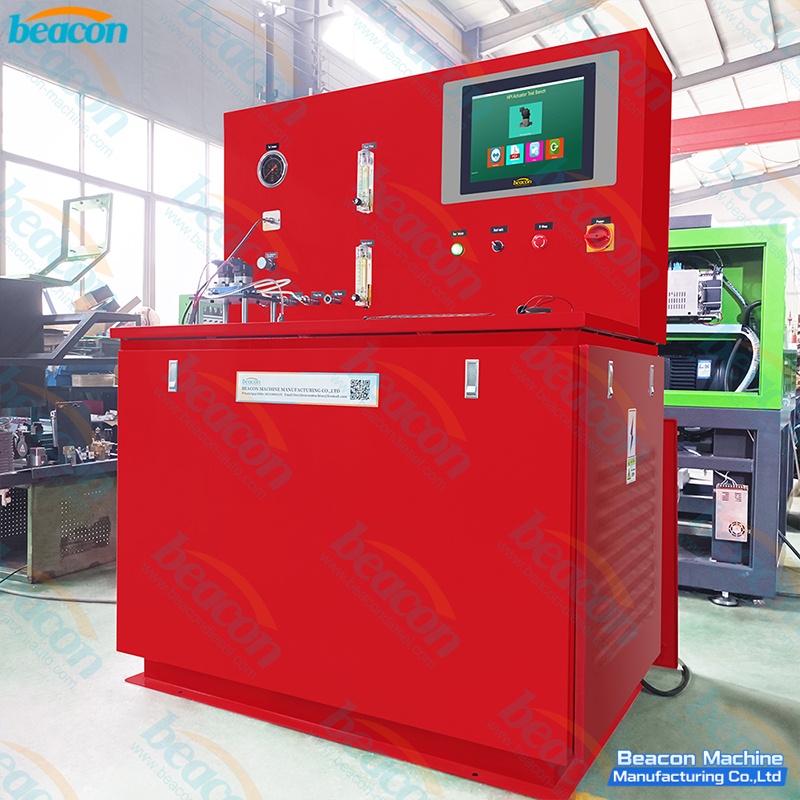

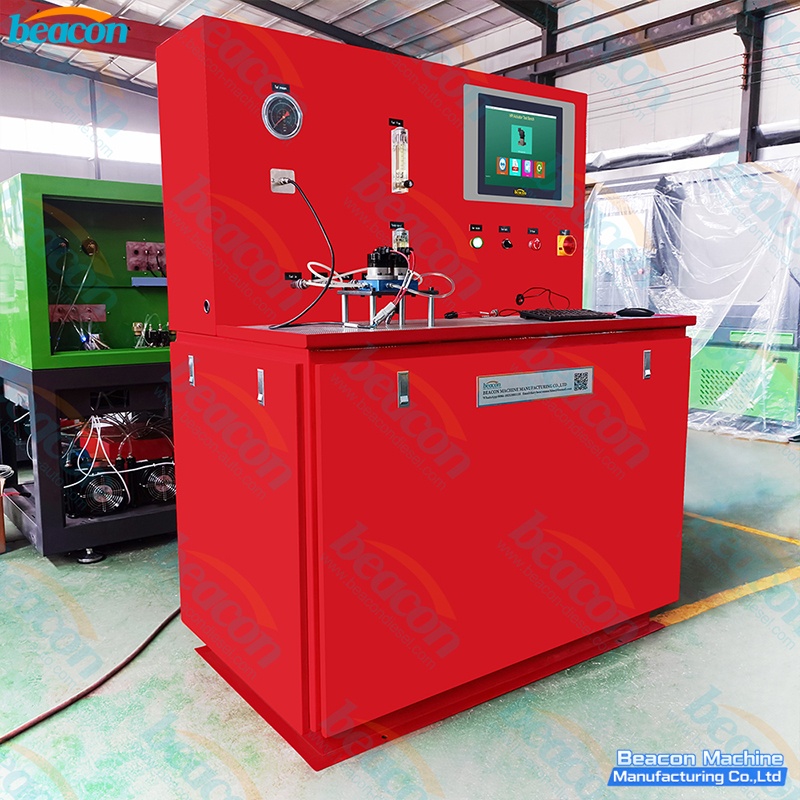

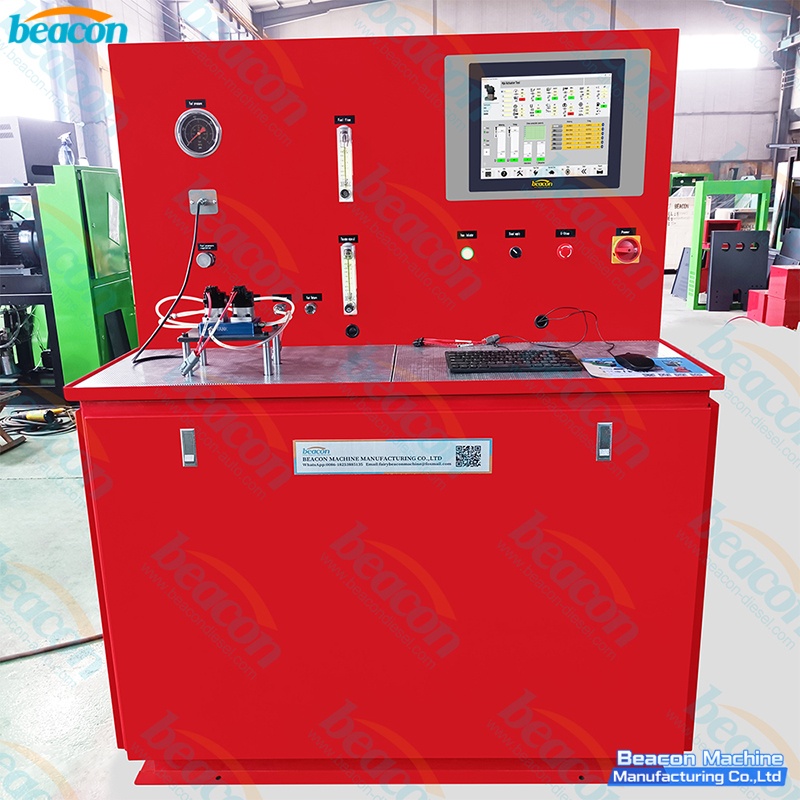

BC-X15Q60 Actuator Test Bench for Cummins X15 Q60 HPI Fuel Systems
Details
The BC-X15Q60 Actuator Test Bench is a specialized diagnostic equipment designed specifically for testing and calibrating Cummins X15 and Q60 series HPI (High Pressure Injection) actuators. It accurately simulates the engine's control signals to evaluate actuator performance, including fuel pressure, response time, and stability. Equipped with an industrial control system and high-precision sensors, it provides a reliable solution for diesel fuel system maintenance and repair shops.
BC-X15Q60 Actuator Test Bench for Cummins X15 Q60 HPI Fuel Systems Advantage
Specialized Design: Dedicated to Cummins X15 and Q60 HPI actuators, ensuring 100% compatibility and accurate test results.
High Precision Control: Advanced electronic fuel pressure control ranging from 0 to 24 bar with an accuracy of 1 bar.

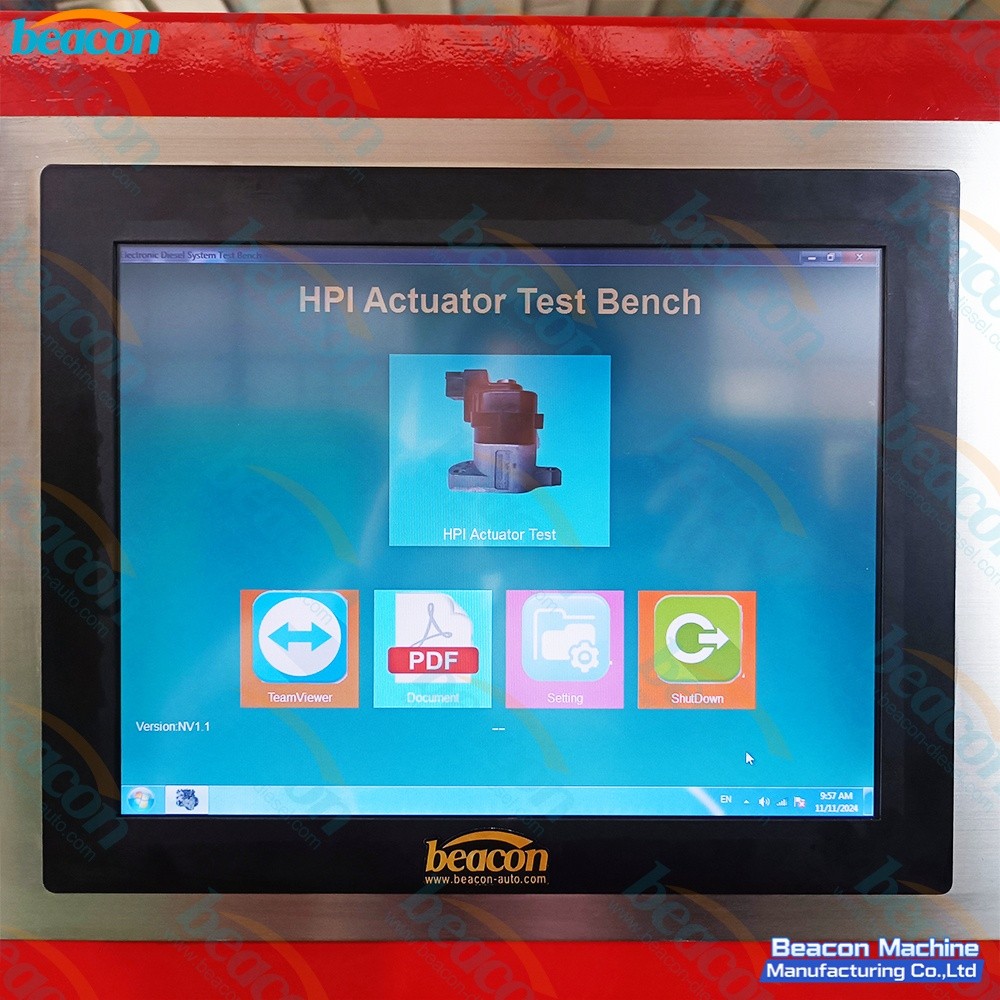

Automated Testing: Features an intuitive industrial interface with one-key operation for testing BIP (Injection Response Time) and flow.
Versatile Power Options: Supports both 380V 3-phase and 220V single-phase power supplies to suit different workshop requirements.
Durable Construction: Industrial-grade hardware and software design ensure stable performance under continuous operation.

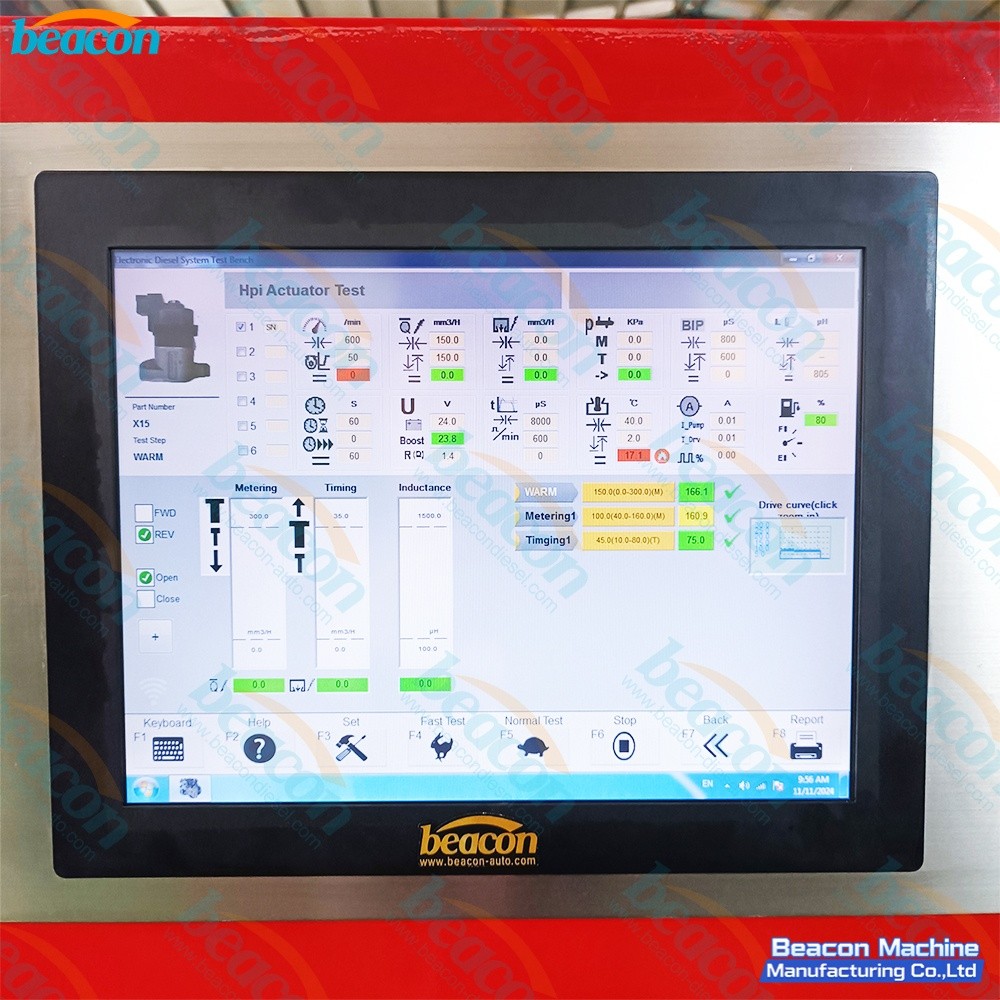

Real-time Monitoring: Real-time display of pressure, frequency, and test counts on a high-definition LCD screen.
parameter
| Parameter | Specification (BC-X15Q60) |
|---|---|
| Model | BC-X15Q60 |
| Application | Cummins X15, Q60 HPI Actuators |
| Fuel Pressure Control | 0 - 24 bar |
| Control Accuracy | 1 bar |
| Electronic Power | 380V / 220V (3-Phase / Single Phase) |
| Test Count Control | 1 - 1000 times (Adjustable) |
| Product Size | 140 * 85 * 180 CM |
| Weight | 300 KG |
| Operating System | Industrial Computer (Windows Based) |
