Inline Mechanical Injection Pump Repair Guide (Part 1): Preparation & Removal

PART1.

The inline mechanical injection pump is a vital component in traditional diesel engines, responsible for delivering precise fuel quantities at the correct timing to ensure optimal combustion. While its design is robust, regular wear and tear can affect performance, requiring systematic repair. Below is a concise, step-by-step guide to inline mechanical injection pump repair, tailored for professional technicians and maintenance specialists.

Step 1: Preparation & Safety Measures

Before starting repair work, prioritize safety and proper preparation to avoid damage or injury:

Disconnect the engine’s battery to prevent accidental startup.

Work in a well-ventilated, clean workspace free of flammable materials. Wear protective gear (gloves, safety glasses) to shield against fuel and moving parts.

Gather necessary tools: socket sets, torque wrench, feeler gauges, fuel system cleaner, and a repair manual specific to the pump model.

Drain excess fuel from the pump by disconnecting the fuel lines and placing a container to catch runoff. Label all lines to ensure correct reinstallation.

Step 2: Removal of the Injection Pump

Proper removal is critical to avoid damaging the pump or engine components:

Mark the timing alignment between the pump, drive shaft, and engine to maintain correct fuel timing during reinstallation. Use paint or alignment marks for reference.

Disconnect all attached components: fuel inlet/outlet lines, throttle linkage, governor controls, and electrical connectors (if applicable).

Loosen and remove the mounting bolts securing the pump to the engine block. Gently pull the pump away from the drive shaft, taking care not to bend or damage the drive splines.

Step 3: Disassembly & Inspection

Disassemble the pump carefully and inspect components for wear or damage:

Follow the repair manual to disassemble the pump in the correct sequence. Remove the pump cover, governor assembly, plungers, barrels, and delivery valves.

Inspect key components: Check plungers and barrels for scratches, wear, or corrosion; examine delivery valves for seating issues; inspect the governor spring for fatigue or deformation.

Clean all disassembled parts with a dedicated fuel system cleaner. Avoid harsh solvents that may damage rubber seals or plastic components. Dry parts thoroughly with a lint-free cloth.

--

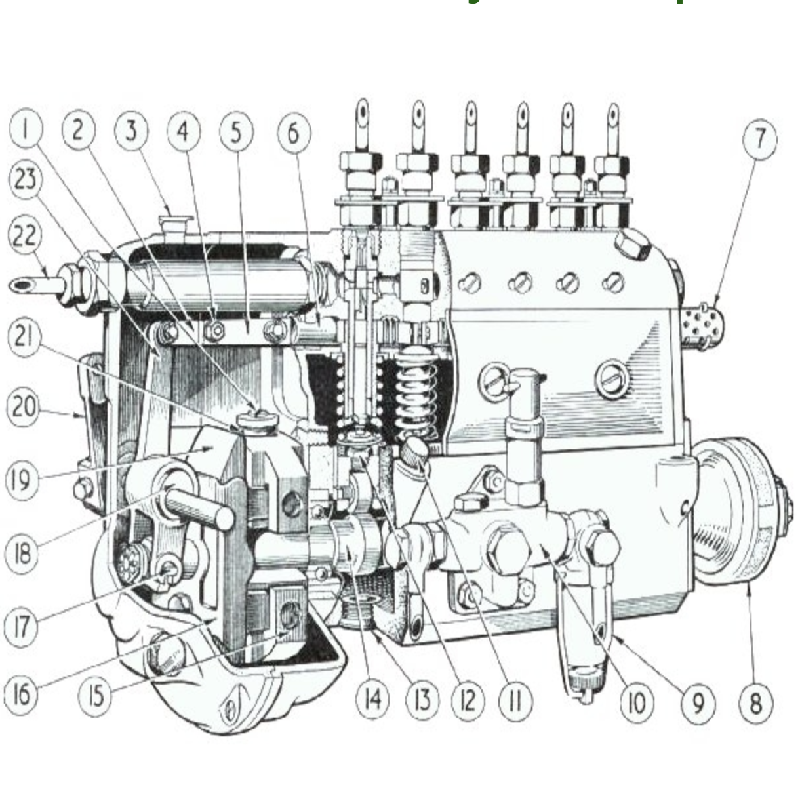

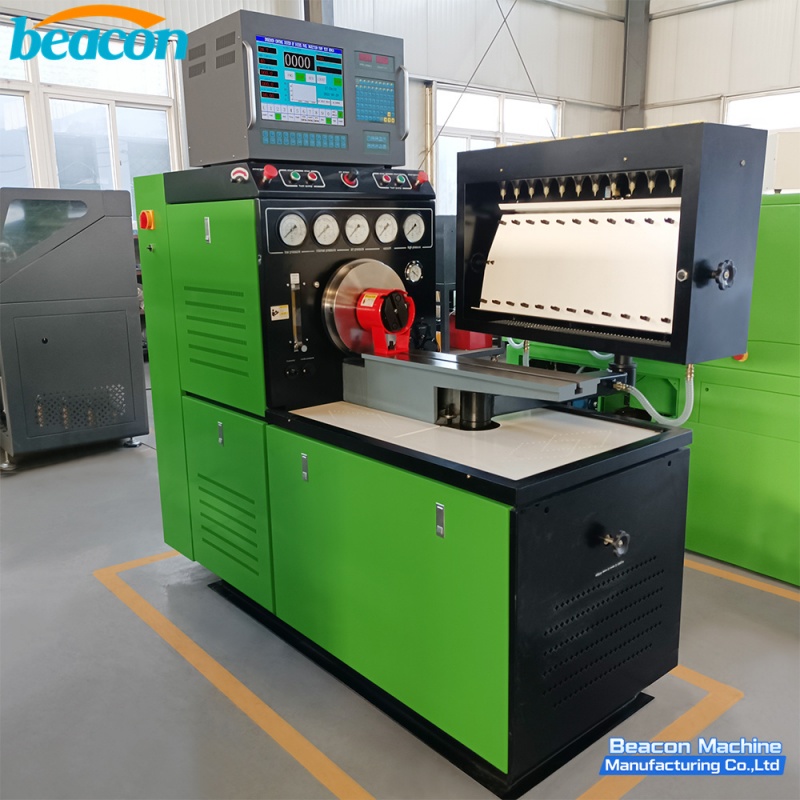

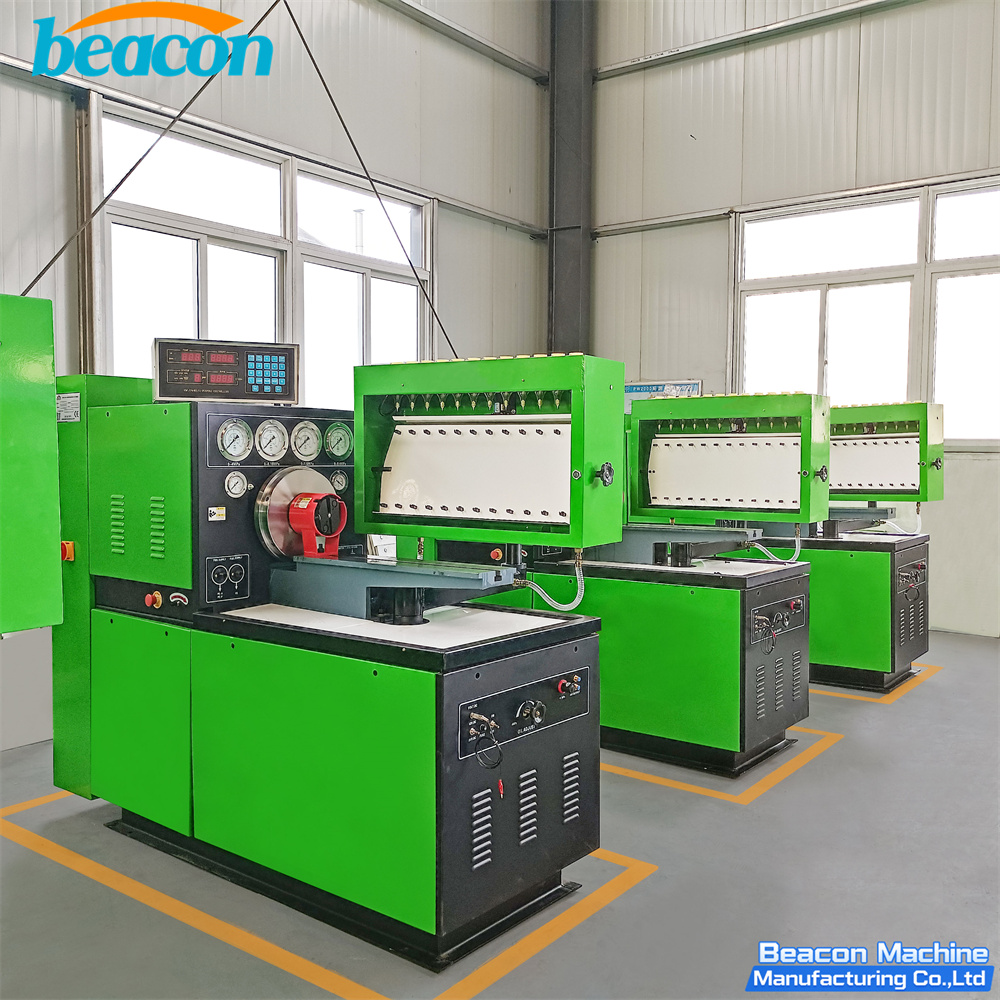

For Mechanical injection pump ,we have best quality test bench for example these models:
