Bosch Series 120 Injector Repair: Critical Precautions for Reliable Performance PART1

The Bosch Series 120 injector is a cornerstone component in modern diesel engines, renowned for its precision, efficiency, and durability. However, like all high-precision fuel system parts, it demands strict adherence to repair protocols to maintain optimal performance and avoid costly secondary damage. Whether you’re a professional technician or a fleet maintenance specialist, mastering these key precautions during Bosch 120 injector repair is essential to ensure long-lasting, reliable operation.

1. Pre-Repair Preparation: Cleanliness & Tool Readiness

Cleanliness is non-negotiable when working with the Bosch 120 injector—even microscopic debris can disrupt fuel atomization, damage internal components, or lead to fuel leaks. Before starting any repair work:

Work in a dust-free, controlled environment. Avoid repair areas with excessive dirt, oil mist, or airborne particles.

Thoroughly clean the injector exterior using a lint-free cloth and a mild solvent (avoid harsh chemicals that may damage seals). Pay special attention to the fuel inlet, nozzle tip, and electrical connector.

Ensure all repair tools are clean, calibrated, and compatible with the Bosch 120 series. Use only manufacturer-recommended tools, including torque wrenches, injector disassembly stands, and nozzle testing equipment. Improper tools can deform precision parts (e.g., the injector body or valve components).

Prepare a clean workspace with organized containers for small parts (e.g., springs, seals, nozzles) to prevent loss or contamination.

2. Disassembly Precautions: Avoid Force & Protect Precision Components

The Bosch 120 injector features intricate internal components—such as the solenoid valve, control piston, and nozzle needle—that are sensitive to excessive force. Follow these guidelines during disassembly:

Never use hammering or prying tools on the injector body or internal parts. Use dedicated disassembly fixtures to separate components gently.

Document the disassembly sequence and part orientation. Take photos or notes to ensure correct reassembly—many components (e.g., springs, washers) are not interchangeable between injectors.

Inspect the injector body for cracks, corrosion, or wear before proceeding. If the body is damaged, replacement is often more reliable than repair, as compromised structural integrity can lead to fuel leaks or injector failure.

Handle the solenoid valve and electrical connector with care. Avoid bending pins or exposing the solenoid to moisture, which can cause electrical malfunctions.

3. Component Inspection: Key Checkpoints for Wear & Damage

A thorough inspection of all disassembled components is critical to identify hidden issues that may cause premature injector failure. Focus on these high-wear parts:

Nozzle Tip: Check for carbon buildup, erosion, or damage to the spray holes. Even minor wear can disrupt fuel atomization, leading to poor engine performance, increased fuel consumption, or incomplete combustion. Use a microscope for detailed inspection if available.

Seals & O-Rings: Replace all seals and O-rings with genuine Bosch replacement parts—never reuse old ones. Inspect the seal grooves for debris or wear, as damaged grooves can prevent proper sealing and cause fuel leaks.

Control Piston & Guide: Check for scratches, wear, or deformation. The control piston relies on tight clearances to regulate fuel pressure; excessive wear can lead to pressure loss and erratic injector operation.

Solenoid Valve: Test the solenoid’s resistance using a multimeter (refer to Bosch’s technical specifications for the correct resistance range). A faulty solenoid (e.g., open circuit or short circuit) will cause the injector to misfire or fail completely.

Springs: Inspect for fatigue, corrosion, or deformation. Weak or damaged springs can affect the injector’s opening and closing pressure, leading to incorrect fuel delivery

For BOSCH 120 110 Type Injector ,we have lot of stuibale model such as : EPS106,EPS200 with most economic price and original database

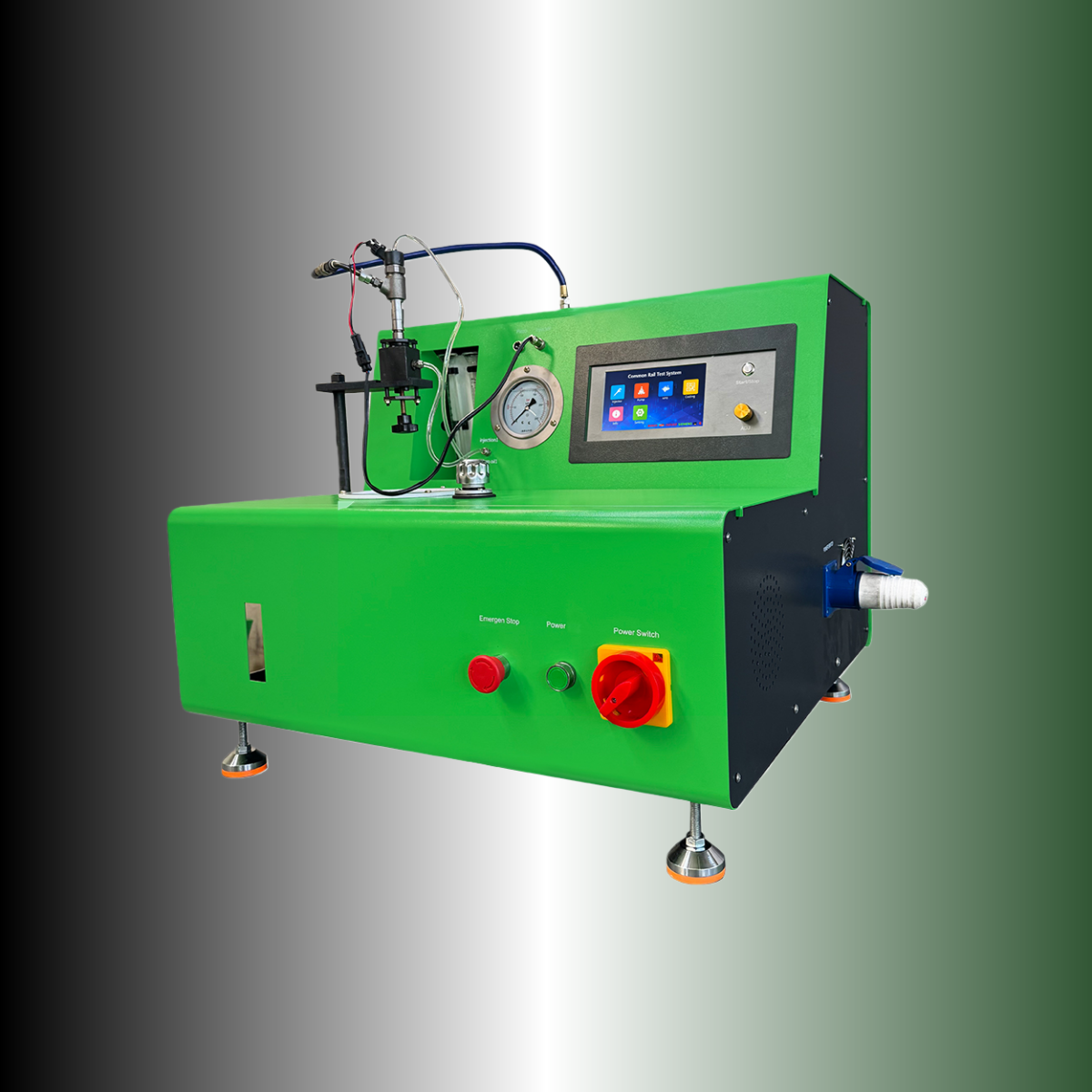

EPS106:
