LCR06 Handheld LCR Meter Injector L C R DCR Testing

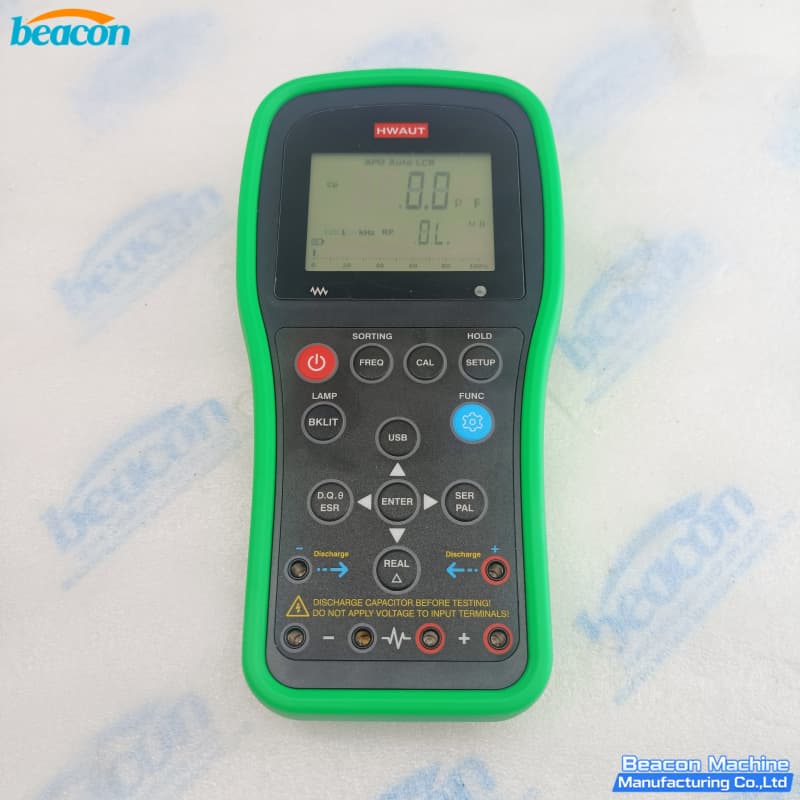

LCR06 is a handheld digital LCR meter designed by Beacon Machine for diesel injector electrical testing. It measures inductance L, capacitance C, resistance R and DC resistance DCR on common rail, EUI, EUP, HEUI and piezo injectors in a single compact instrument.

The meter automatically selects series or parallel equivalent mode based on the impedance threshold, supports five test frequencies from 100Hz to 100kHz, and provides basic accuracy of 0.5 percent for L and C plus 0.3 percent for resistance. Test ranges cover 20mH to 2000H inductance, 200pF to 20mF capacitance, and 20 ohm to 200M ohm resistance, covering the full impedance spectrum of solenoid coils, piezoelectric elements and resistor networks used on Bosch, Denso, Delphi, Cummins XPI injectors and Caterpillar C9 C12 plus Perkins actuator circuits.

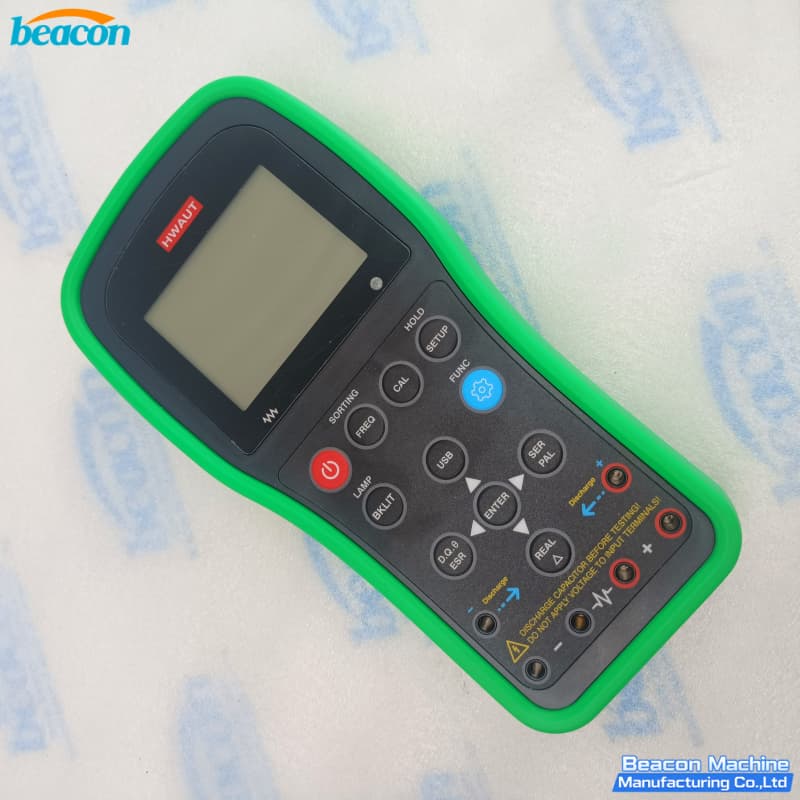

LCR06 is field-portable with four power supply options including 3.7V lithium battery, 9V alkaline battery, USB 5V and DC 9 to 12V. The 114 by 42 by 223mm compact body, open/short calibration, relative measurement and screening modes with sorting limits from 0.25 to 20 percent make it suitable for both workbench repair and production-line batch testing of rebuilt injectors.

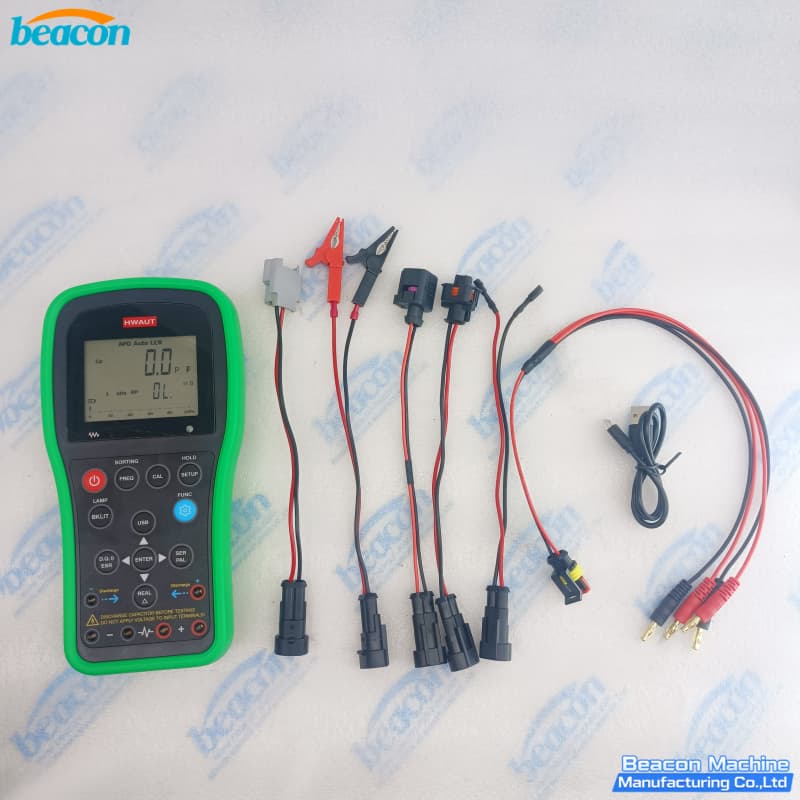

For workshop use, the meter is supplied with test leads and injector connectors, has auto-shutoff for long service shifts, and provides clear pass/fail decisions on injector coil quality.

LCR06 handheld LCR meter is the standard tool for diesel injector service shops, mobile truck repair vans, marine engine room diagnostics, and OEM production-line testing of EUI EUP HEUI common rail and piezo injectors.
