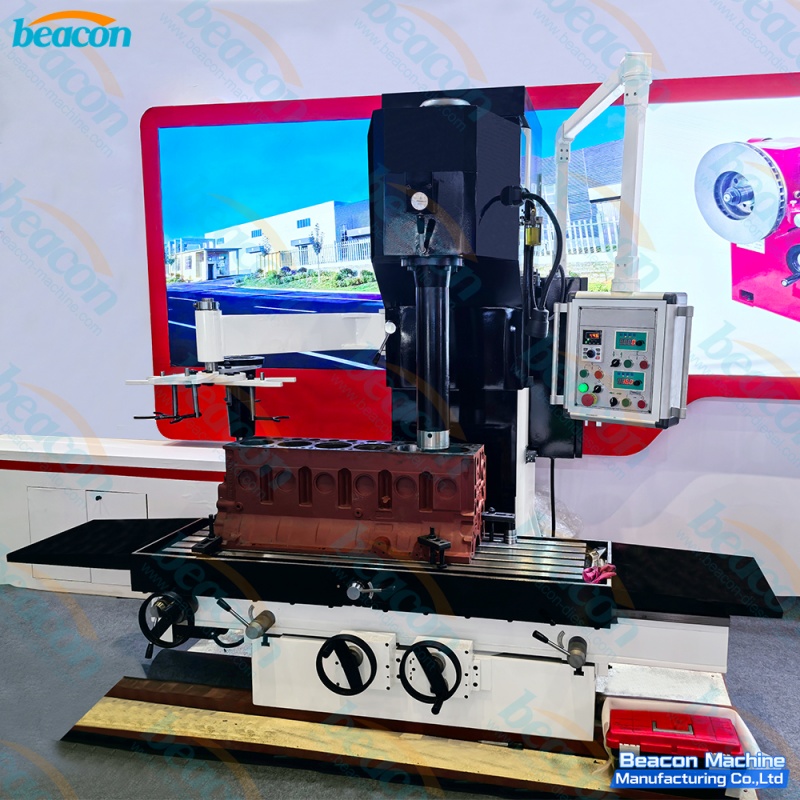

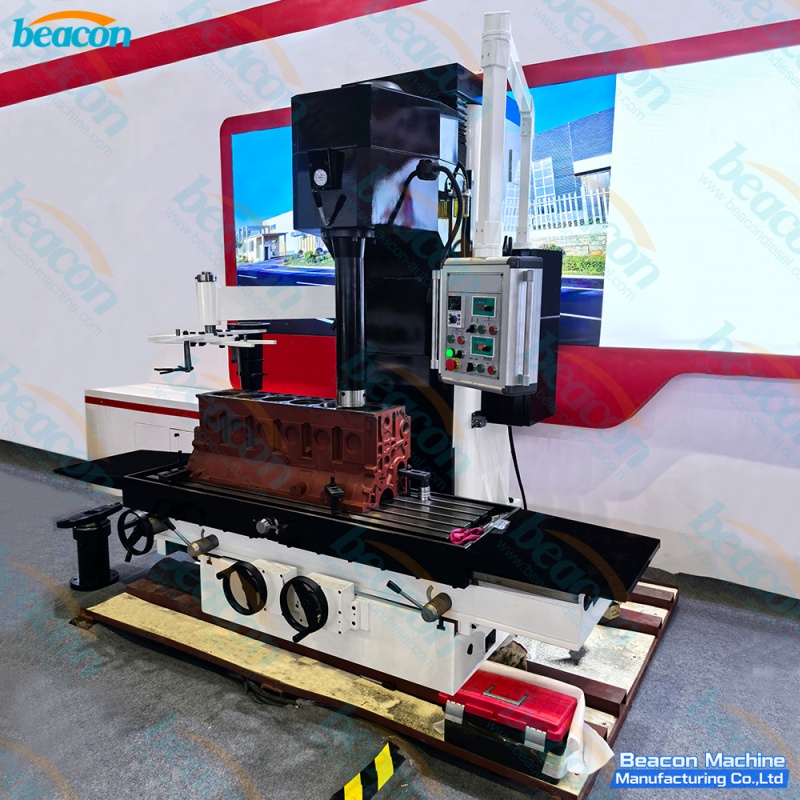

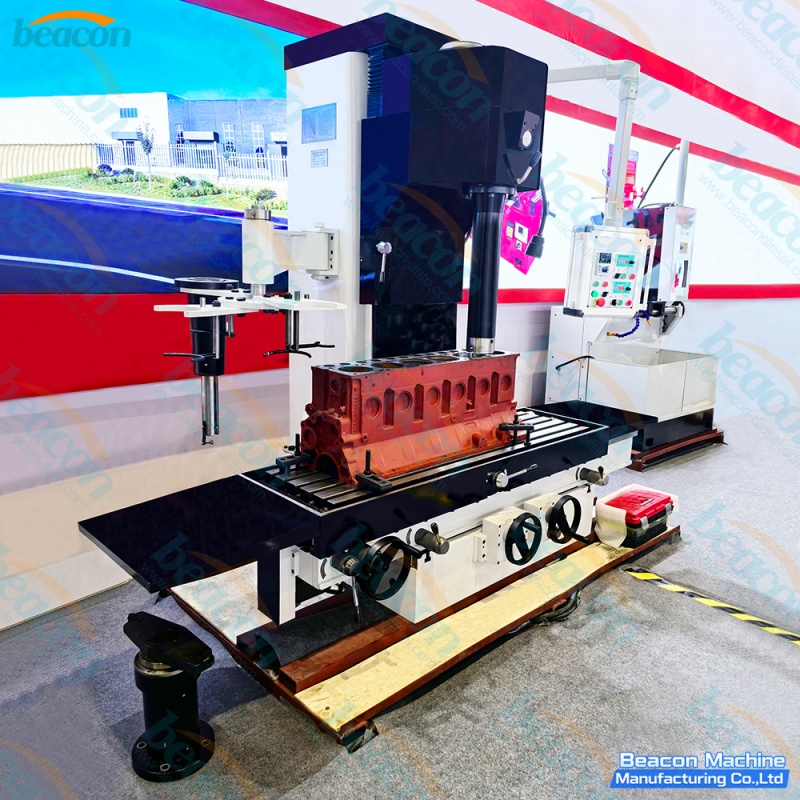

TX200 Vertical Cylinder Boring Machine High-Precision Engine Reconditioning for Heavy-Duty Blocks

The TX200 Cylinder Boring Machine is a robust, high-precision vertical boring solution specifically engineered for large-scale engine maintenance. It is primarily designed for boring cylinder holes and cylinder liner inner holes for internal-combustion engines found in heavy vehicles, tractors, and ships. With its versatile spindle speed and feed controls, it provides the accuracy required for demanding industrial engine reconditioning tasks.

• Heavy-Duty Application: Optimized for large and heavy engine blocks used in ships, tractors, and industrial vehicles.




• Infinitely Variable Control: Spindle rotation and feeding are infinitely variable, allowing for precise adjustment based on material and hole size.




• High Precision Tooling: Equipped with a tool setting gauge that enables more accurate boring values for superior surface finishes.




• Large Processing Capacity: Supports a wide processing diameter from 30mm to 200mm with a maximum boring depth of 550mm.




• Integrated Milling Capability: Features a maximum milling diameter of 350mm, providing added versatility for engine surfacing.




• Robust Stability: A massive 1680x500mm working table ensures stability when handling oversized workpieces.
