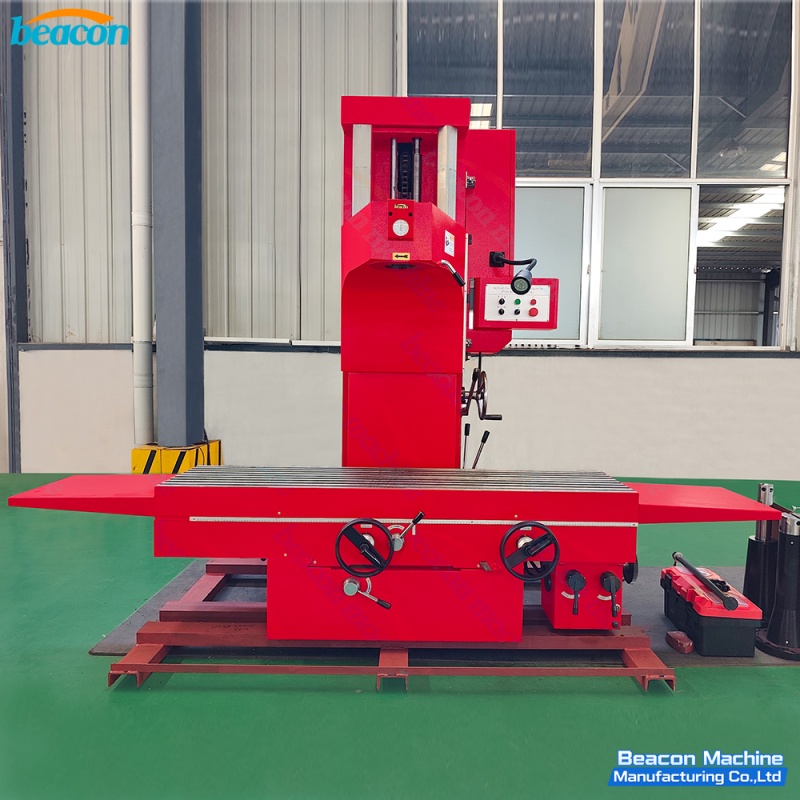

T8018D Vertical Cylinder Boring Machine Precision Engine Reconditioning for Heavy-Duty Blocks

The T8018D Cylinder Boring Machine is a robust vertical boring solution designed specifically for the maintenance and reconditioning of medium to heavy-duty internal combustion engines. This machine is widely utilized for boring cylinder holes and cylinder liner inner holes for vehicles, tractors, and heavy machinery. Thanks to its high-precision spindle and versatile feed system, it is also highly effective for fine boring inner holes of various other mechanical parts, making it a cornerstone for professional engine repair shops.

• Heavy-Duty Engine Focus: Optimized specifically for the structural demands of medium, large, and heavy engine blocks.

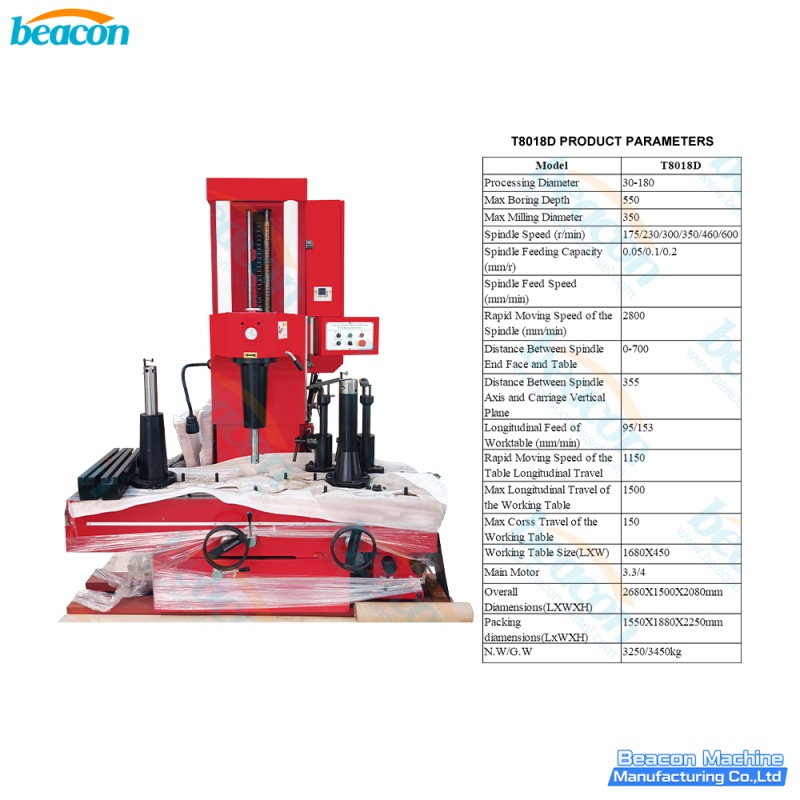

• Precision Boring Range: Supports a versatile boring diameter range from 30mm to 180mm with a maximum depth of 550mm.

• Integrated Milling Capability: Features a 350mm maximum milling diameter, allowing for both boring and surfacing operations.

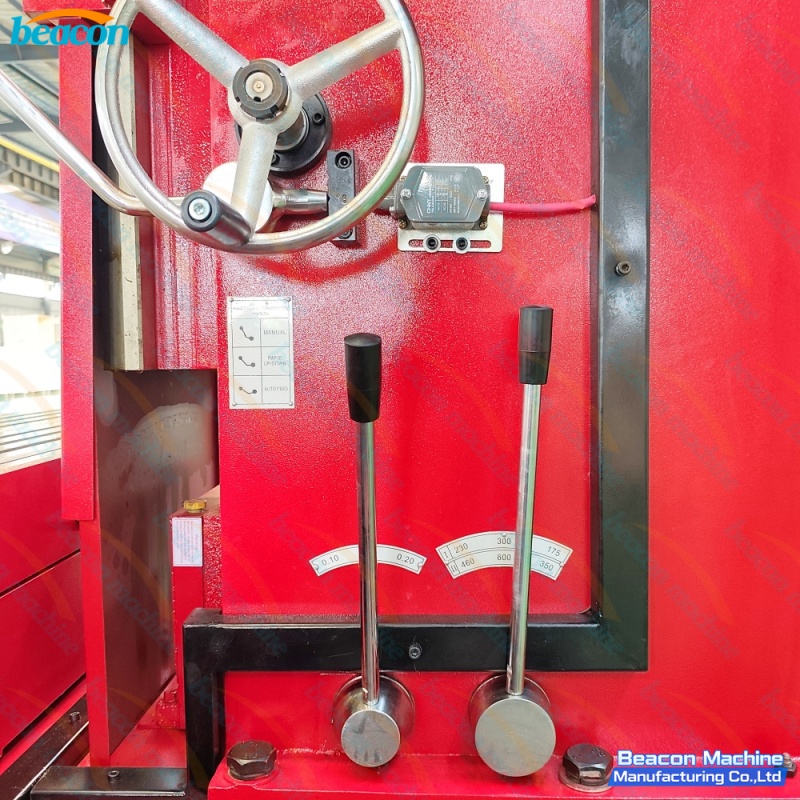

• Flexible Speed Control: Equipped with 6 spindle speeds ranging from 175 to 600 r/min and multiple feeding capacities (0.05 - 0.2 mm/r).

• High Operational Efficiency: Boasts rapid spindle movement (2800 mm/min) and table movement (1150 mm/min) to maximize productivity.

• Superior Stability: The large 1680x450 mm working table provides a stable platform for accurate processing of oversized workpieces.
