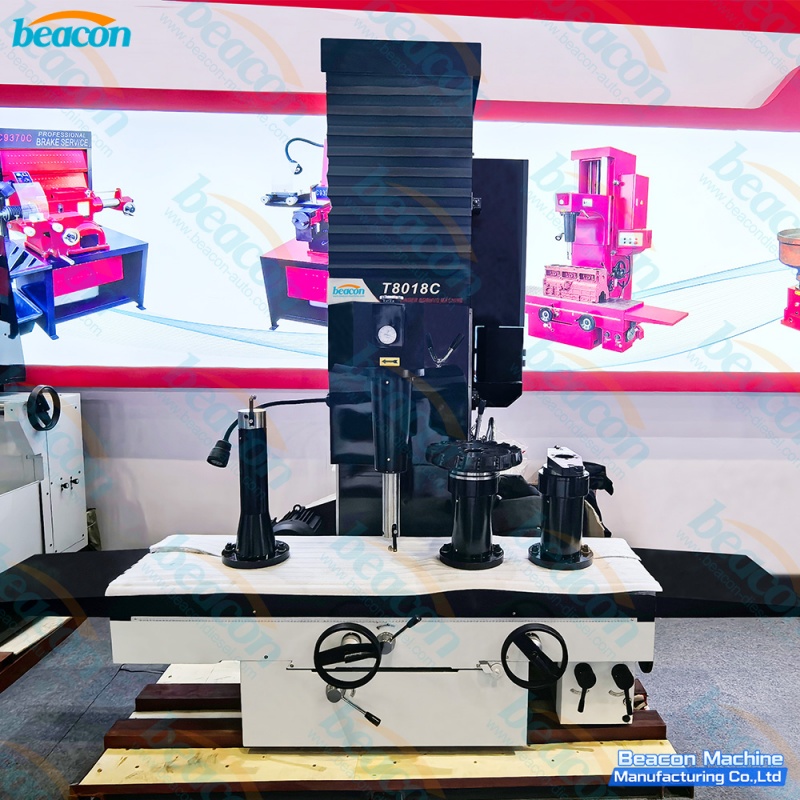

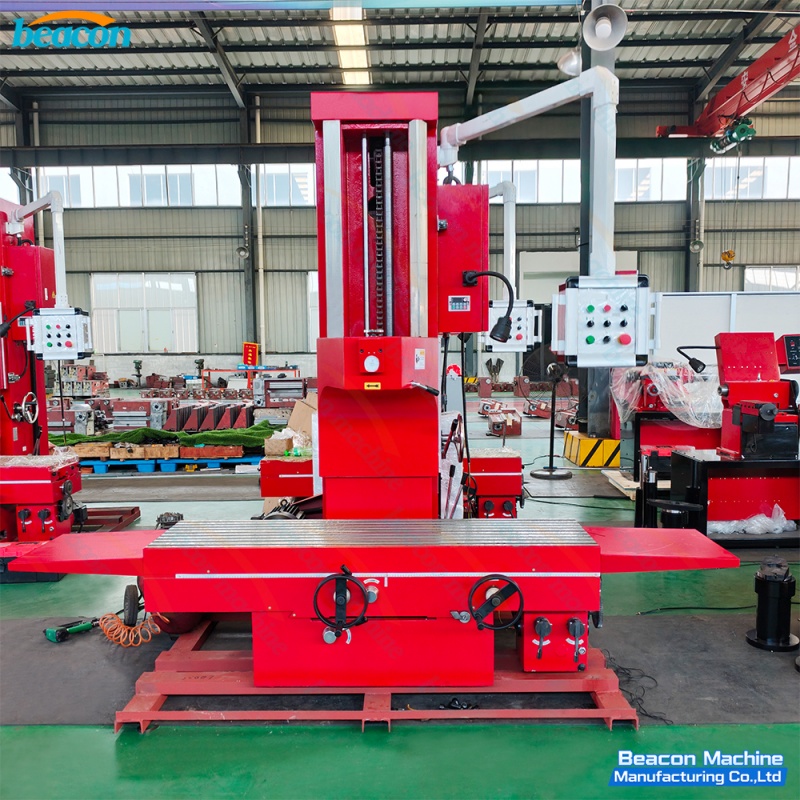

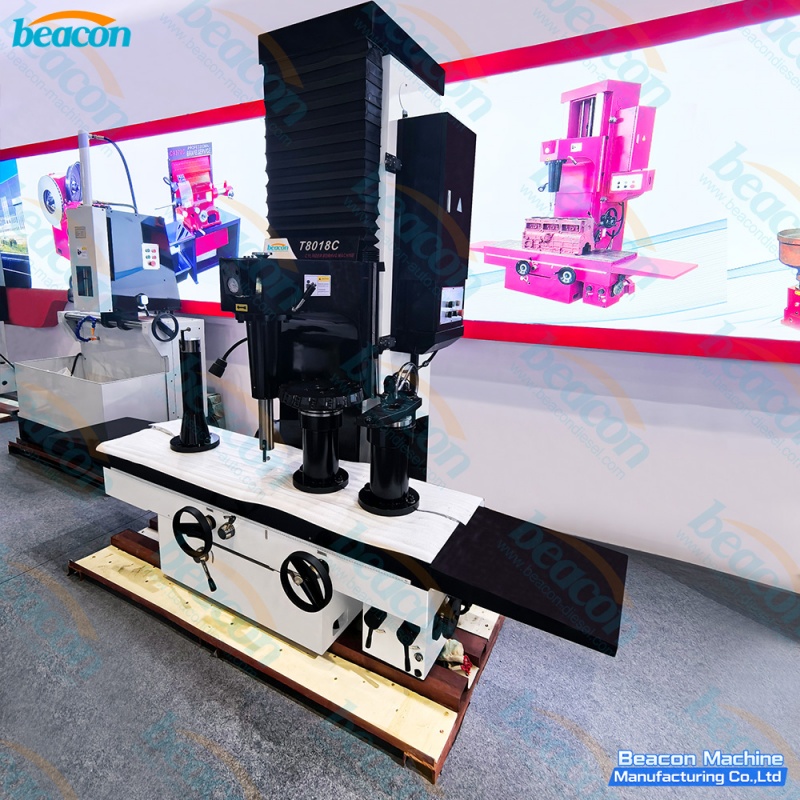

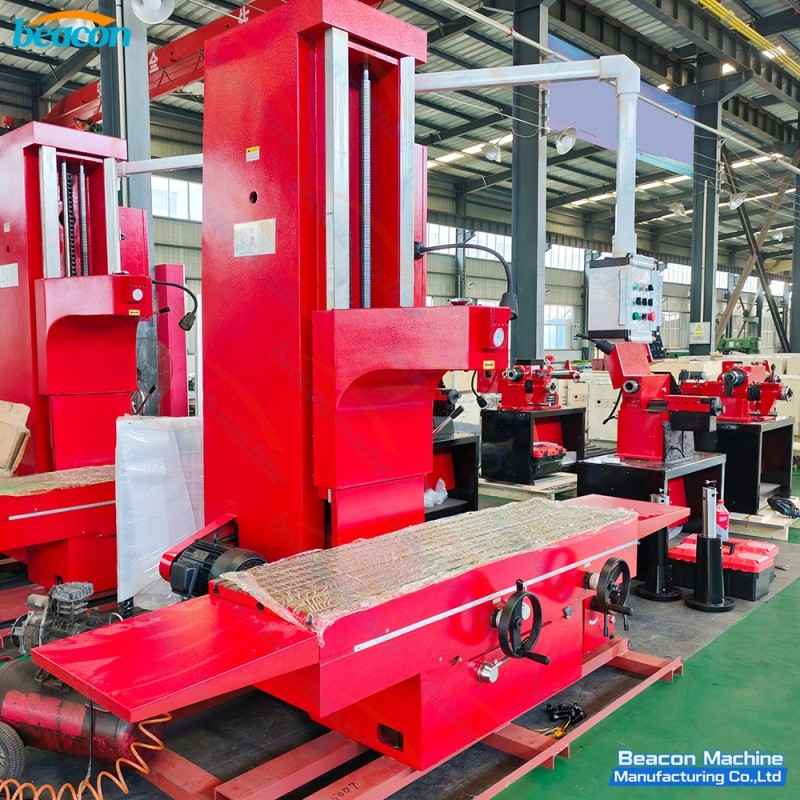

T8018C Heavy-Duty Cylinder Boring Machine Precision Boring & Milling for Large Engines

The T8018C Cylinder Boring Machine is a high-performance vertical boring solution specifically engineered for the maintenance and reconditioning of medium to heavy-duty internal combustion engines. It is primarily used for boring cylinder holes and cylinder liner inner holes for vehicles, tractors, and industrial machinery. Beyond automotive applications, its high-precision spindle and versatile feed system make it ideal for fine boring inner holes of various mechanical parts, providing a reliable solution for engine repair shops and manufacturing facilities.

• Heavy-Duty Capability: Specially optimized for medium, large, and heavy engine blocks with a robust structure.

• Wide Processing Range: Supports a broad boring diameter range from 30mm to 180mm, with a maximum boring depth of 650mm.

• Versatile Functionality: Not only excels at boring but also supports milling operations with a maximum milling diameter of 350mm.

• Multi-Speed Spindle: Features 6 spindle speeds (175 to 600 r/min) and multiple feeding capacities to suit different materials and precision requirements.

• High Efficiency: Equipped with rapid moving speeds for both the spindle (2800 mm/min) and the table (1150 mm/min) to reduce non-processing time.

• Stable Precision: Vertical design and large working table (1680x450 mm) ensure stability and accuracy for large workpieces.
