PT212 PT Pump Test Stand is a professional testing device designed for all types of Cummins engine PT pumps. It adopts advanced frequency converter speed control and automatic fuel temperature control system, equipped with high-precision flowmeters, gauges and control valves to simulate real engine working conditions. It can complete fuel pressure, flow, leakage, idle speed, high-speed actuation point and other parameter detection and adjustment, and supports testing of PT pumps with AFC (Air-fuel control unit) and ASA (Air signal attenuator). It is widely used in auto repair shops, pump maintenance factories and engine parts manufacturers to achieve fast and accurate PT pump detection and calibration.

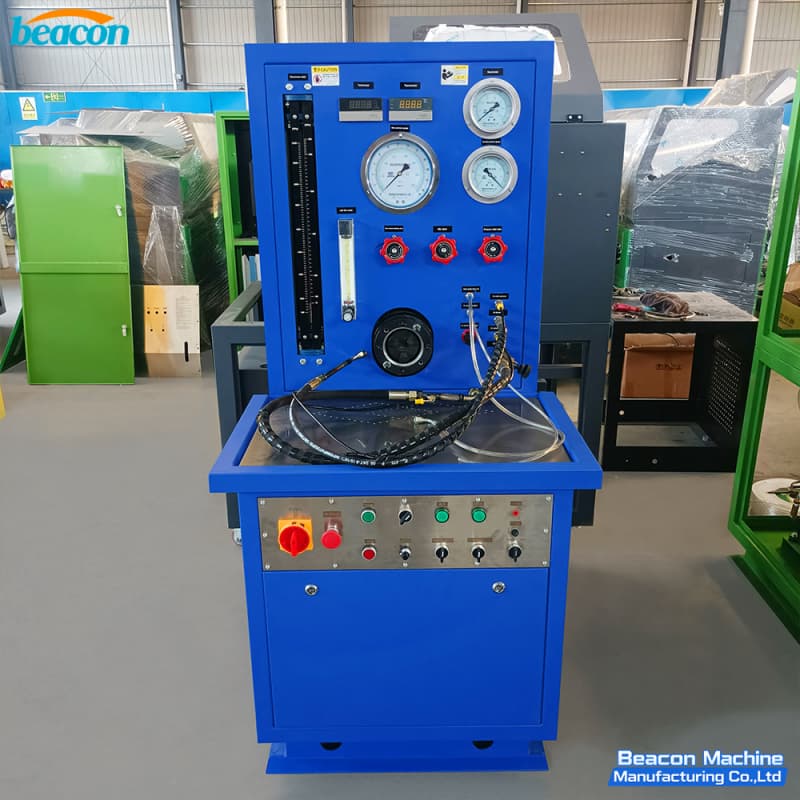

PT212 PT pump test stand for Cummins PT pump testing

PT212 PT Pump Test Stand Cummins PT Pump Testing & Calibration Machine Beacon Manufacturer Advantage

Professional for Cummins PT pump, covers AFC & ASA function test
0–3400 r/min stepless speed regulation, precision ±1 r/min
Automatic fuel temperature control, ensure stable test data
Dual-float main flowmeter, high measuring accuracy
Compact structure, easy operation and maintenance
Full parameters calibration in line with Cummins factory standards

parameter

Item	Specification
Model	PT212
Application	All Cummins engine PT pumps
Speed Range	0–3400 r/min
Main Flowmeter Range	75–1600 pound/h
Leakage Flowmeter Range	0–500 ml/min
Fuel Tank Volume	25 L
Overall Dimensions (L×W×H)	930×656×1780 mm
Net Weight	450 kg
Power Supply	380V AC
Functions	Flow, pressure, leakage, idle speed, AFC/ASA test
