PT101 Fixture Kit 3822732 Injector Travel Setting Tool for Diesel Fuel Injector Repair
Details

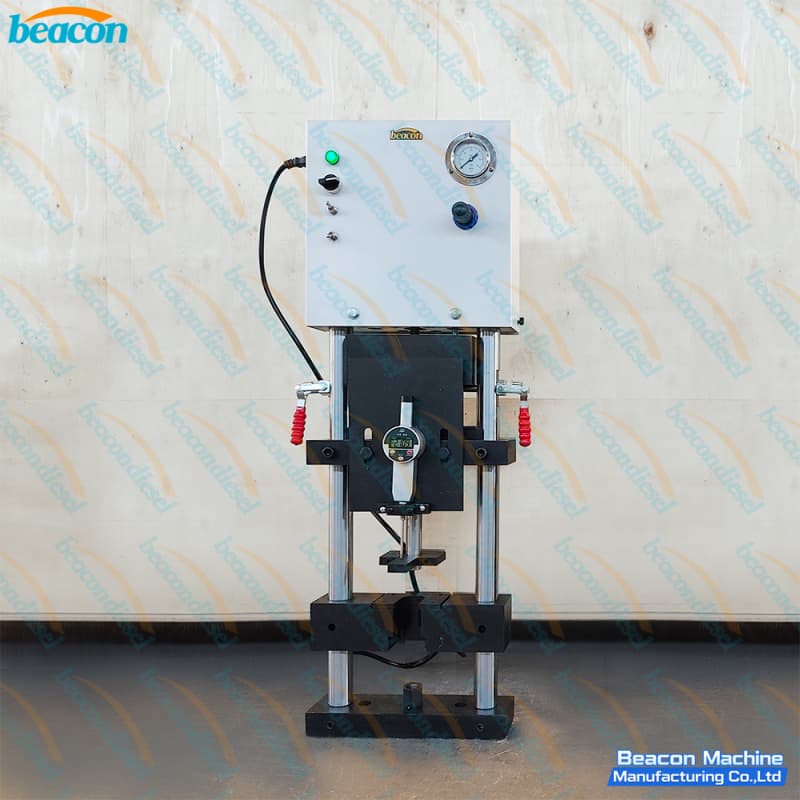

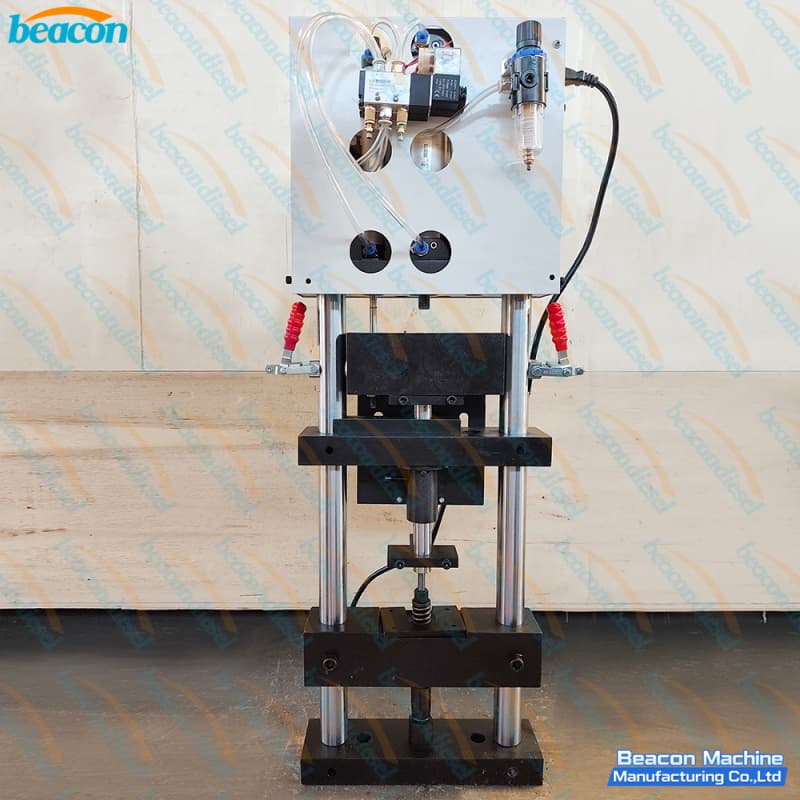

PT101 Top Stop Setting Fixture is a professional precision tool designed for setting plunger top stop travel and tappet total travel on PT (Type D), STC (HBT), and Hyperbar top stop injectors. It provides accurate adjustment within ±0.013mm tolerance and comes with a full set of adapters, clamps, indicators, and special tools. It is widely used in injector repair shops, engine service centers, and fuel system calibration workshops.
PT101 Fixture Kit 3822732 Injector Travel Setting Tool for Diesel Fuel Injector Repair Advantage
High precision setting: tolerance ±0.013 mm for accurate injector adjustment.
Wide compatibility: fits PT, STC, HBT, Hyperbar, L10, NT855 injectors.
Complete kit: includes fixture, indicator, adapters, clamps and special tools.
Pneumatic operation: stable 550kPa air supply for consistent performance.
Easy to use: clear control panel with RAISE/LOWER, LOAD/UNLOAD functions.
Professional design: suitable for factory and repair shop calibration work.
parameter
| Item | Specification |
|---|---|
| Model | PT101 |
| Part Number | 3822696 (Fixture), 3822732 (Kit) |
| Application | PT (Type D), STC (HBT), Hyperbar Top Stop Injectors |
| Setting Function | Plunger Top Stop Travel; Tappet Total Travel |
| Precision Tolerance | ±0.013 mm (0.0005 in) |
| Air Pressure | 550±20 kPa (80±3 psi) |
| Power Supply | 220V 50Hz (local voltage customizable) |
| Weight System | 20LB Dead Weight; 5LB / 25LB Load Mode |
| Kit Includes | Fixture, Indicator, Clamps, Adapters, Wrenches, Adjusting Tools |
| Brand | Beacon Machine |
