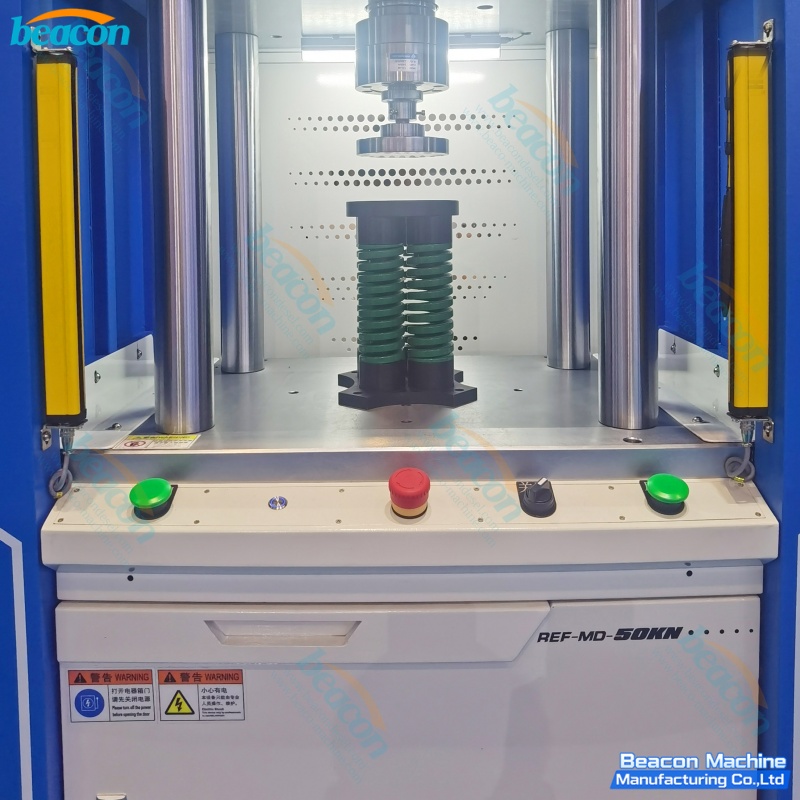

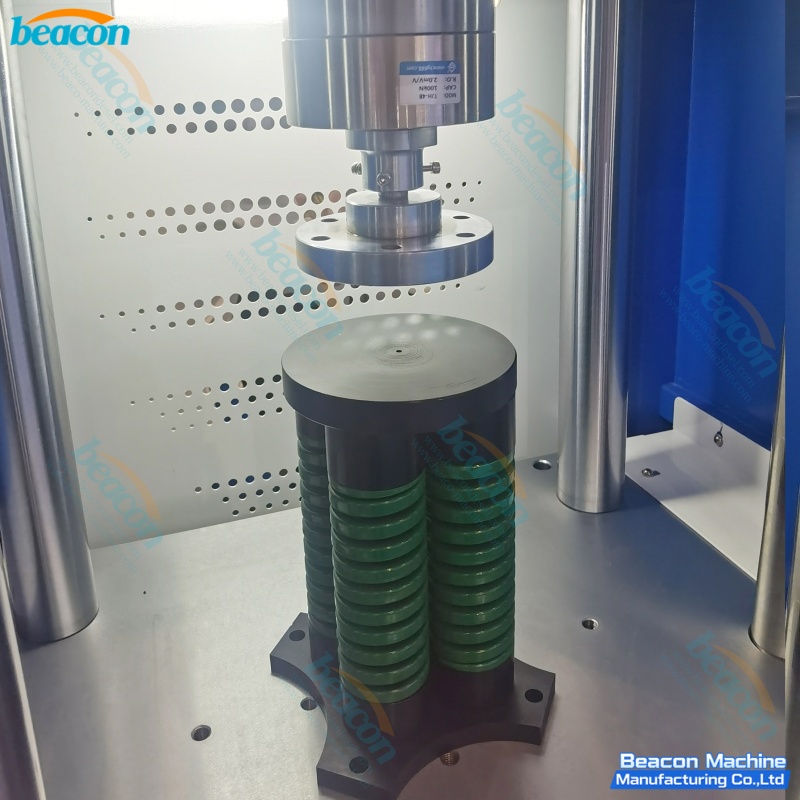

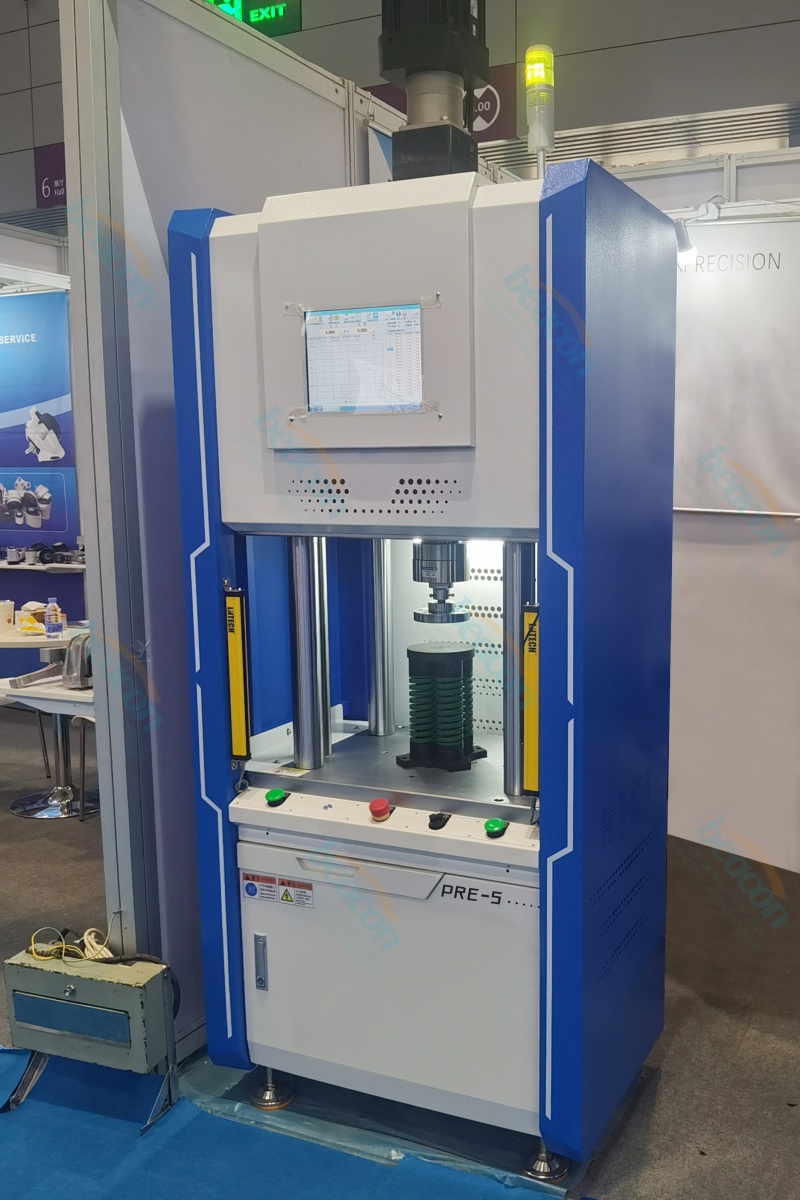

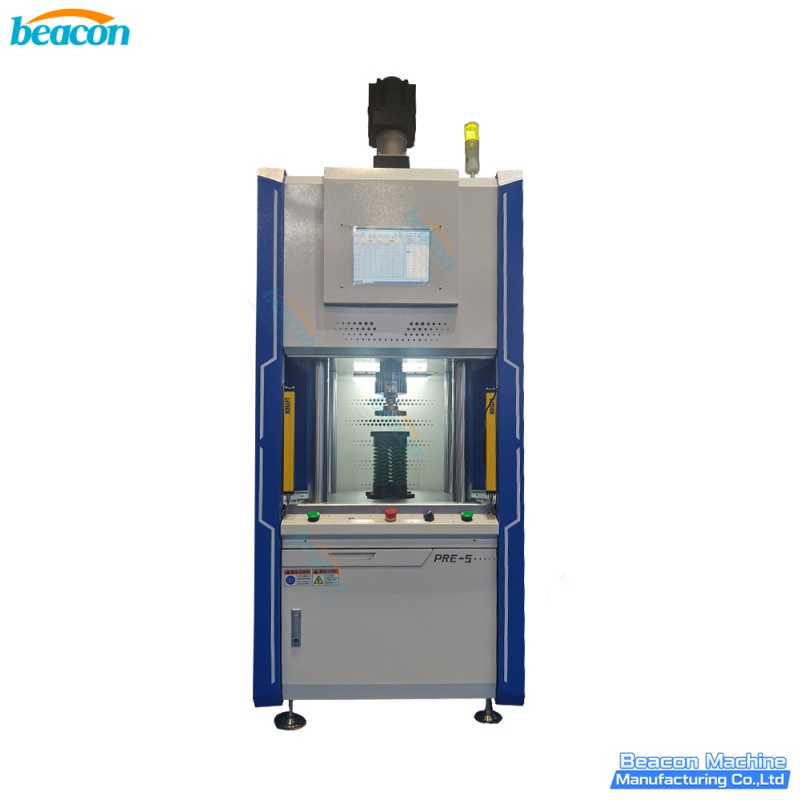

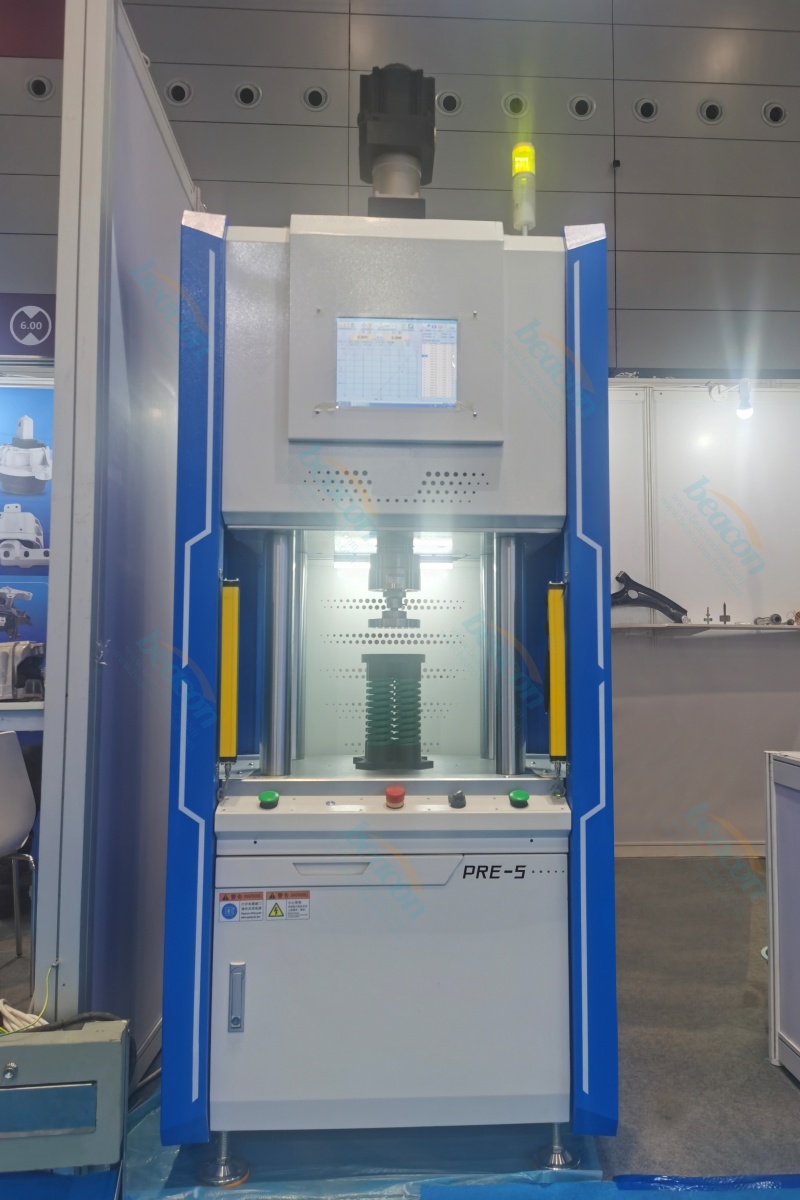

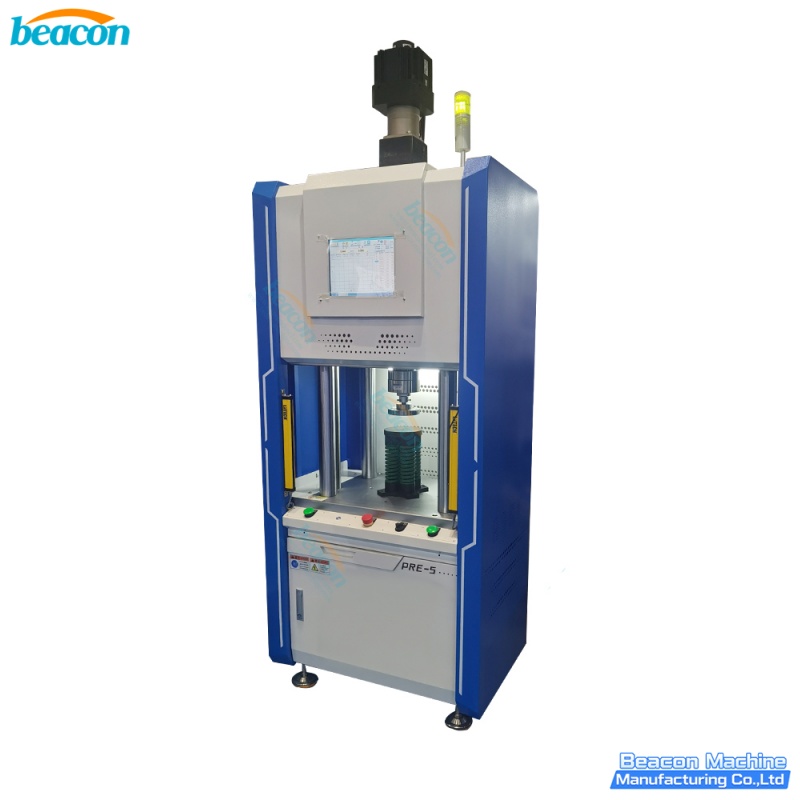

PRE-5 High-Precision 50kN Servo Press Machine 50KN for Industrial Assembly
Details
The PRE-5 is a high-precision servo press-fitting equipment designed for industries like electronics, automotive, and medical. It features full closed-loop control of force and displacement, supporting complex processes such as riveting, pressing, and forming. With an integrated 12-inch touch screen and advanced monitoring software, it ensures 100% quality control through real-time trajectory analysis.
PRE-5 High-Precision 50kN Servo Press Machine 50KN for Industrial Assembly Advantage
Real-time Monitoring: Full trajectory monitoring (Force vs. Displacement) with OK/NG determination to prevent defects.
Data Intelligence: Stores over 2 million data points; supports Excel/XML export and MES system integration.
Versatile Modes: Supports manual adjustment, automatic production, and performance test modes.
Fast Recipe Change: Store up to 10,000 product formulas; quick model changeover in under 15 minutes.
Enhanced Safety: Equipped with safety light curtains, two-hand start buttons, and protective covers.
Global Components: Utilizes premium brands like Panasonic/Yaskawa motors and Schneider electrics.
parameter
| Description | Specification |
|---|---|
| Model | RXEF-MD-50KN |
| Maximum Pressure | 50kN |
| Pressure Range | 500N - 50kN |
| Positioning Accuracy | ±0.01mm |
| Pressure Accuracy | ±0.5% |
| Maximum Stroke | 200mm |
| Pressing Speed | 0.01 - 35mm/s |
| No-load Speed | 100mm/s |
| Displacement Resolution | 0.001mm |
| Power Supply | AC380V 50HZ / 5KW |
| Equipment Dimensions | ≈875*600*2405mm |
| Equipment Weight | ≈750kg |
