CRI325 Dual-Channel Common Rail Injector Tester for Bosch Denso Delphi CAT Piezo

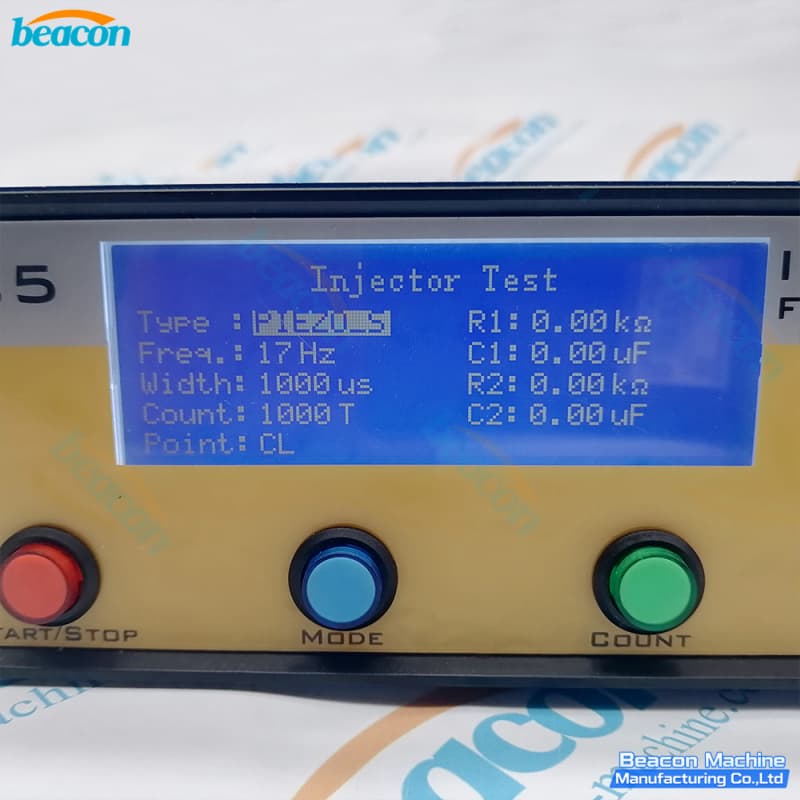

The CRI325 is a high-performance, dual-channel common rail injector tester designed for professional diesel repair. It features a 4-inch high-definition LCD screen that displays multiple parameters simultaneously for intuitive operation. This versatile tool supports a wide range of injectors, including BOSCH, DENSO, DELPHI, CAT, and Piezoelectric types. Beyond standard driving, it performs advanced diagnostics such as AHE measurement, insulation testing, and Siemens valve air gap measurement.

• Dual-Channel Efficiency: Capable of driving two injector channels at the same time for faster diagnostics.




• Comprehensive Compatibility: Supports electromagnetic coil injectors (Bosch 110/120, Delphi, CAT) and Piezoelectric injectors (Siemens, Denso).




• Advanced Diagnostics: Measures resistance and inductance for coil injectors, and resistance and capacitance for piezo injectors.




• Versatile Working Modes: Pre-set conditions for VL (Full load), TL (High speed), LL (Idle), and more, plus user-defined settings.




• High-Precision Measurement: Integrated support for AHE stroke measurement and high-voltage insulation testing (up to 1000V).




• Wide Voltage/Current Range: Adjustable boost voltage from 30-175V and boost current up to 25A for various injector requirements.
