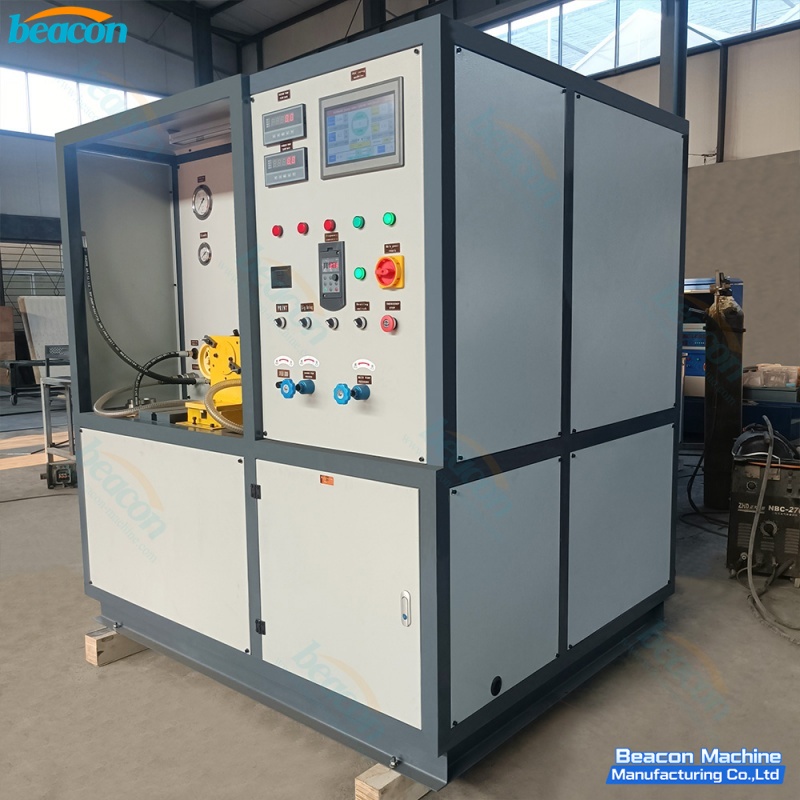

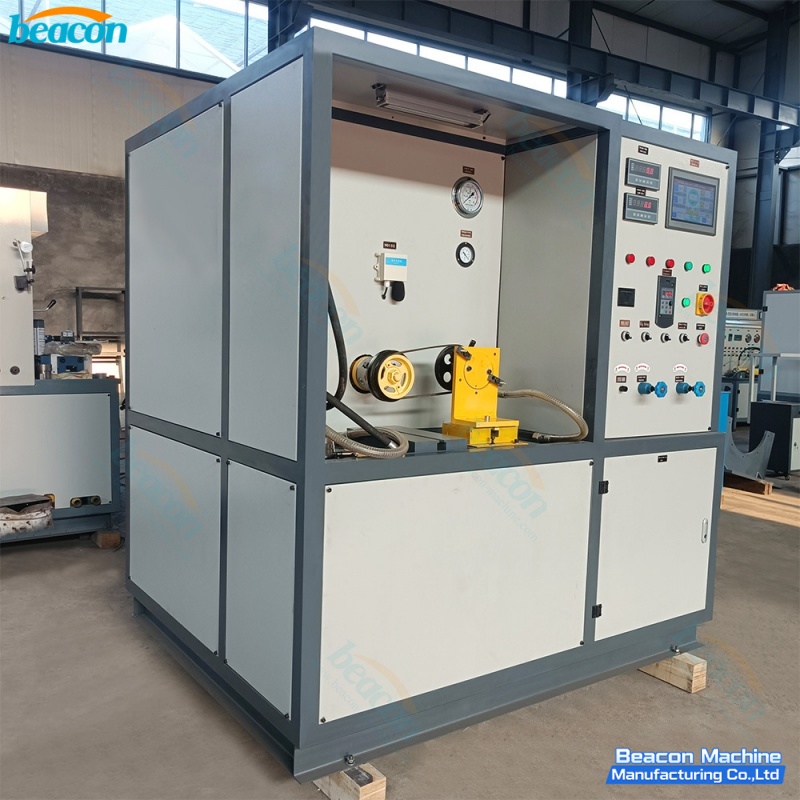

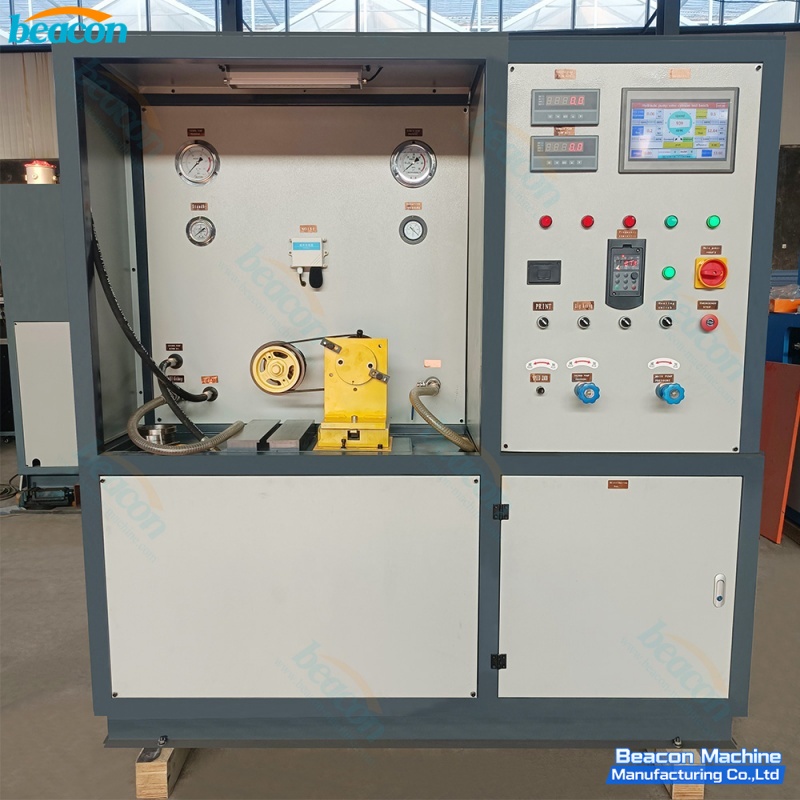

BP-A1 Hydraulic Steering Booster Pump Test Bench Professional Automotive Power Steering Pump Tester

The Hydraulic Steering Booster Pump Test Bench is a specialized diagnostic system designed to replicate the actual working conditions of a vehicle. It provides maintenance professionals with a precise environment to evaluate, judge, and repair the operational status of hydraulic steering pumps. Powered by a 7.5KW motor with frequency conversion speed regulation , the bench supports both forward and reverse rotation testing. By comparing real-time performance data—such as pressure, flow, and torque—against original factory parameters, technicians can quickly identify pump malfunctions.

• High-Precision Simulation: Mimics real-world automotive conditions for accurate diagnostics and maintenance.

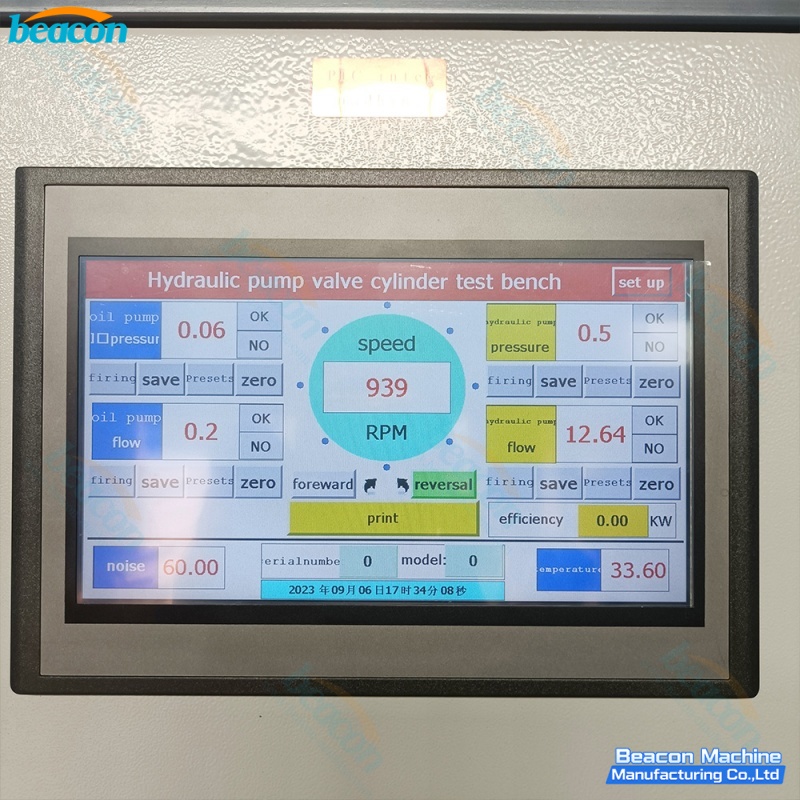

• Advanced Display System: Integrated computer screen displays rotation speed, flow rate, mechanical efficiency, noise, and pressure.




• Flexible Loading: Utilizes a fully automatic ESC proportional valve for loading up to 30MPa.

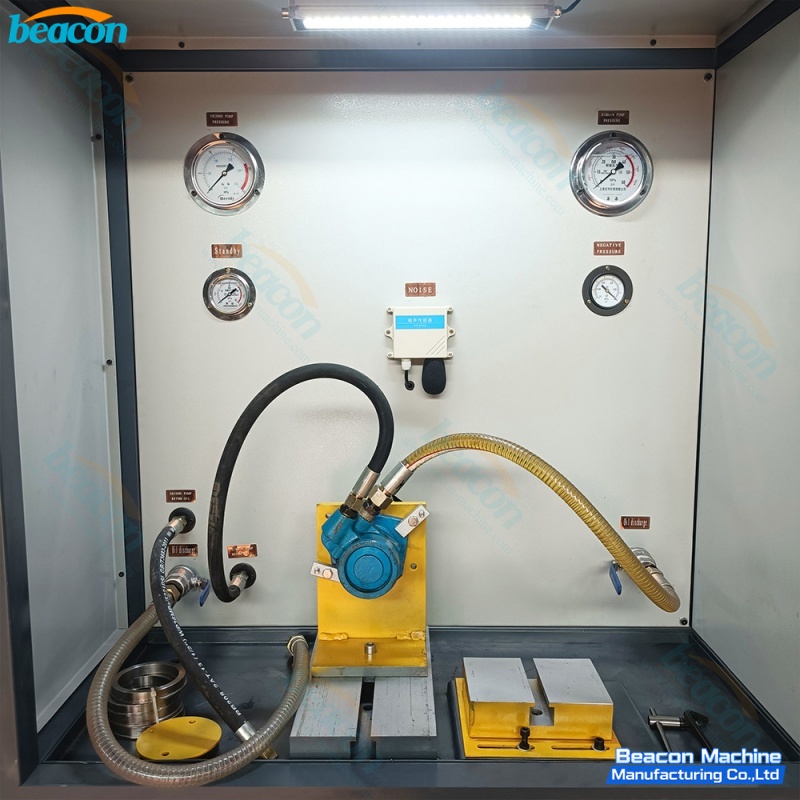

• Comprehensive Monitoring: Includes torque sensors, noise sensors, and dual pressure displays (computer and shock-resistant gauge).




• Reliable Filtration: Equipped with an 80µm inlet filter and 30µm return filter to ensure oil purity during testing.




• Safety Oriented: Features an emergency stop button, air-cooled/heating controls, and overload protection to safeguard operators and equipment.
