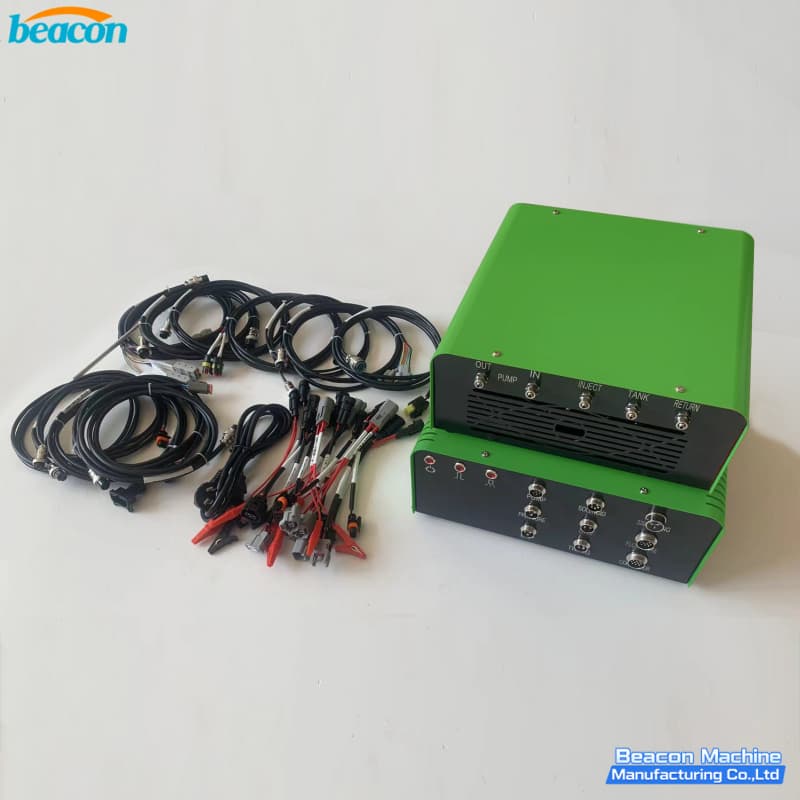

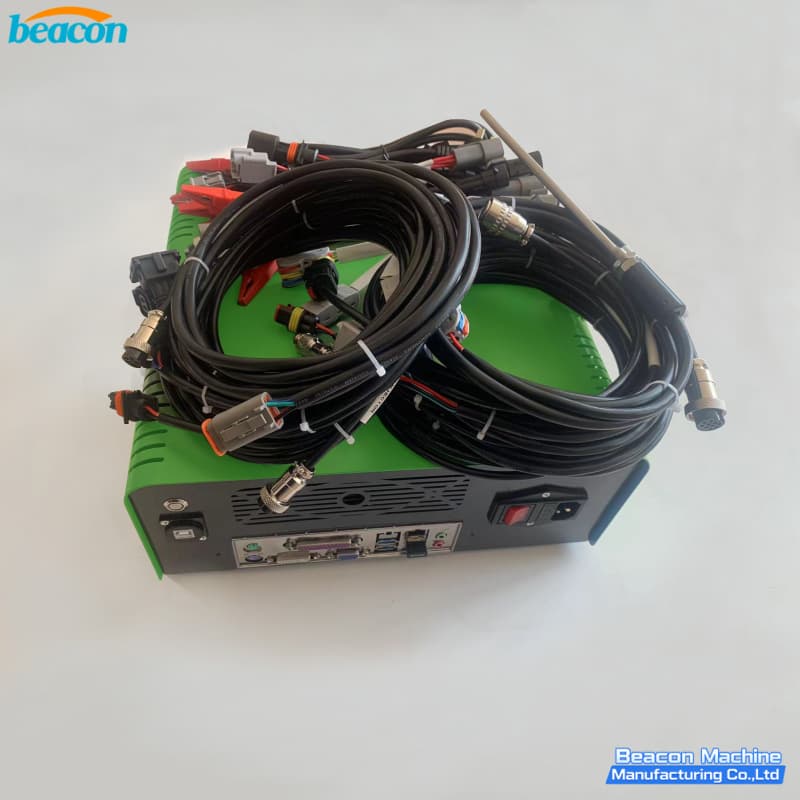

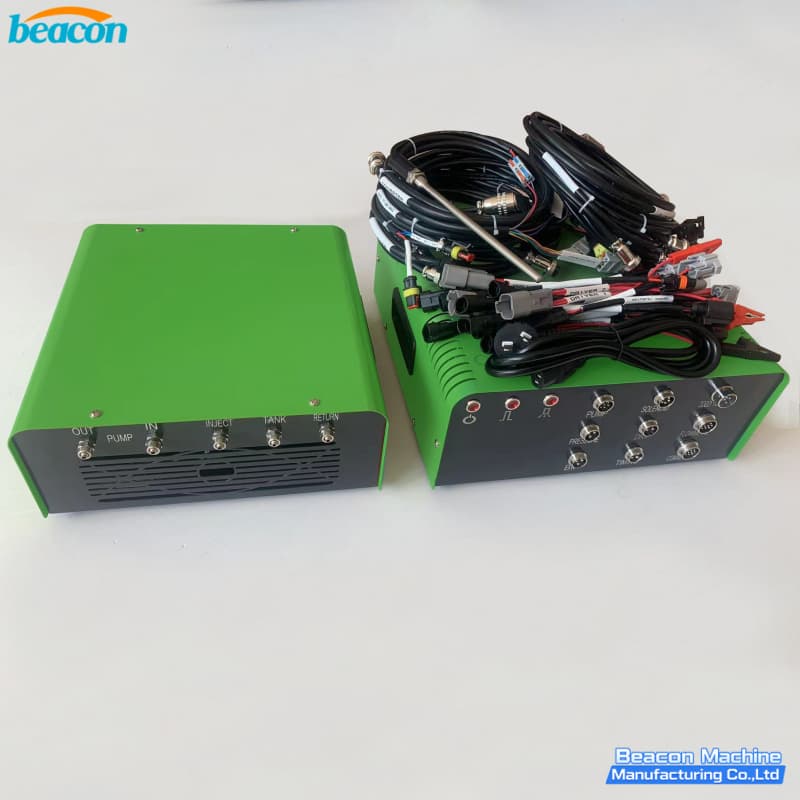

BEI-C Diesel System Multifunctional Tester Common Rail Injector and Pump Test Bench with Coding
Details
The BEI-C Diesel System Multifunctional Tester is a high-precision diagnostic platform designed for modern diesel fuel injection systems. It supports a comprehensive range of components, including solenoid and piezo injectors, high-pressure pumps (with dual ZME metering units), and EUI/EUP/HEUI systems. With built-in original factory test plans, it provides professional-grade testing for global brands like Bosch, Caterpillar, and Cummins
BEI-C Diesel System Multifunctional Tester Common Rail Injector and Pump Test Bench with Coding Advantage
Universal Compatibility: Supports Bosch, Delphi, Denso, Siemens, Caterpillar, and Cummins injectors and pumps.
Advanced Coding Support: Generates codes for Bosch IQA/IMA, Denso QR (16-32 digits), Delphi I2C/I3C, and Siemens IIC.
Multi-System Testing: Capable of testing EUI/EUP, HEUI, VP37/VP44, and Cummins HPI/PT systems.
Precision Measurement: Includes specialized tests for Injector Response Time (BIP), Armature Lift (AHE), Resistance, and Inductance.
Reliable Data: Test plans are consistent with original equipment manufacturer (OEM) data for maximum accuracy.
Dual ZME Support: Specifically designed to handle high-pressure pumps equipped with two ZME metering units.
parameter
| Feature / Model | BEI-C Specifications |
|---|---|
| Support Injector Types | Solenoid & Piezo (Bosch, Denso, Delphi, Siemens, CAT, Cummins) |
| Coding Functions | Bosch IMA/IQA, Denso QR, Delphi I2C/I3C, Siemens IIC, Cummins XPI |
| Pump Support | Common Rail Pumps (Dual ZME), VP37, VP44, RED4, Denso V3/V4/V5 |
| Unit Injector Systems | EUI/EUP (including Delphi E3 & Cummins M11), HEUI, HPI |
| Specialized Testing | Response Time (BIP), Armature Lift (AHE), Resistance, Inductance |
| Test Standards | Consistent with Original Factory Data & Standards |
| Software Version | Multifunctional Digital Control System V2.1 |
